Home LED Light Products Chinse Supper P10 Outdoor LED Display (Single White)

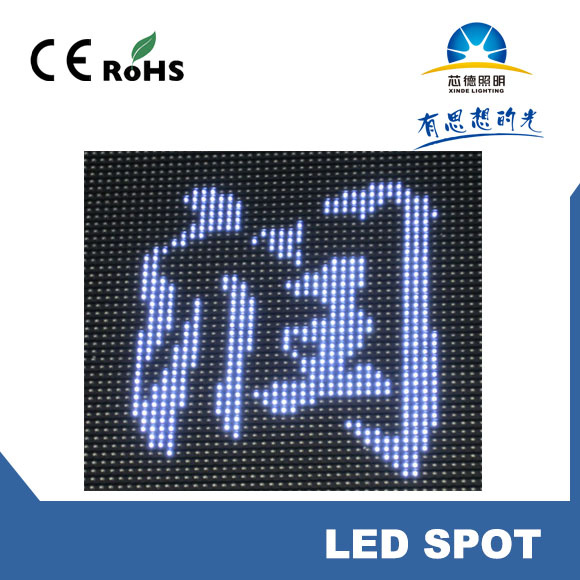

Chinse Supper P10 Outdoor LED Display (Single White)

Chinse Supper P10 Outdoor LED Display (Single White)
Price: US $ 6/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 3/Square Meter
Pay Type: L/C,T/T,Western Union
We are the manufacturer of LED display, including outdoor video LED display, outdoor text LED display, indoor video LED display, indoor text LED display, LED cross sign, taxi ad, LED module, etc.

For P10 outdoor single white LED module, it is very hot in Middle East market. Most people purchase a bulk to assemble by themselves. The product is very mature now, and we have exported many to India, Iran, Turkey, etc.

Besides P10 outdoor single white LED module, we also make other colors, like single red, single green, single blue, single yellow. This is a serial product.

Our goal is to help our customers get great success in his market, and to establish a long cooperation with them. Good quality and reasonable price is provided.

Any demand, please kindly contact us.

Thanks for your time and attention.
Numbers Technical indexes Specification
1 Pixel pitch 10mm
2 Module size 320mm×160mm
3 Module resolution 32×16
4 Module density 10,000dots/sqm
5 Pixel configuration 1W
6 Red wavelength 625±2nm
9 Colors 1024
10 Best viewing distance more than 10 m
11 Horizontal viewing angle 110°
12 Vertical viewing angle 70°
13 Maximum power consumption 350W/m2
14 Brightness ≥4000cd/m2
15 Gray scale 16bits of per color
16 Color temperature 6500K
17 Control method Asynchronization
18 Driving method 1/4 scan constant voltage
19 Frame frequency 60Hz
20 Refresh frequency ≥200 Hz
21 Working voltage AC220V/110V±10%
22 IP grade IP65
23 Working temperature -20°C~80°C
24 MTBF More than 10,000 hours
25 Life span More than 100,000hours

Prod Model: XD-p10-W-1
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Tube Chip Color: Single Color
IP Rating: IP65
Pixel Pitch: 10mm
Display Function: Video Display
Scanning Mode: 1/4 Scan
Certification: RoHS
Pixel Density: 10000 dot / m²
Average Power Consumption: 350W / m²
Pixel Configuration: 1W
Foshan Xinde Photoelectric Co., Ltd. is the first joint venture high-tech enterprises in Shandong core optical Garden Co., Ltd., professional committed to serving in the field of LED light source and application of products, we have a strong R & D department and experienced technicians canbased on customer ideas and model design and production services.

The company has offices, research and modern production plant, the introduction of automatic production lines, spectral analysis systems, professional equipment colorimeter; Strict quality management system, product categories cover a variety of specifications, widely used in outdoor urban lighting, building buildings, advertising, engineering, indoor home, hotels, entertainment venues and other decorative lighting.

Companies to adhere to "people-oriented, open up innovation" business philosophy, adhere to customer demand for the highest requirements, adhere to the product quality, technology-leading and innovative, market-oriented, technology-driven innovation as the core, the quality of life. Continuously improve products, improve the technological level, persist in doing a better brand of LED lighting, the intentions of service to every customer.
