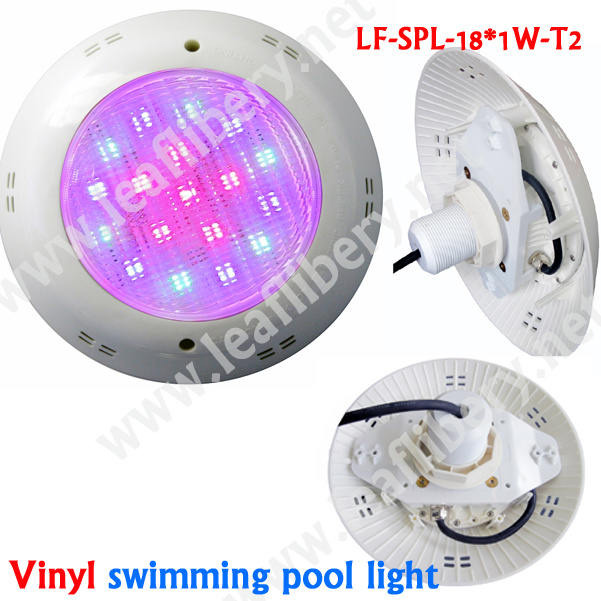

led underwater pool light fiberglass lights
l IP68 Structure water proof ( private tooling & patented product), unique internal design, good at waterproof and anti-corrosion.
l RGB synchronization with patented RGB controller
l Size: 1) 290(diameter) * 137.7(height) mm
LF-P56M-18X3W-T3(RGB 3 IN 1 LED)/LF-P56M-18X1W-T3/LF-P56M-105S5-T3
LF-P56M-252D5-T3/LF-P56M-315D5-T3/ LF-P56M-20X1W-T3(SMD5730)
2) 250(diameter) * 118.5(height) mm
LF-P56M-12W-T3(SMD5730)/ LF-P56M-12W-T3(SMD5050)
l Thermal plastic body & pc cover, easy to install and excellent performance on heat dissipation.
l Constant driver to make sure LED light working stably, avoid any flashing and noisy
l Voltage:AC/DC 12V, Frequency: 50/60HZ
l High quality and brightness LED source.
l Projection distance: 5-6 meter
l Color: Single color - white, red, green, blue, yellow
l Color: RGB, 14 kinds of color changing
l 6 kinds of RGB control mode: Remote control, WIFI control, DMX 512 control,
External control, Remote & switch remote control, Automatic control
l Beam angle:SMD5050/3528/5730-120°, high power-15°25°/30°/45°/60°
l Life span 30000 hours
l Overcurrent protection
Specification | Parameters |
Model No. | LF-P56M-18*1W-T3 | LF-P56M-18*3W-T3 (RGB 3 IN 1 LED) |
LED Qty | 18 pcs 1W High Power | 18 pcs 3W(RGB 3 IN 1) High Power |
Input Voltage | AC/DC 12-13V | AC/DC 12-13V |
Frequency | 50/60 Hz | 50/60 Hz |
Power | 18±1w (RGB) 14±1w (R) 18±1w (G) 18±1w (B) 19±1w (white) | 25±1.5w(RGB) |
Color Temperature | w.w.3000-3500K p.w.6000-7000K c.w.8000-10000K | RGB only |
Luminous Flux | P.W. 1200Lm±10% W.W. 1100Lm±10% C.W. 1000 Lm±10% 400Lm±10%Lm (R) 750±10%Lm (G) 180±10%Lm (B) RGB: 430±10%Lm | 880±10%Lm (RGB) |
Color Rendering Index(CRI) | P.W. Ra≥70 | RGB only |
Wave Length | R/G/B: 620-630/515-525/ 460-470 nm | R/G/B: 620-630/515-525/ 460-470 nm |
Beam angle | 30°/45°/60° | 30°/45°/60° |
Dimension | 290*150.6mm | 290*150.6mm |
Working temperature | 0~40ºC | 0~40ºC |
Storage Temperature | 0~50 ºC | 0~50 ºC |
Constant driver | yes | yes |
IP rating | IP68 | IP68 |
