China LED Display Outdoor

China LED Display Outdoor
Price: US $ 1000/Square Meter
Trade Terms: FOB,EXW
Min Order: 1/Square Meter
Pay Type: T/T,Western Union

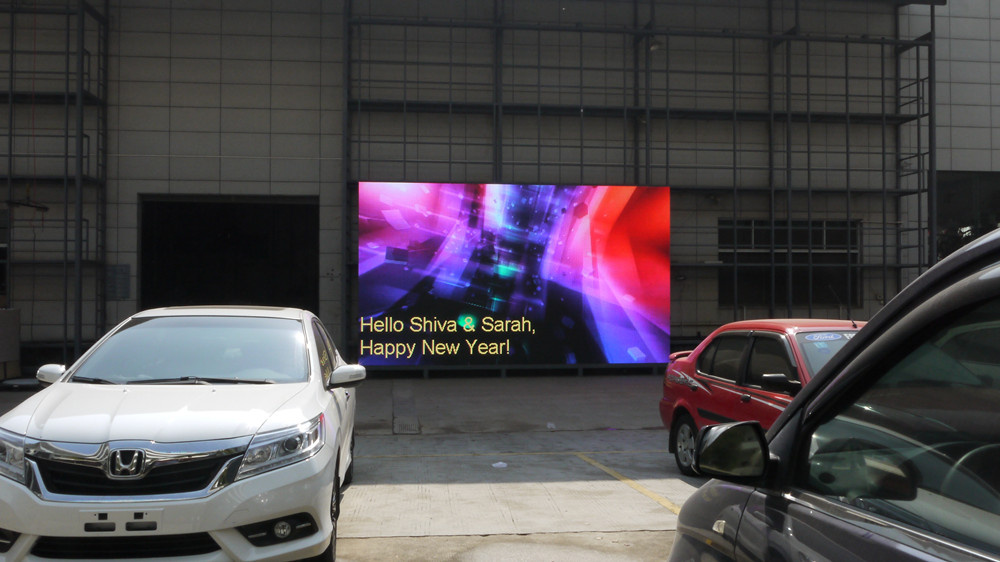

Professional Factory Outdoor LED Display for Advertising

We produce one color LED display/ two color LED display/ full color LED display/ LED display used indoor/ LED display used outdoor/ LED display used for text and graphic/ LED display used for video.

Other
- The chips are 14mil LED display special chips, and they are antistatic for over 5000V.
- The copper brackets and silica gel have high quality, and they are electric, heat-dissipated, and anti-ultraviolet ray.
- Professional spectral and color separation standard have ensured the coherency of the display's color.
- The materials of PCB accord with the standards of UL certification, and the copper on them are over one ounce.
- All connectors are phosphor copper, and they are plating for 2μ , so they are acid-resistant and alkaline-resistant.
- The display is accordant with RoHS standards.
number Item name Parameter and index
unit module
1 LED encapsulation mode φ 4oval DIP
2 Horizontal axis 120°
3 Vertical axis 60°
4 Pixel composition 1R1G1B
5 Pixel pitch 16mm
6 Scan method 1/2
7 Drive method Constant current
8 Module resolution 16× 8pixels
9 Module dimensions 256mm× 128mm
10 Module type incorporated lamp and drive
11 Module working voltage +5V
12 Module average power 5W
13 Module maximum power 20W
14 Module shell material PC
15 Module mask material PC
unit cabinet
1 Module layout 4× 6 pieces
2 Cabinet resolution 64× 48 pixels
3 Cabinet maximum power 600W
4 Cabinet average power 150W
5 Cabinet dimension 1024mm× 768mm
6 Cabinet material steel/aluminum alloy
7 Cabinet color black/gray
8 Protection grade (front/back) IP65/IP54
Entire screen
1 Application environment outdoor
2 Brightness > 8000 cd/m²
3 White balance coordinates X=0.29, Y=0.31
4 contrast 64000: 1
5 Color temperature 8000K
6 Pixel density(pixels/m² ) 3906
7 Average consumption(W/m² ) 191
8 Maximum consumption 763
9 Power source AC220V/50HZ or AC110V/60HZ
10 Operating temperature -20º C ~ +50 º C
11 Operating humidity 10%--90%
12 Storage humidity -30º C~ +50º C
13 Refresh frame rate 60Hz
14 Refresh rate 480Hz
15 Viewing distance 15-300m
16 grayscale/color 16.7M
17 Brightness adjustment 100 manual levels /100 auto levels
18 Control method synchronous with the computer display
19 Data transfer range Network c able: 100m
20 Computer operating system WINDOWS (98, 2000, XP, Vista, 7)
21 Video signal VGA, DVI, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION and so on.
22 Longevity ≥ 100000 hours
23 Certification UL/CE/CCC

Prod Model: p16 256*256mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certificates: CE/FCC/CCC/UL/RoHS/ ISO9001: 2008
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Pixel Pitch: 16mm
Display Function: Video Display
Scanning Mode: 1/2 Scan
Certification: CCC
Pixel Density: 10000 dot / m²
Average Power Consumption: 350W / m²
SkyMax Display Technologies Co., Ltd is a world class advanced enterprise specialized in designing, researching and manufacturing LED lamps, LED Display and LED lighting. We are service enterprise in LED display field and focusing on offering LED projects solution. The company founded in 2006 and located in Zhongshan city which is famous as 'The China lighting city'.

SkyMax has 30, 000 square meters of air conditioned workshop area including dustless rooms, anti-static workshop, LED module aging room, LED display aging room. The factory is also equipped with all new and most advanced world first-class machines for LED automatic production line: American ASM auto-die bonder, ASM auto-wire bonder, Taiwan auto-encapsulate machine, Taiwan Chang-Yu handler, automatic LED braider, America Global automatic LED inserting machine, Japan JUKI automatic SMD machine, N2 lead-free relow soldering system, N2 lead-free dual wave soldering system. The company also has the machines testing system, including: Automatic PCB painting machine, automatic lamps adjusting machine, automatic rubber filling machine, automatic molding machine as well as high and low temperature testing machines, constant temperature and humidity machine, salt-spraying machine, shaking machine, waterproof testing machine. We have a group of professional, stable, pragmatic and innovative high-quality research and development team, which forms LED devices production to terminal manufacturing complete LED chain. SkyMax chooses high point, high standards, strict demand, in strict accordance with ISO9001: 2008 quality Guarantee system operation, and meticulous management into all aspects of production to ensure the quality of our products at the industry-leading position.

The company adopts advanced technology and management, producing a wide range of light-emitting diode, designing and manufacturing various electronic LED display, LED lighting to suit indoor and outdoor applications such as various stadiums, airports, wharf, stations, commercial system, exhibition centers, advertising etc. The products have been sold to America, Europe, South America, East Europe, Middle East, HongKong, Macao, the quality and customer service has won the recognition and acclaim. We are willing to work together with you to create a global production base for high-quality LED.

The company complies with the time development, promotes the scientific innovation and the time positively connects rails, the company quality system has updated into ISO9001: 2008, all products have got the certification of CE, FCC, RoHS ect.

To be the popular brand in LED business line is the final target of SkyMax. SkyMax means 'Mountain mind, Contains infinite; Green trees, Indomitable', SkyMax staff take 'honest, contains, thanks giving, responsibility' as the core values. Take 'creating professional, reliable products' as the duty. Offer the best products, best after-sale service. All SkyMax staff work together and let SkyMax products be popular in the world.
