Feature:
1. High bright 12W CREE LED
2. Compact size and lightweight makes it ideal for mobile entertainers, small club and bars
3. With wireless IR Remote control
Specification:

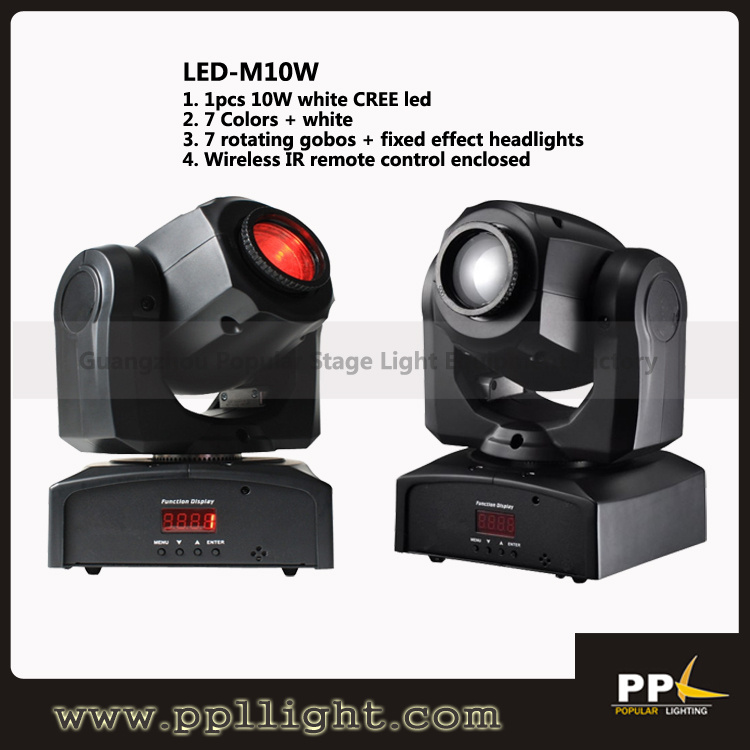

Powerful, mini moving head with a bright, white CREE LED with 12 W
7 colors + white
7 rotating gobos + fixed effect headlights
Separate color and gobo wheels
Manual focus
3 operation modes: DMX, Sound Active Mode and Internalionale show modes
2 DMX channel modes 9, & 11 DMX channel modes
4 shows integrated
Gobo Shake effect
Gobo scroll mode
Dimensions of the gobos: 74mm (15mm field of view)
Angle: 13 degrees
540 ° Pan / 230 ° Tilt (16-bit)
Schwenkungs- / tilt inversion mode
5 selectable dimmer curves (standard, Stage, TV, architecture and cinema)
Shutter: Random function for strobe / pulse effect, from slow to fast
Dimming: 0% - 100%
Fan cooled
Display vice versa
Including Omega-mounting bracket
Connections: DMX via 3-pin XLR cable
Wireless IR remote control enclosed: All in, standby, strobe, color change, dimming, control music on / off
Power consumption: 26 W at 120 V, 27 W at 230 V
Switching power supply: AC 100 - 240 V, 50/60 Hz
LED light source: - white CREE LEDs with 10 W (approximately 50, 000 hours)
Dimensions (L x W x H): 159 x 147 x 265 mm
Weight: 3 kg
DMX Channel:
| channel 9 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |
|
|
| function | Pan | Tilt | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed rotate | Function | Dim Modes |
|
|
| channel 11 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| function | Pan | Pan Fine | Tilt | Tilt Fine | Color | Gobo | Shutter | Dimmer | Pan/Tilt Speed | Function | Dim Modes |
Guangzhou Baiyun Popular Stage Light Equipment Factory is a professional stage lighting manufactory which provides integrated services of research, production, marketing, after-sales inquiry, repair and maintenance. Our equipment are widely used in professional theater, entertainment centers, bars, parks, clubs, nightclubs and multifunctional units of conference halls. Compliant with CE and RoHS standards, our products main involve LED moving head lights, LED PAR lights, controllers, Moving head light, etc.
with strong beliefs in "Practical, Professional & Powerful" to the products, the company provides remarkably superb lighting Performance to all Professional Audience.
Hope we can grow together on the coming days.
