Home LED Light Products CE RoHS UL High Power Outdoor 180W LED Explosion Proof Light Meanwell Driver 5 Years Warranty White&Warm White Gas Station/ Toll Station/Service Station Light
CE RoHS UL High Power Outdoor 180W LED Explosion Proof Light Meanwell Driver 5 Years Warranty White&Warm White Gas Station/ Toll Station/Service Station Light
Price: |
US $ 290/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
10/Piece |
Pay Type: |
T/T,Paypal,Western Union |
About usPros Light, founded in 2008, is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. Our main technicians and management personnel have more than five years of working experience related to LED industry. Having a professional, steady and well-qualifies research and development team and sales teams, our company is always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.Introduction of 180W LED Explosion Proof LightAdopting 144pcs of high power leds, graceful profile, excellent cooling system and high effecient waterproof IP65 Meanwell power supply. High power 70W tunnel lighting is featured with high lumen, high effeciency, excellent opitc distribution performance, high optic uniformity, low light degradation, excellent appearance and long lifespan. It is suitable for tunnel, tennis court, football court, bridge, street, exhibition center lighting application etc.Main Feature:1. High efficient waterproof IP65 UL listed Meanwell power supply
2. High luminous efficiency with 45mil Bridgelux high power led chips
3. Excellent heat dissipation design to slow down the degradation of led and keep long lifespan
4. Long lifespan 50, 000hrs and extremely low maintenance cost
5. IP65, suitable for outdoor billboard lighting
6. Environmentally-friendly, lead-free and mercury-free, CE&RoHS complant
7. Working area including workshops, exhibition halls, gymnasium, gas station and toll station etc.

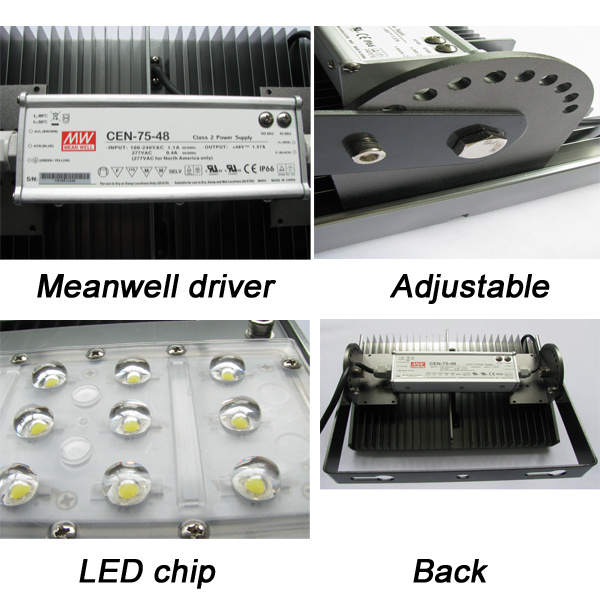

8. New style, slim and perfect extrinsic feature.Details:Typical Application1. Bulletin
2. Canopy
3. Billboard
4. Building wall washing etcMaintenence Guide:1. Please make sure that the electrical source hsa been cut off before maintennce;
2. The glass better to be cleaned regularly to keep good light transmittance;
3. Periodically clean dust on the outer housing and the heat sink for good lighting condition;
4. Do not use water or other corrosive liquid to clean it up, better use the dry duster cloth;
5. When it needs to replace for a new LED driver, it just needs to use the screwdriver yo take it off, very easy and convenient.
6. The most important is that do not mix the wires up, make sure the wiring is right.

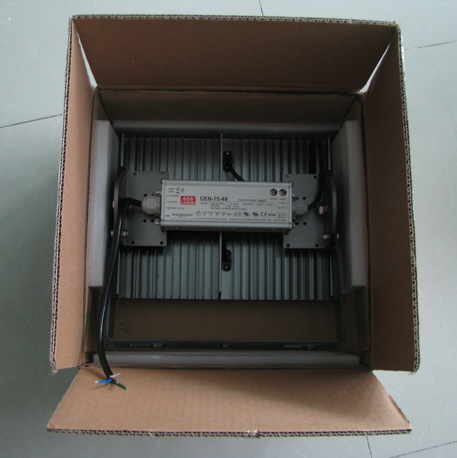

Packing
Input voltage |
85-265VAV |
PF |
>0.9 |
Power efficiency |
>83% |
Work voltage |
DC30-36V |
Led chips |
Bridgelux 45mil |
Led Qty |
144pcs |
LED Power |
180W |
System power |
189W |
LED efficiency |
100-110lm/w |
Light effeciency |
>80% |
Uniformity |
>0.5 |
LED initial Flux |
15300-15400lm |
Lamp shell color |
black |
Dimension |
596*347*154mm |
Net weight |
7KG |
Gross weight |
9.5KG |
Packing dimension |
66*40*21cm |
Warranty |
3years |
Prod Model: |
PL-FB-TC180W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Input Voltage: |
85-265VAC |
LED Chip: |
Bridgelux |
Lumen: |
15300-15400lm |
LED Power: |
180W |
Pf: |
>0.9 |
CRI: |
>75 |
Tc: |
2800-7000k |
Size: |
596*347*154mm |
Shape: |
Square |
Lifespan: |
50, 000hrs |
IP Rating: |
IP65 |
Emitting Color: |
White |
Lamp Body Material: |
Aluminum Alloy |
Certification: |
RoHS |
Color Temperature: |
2700-6500k |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
