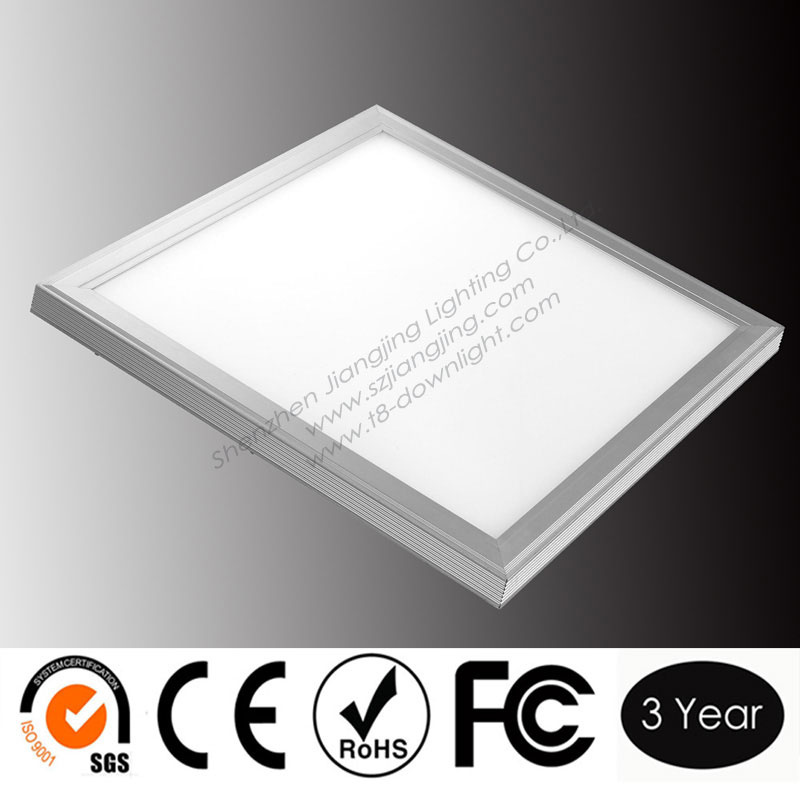

40W (600*600mm) Pure White LED Panel Light (JJ-PL40W-0606-P-PW)
Specifications of 40w led panel:
1. Light Source: LED
2. Item Type: Panel Lights
3. LED Light Source: SMD2835
4. Warranty(Years): 3
5. Input Voltage(V): AC85-265V
6. Lamp Power(W): 40
7. Lamp Luminous Flux(lm): 3000
8. Lamp Luminous Efficiency(lm/w): 75
9. CRI (Ra>): 75
10. Color Temperature(CCT): Cool White, Warm White, Pure White
11. Working Temperature: -20 degree to 50 degree
12. Working Lifetime(Hour): 50000
13. Lamp Body Material: Aluminum& High Quality PMMA
14. IP Rating: IP44
15. Certification: CE, EMC, LVD, RoHS
16. Place of Origin: Guangdong, China (Mainland)
17. Brand Name: Jiangjing
18. Model Number: JJ-PL40W-1203-P
19. LED Quantiy: 100PCS SMD2835
20. LED Brand: Epistar
21. PF: >95
22. CCT: 3000-3500K; 4000-4500K; 6000-6500K
23. Option: Dimmable, Non-dimmable
24. Dimmable Voltage: AC110V/AC220V
25. Shape: Square. Round is also available
26. Beam Angle: 120 Degree
27. Lifespan: 50000Hours
28. LED Driver: External Driver
Flat panel LED light fixtures Features & Advantages:
1. High Lumen Taiwan Epistar chip SMD2835;
2. Low glare; Good heat sink;
3. High lumen efficiency, exceptionally thin and lightweight structure;
4. Good power supply design, long lifespan 50, 000 hour lifespan;
5. High consistency color temperature;
6. CE (LVD &EMC) & RoHS approved;
7.3 years warranty;
8. Dimmable and non-dimmable available
9. Designs: Standard model, Water Cube design and Mosaic design.
Appplication for Led Panel Light
LED panel lights are commonly used
1. Office, meeting or conference room
2. School, laboratory, library, museum, living rooms, hospital
3. Supermarket, retail outlet, corridors
4. Entertainment venue
5. All commercial premises and residential
How To Choose Luminous Efficacy of Led Panel Light?
1. Light source: Low power SMD LEDs (placed in the edge of the plate)
2. Quick response when power on, no noise, no UV, no strobe light;
3. Adpot own-designed LED driver with high power factort;
4. Low luminous decay, Quick response when power on, long lifespan, no noise, no UV, no Strobe light, no pollution;
5. Conclusion: Selection LED panel light should not only consider high luminous angle, but also consider energy-saving and luminous efficacy. According to LED panel light lifespan, Luminous efficacy can well reflect LED Pane light whether energy-saving
|
Products No. |
Watt |
Input Voltage |
Dimension |
LED source |
PF |
Lumen Output |
Color Temperature |
|
JJ-PL10W-0303-D-WW |
10W |
AC 110V/220V 50/60Hz |
300*300mm |
60Pcs*0.2W SMD 2835 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL10W-0303-D-PW |
4000-4500K |
|
JJ-PL10W-0303-D-CW |
6000-6500K |
|
JJ-PL20W-0603-D-WW |
20W |
AC 110V/220V 50/60Hz |
600*300mm |
96Pcs*0.2W SMD 2835 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL20W-0603-D-PW |
4000-4500K |
|
JJ-PL20W-0603-D-CW |
6000-6500K |
|
JJ-PL40W-0606-D-WW |
40W |
AC 110V/220V 50/60Hz |
600*600mm |
96Pcs*0.5W SMD 2835 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL40W-0606-D-PW |
4000-4500K |
|
JJ-PL40W-0606-D-CW |
6000-6500K |
|
JJ-PL40W-1203-D-WW |
40W |
AC 110V/220V 50/60Hz |
1200*300mm |
192Pcs*0.2W SMD 2835 |
>0.90 |
75lm/W |
3000-3500K |
|
JJ-PL40W-1203-D-PW |
4000-4500K |
|
JJ-PL40W-1203-D-CW |
6000-6500K |
Shenzhen Jiangjing Lighting Co., Ltd is a manufacturing enterprise with national high technology, we devotes to researching and developing new products with advanced technology, and has rich experience in the field of commercial lighting and special biological application lighting. "Being strict with quality, producing top-quality products", adhering to this faith, all designs of our productsabide by Electric Security Standard of Europe and America. Through scientific matching and design for lamp, light source and electrical equipment, Jiangjing Lighting do the best to improve the lighting effect, reduce energy intensity and increase product's service life, to providing customers with the best lighting solutions, as well as supporting environmental protection and comprehensive energy saving.
Jiangjing Lighting own full sets of advanced professional manufacturing equipments and inspection equipment, together with high level of technology talented person, a variety of LED lamps produced here pass the international CE, RoHS, FCC certifications. With good reputation, we establish friendly relationship of cooperation with many different companies from North America, Europe, Southeast Asia and other countries, and become their long-term trusted partner step by step.
In the future, Jiangjing Lighting will promote the development and application of advanced lighting technology, carry out our faith and promise with expert spirit! Jiangjing is always ready to provice customers with the best service! !
