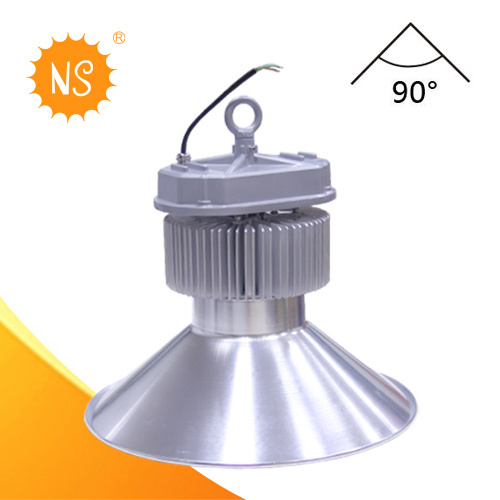

CE RoHS IP65 integtate 150W LED Indusrial high bay light
Specifications:

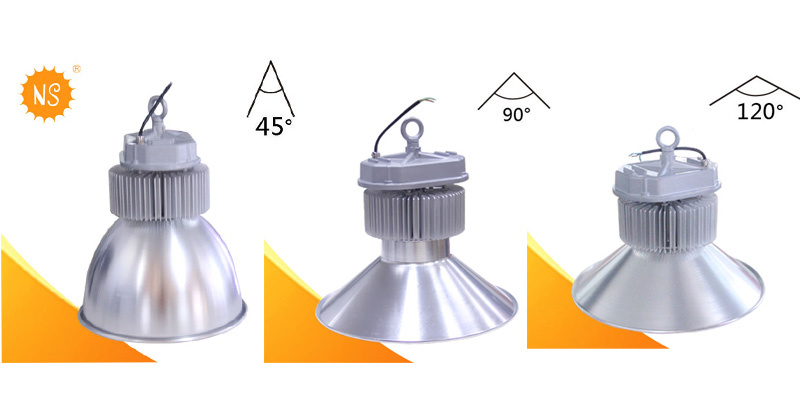

1. Beam angle: 120°,90°,45°
2, Luminous flux: 15000lm ±10%
3. Professional LED lamp replacing HPS 300W
4. Size: Dia 500mm * H700mm
5. Lamp base: 2 PIN wires
6. Input voltage: 85-265VAC
7. Power consumption: 150W ±10%
8. LED source: 1pc 150W LED
9. Color temperature:
1)Cool white: 5500~6700K
2)Natural white: 4000~5000K
3)Warm white: 2700~3500K
Advantages:
1. Long-life over 50,000Hrs,More than 50 times of tranditional tungsten flilament lamp.
2 .LED High Bay Light overturns luminescence properties of the tranditional light source, with its light weight, small volume, green environmental protection.
3. No lead, mercury and other pollution elements, no pollution to the environment.
4, Impact resistance,strong anti-thunder,no ultraviolet radiation (UV) and infrared (IR).
5. Phase change heat sink tech, super conducting heat capacity, strong cooling capacity,low cost and high reliability.Working surface temperature ≤50 ºC(ambient temperature Ta = 25 ºC pm);
6. Universal wide voltage range,100 v to 277 VAC, to ensure the life and brightness is not affected by voltage fluctuation.
7. Power factor ≥0.9. harmonic distortion ≤20%, or less.The EMI in line with the global index, no interference to power grid.
8. Perfect light distribution, increasing the light area, eliminate the glare, sublimation visual effect, eliminate visual fatigue;

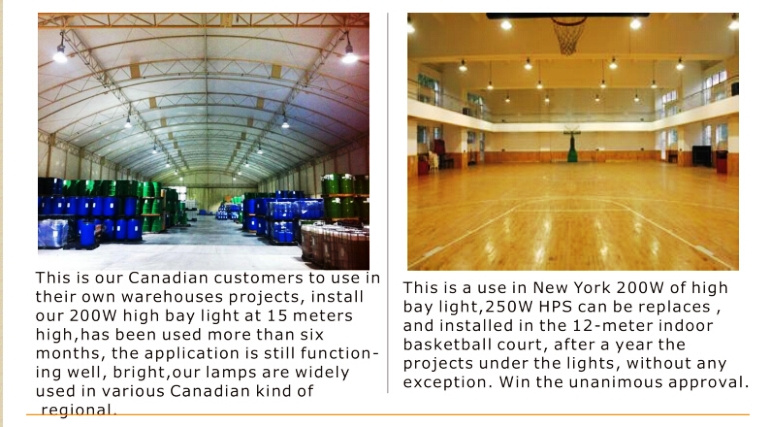

9.Suitable for factory workshop, station, large warehouses, toll station, gas stations, exhibition hall, gymnasium, industrial and mining areas, and other higher requirements of half- outdoor and indoor places.
150W LED High Bay Package
150W LED High Bay Projection in US
|
Product name |
150W LED high bay light |
|
Model |
NSFL-AE240-150 |
|
Input Voltage |
AC 110-277V |
|
Power Consumption |
Typ 150W.Max 160W |
|
Power Factor |
0.95 |
|
Driver Output V. |
DC30-36V |
|
LED type |
Bridgelux 1pcs |
|
Color/Temperature |
Warm White |
Natural White |
Cool White |
|
3000K ± 200K |
4200 ± 300K |
6000 ± 400K |
|
Luminous Flux |
Min |
Typ |
Min |
Typ |
Min |
Typ |
|
13800lm |
14500lm |
14500lm |
15000lm |
15000lm |
15300lm |
|
CRI Ra |
≥70 |
|
Angle |
45°,90°,120° |
|
IP |
IP65 |
|
Operating Ambient |
-40 to 45 C,10-80%Rh |
|
Storage Ambient |
-20 - 50,10-80%Rh |
|
Certifications |
CE RoHS |
|
Net Weight |
5.8kg |
|
Size |
200*240*240mm |
|
Installation height: |
6-8m |
|
THD: |
<11% |
|
Uniformity |
>0.7 |
|
Life Time |
5 0000h |
Shenzhen Zhaopeng Technology Co., Ltd(2008 founded) is a high-tech enterprise specializing in the production of LED lighting, which is subsidiary of New Sunshine Manufacturing Co., Ltd(2004 founded). Products cover LED corn bulbs(widely use as warehouse, street lamp, garden light and indoor lighting ect. )LED filament bulbs.
We also developed only for American fixtures such as shoe case, wall pack, canopy & garage lighting, parking lot etc.
In early of April 2014, Newsunshine launched a series of new street light. With the first-class design, excellent performance, it has become the designated street light in Tijuana, Mexico. What's more, Newsunshine exclusive patent 20 watt, 30 watt corn light series has occupied the Germany koblenz, Stuttgart market as the village street light.
'Tech innovation, quality first' is our constant commitment to customers. All products comply with the requirements of ISO 9001: 2008, passed European certificates of CE, RoHS, TUV and VDE, also American certificates of UL DLC. New Sunshine becomes the first LED corn bulbs manufacturer in China. We have all patents in mainland China, EU, the United States.
As company's registered trademark, "NS" and " Zhaopeng " enjoyed high reputation in LED fields, and especially favored by European and American customers. In order to better serve the overseas market, in August 2014, our company established the warehouse and after-sale service center in Germany and USA.
We always uphold the " faithfulness, Mutual Benefit" business philosophy, "passion innovation" and " pragmatic progressive " development attitude, marching towards the ambition of "becoming the LED leading enterprises around the world"!
