1.features
| Chips | Epistar 35mil chips / Bridgelux 45mil chips, 85lm/w, 75Ra, 2700-6500K |
| Driver | Meanwell driver, PF>0.99 |
| Others | CE / RoHs certificated, 5years warranty |

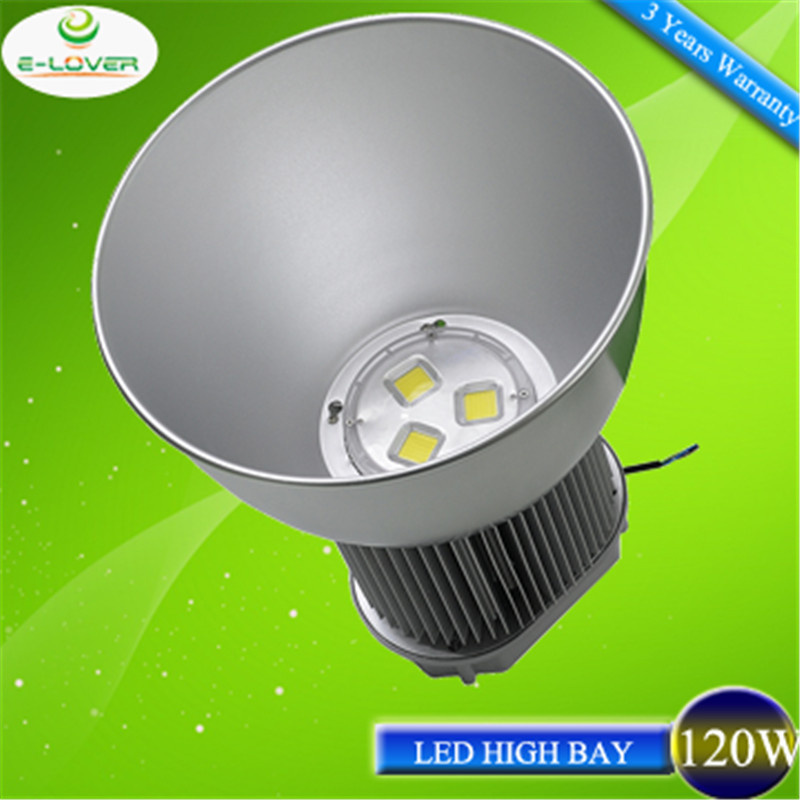

| EL-FL100W high bay led |
| Input Voltage | AC85-265V |
|
| Freqency Range | 50Hz - 60Hz |
| Harmonic Distortion | <15% |
| Power Factor | >0.95 |
| Power Efficiency | >87% |
| Working Voltage | AC85-265V |
| LED Quantity | 3pcs |
| LED high bay light Power | 120W |
| LED Chips | Epistar or Bridgelux |
| LED Luminous Efficiency | 90+-5lm/w or 100+-5lm/w |
| Lamp's Efficiency | >80% |
| Lighting Angle | 45° | Available |
| 90° | Available |
| 120° | Available |
|
| Illuminance Uniformity | >0.5 |
| Correlated Color Temperature | WW | 2700k-3200k |
| PW | 3900k-5000k |
| CW | 5800k-6200k |
| Color Rendering Index | WW | Ra>68 |
| PW/CW | Ra>75 |
| Light Distribution | Symmetric / Circular Light spot |
| Light Design | LED + Reflector |
| Working Temperature | -40° ~ +45°C |
|
| Storage Temperature | -40° ~ +65°C |
| IP Grade | IP65 |
| Working Lifespan | 50000hours |
| Power Cable | 0.75mm2 trifurcating cable |
| Connect Wire | L Power Line |
| N Null Line |
| G Earth Line |
| Lamp Shell Color | Black & Silver |
| Certificate | CE & RoHs
|
2.100w high bay led advantages
Professional spectrum design, directional lighting, without glare and of high uniformity.
Adopting high power integrated led chip 100W.
High efficient and reliable current & voltage constant driver used, achieves instant startup, power factor 0.95.
Modern designed integrated lamp shell with high heating dissipation performance.
Diffuser cover processed by anti-cathode oxidization, compacted with led light source, high lighting emittance.
Surface resists high temperature, multi colors available.
Die-casting aluminum with compact structure resists high pressure and anti-corrosion.
High quality silicone for sealing is working for more than 150degree temperature, dustproof, waterproof.
Led is available multi-colors like red, green, blue, white etc.
3.application of 80w le high bay light
Workshop, factory, storeroom, toll station, hypermarket, exhibition, center, gym, etc
Payment Terms:
1. Samples: Bank TT, 100% payment in advance;
2. Bulk order: Bank TT, 30% deposit and balance 70% settled before shipment.
Delivery time:
1. Samples: 3-7 working days;
2. Bulk order: 7-15 working days.
Warranty:
3 years warranty
Shipping Method:
1. By Express: DHL, UPS, Fedex, a fast and safe way for shipping, normally 3-5 working days for delivery;
2. By Air: In some area, the shipping cost by air is more favorable than by Express; 5-7 days for delivery
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
After-sale Service:
1. Quick reply on customers'questions;
2. If anything goes wrong with the products'quality, we will replace for you free and undertake the shipping cost.
3. Make you a happy ordering
Shenzhen E-Lover Technology Co., Ltd. is an innovative company involved in R&D, manufacturing and sales of solid state lighting (ssl). Through our powerful research and development team, independent design and affluent of venture investment to focus on an endeavor; To develop and promote LED lighting to transcend from our laboratory to every corner of the world, changing the perception of how humanity employs LED technology.
We mainly produce LED tube, panel, LED spotlight, LED downlight, LED ceiling light, also with LED flood light and high bay light, elover technology company possesses an inventive and talented team. O-ur staffs comprise of researchers from prestigious companies like CREE. With high management from the United States and Australia all unified to accomplish our goal. Couple with our state of the art research and testing facility, our dust free laboratory, stringent inspection routine, and compas-sionate sales team; Elover strives to create a de-facto standard in the solid state lighting industry.
"be inventive and excel! " elover believes in continuous research and relentless improvement of I-ndividual and our products to bring advancements in solid state lighting. We abide by this belief in creating a transcendent future in LED lighting together with global co-operative partners. The elover brand represents our belief in quality, creativity, social responsibility, and endeavor for betterment of what LED lighting can realize for humanity
