Products' Parameter:
1.Conection Methods : Bluetooth Version 4.0
2.Suitable Phone OS : Any OS support Bluetooth version 4.0 or above
3.Software language: English
4.Color : 4(RGBW)
5. Dimmable: Yes
6. Chips Specification: RGB:5050-1.5W*5,Warm White:2835*10
7.Light Luminous Flux : Red: 45-75LM,
Green: 100-150 LM
Blue: 20-50LM
Warm White:400-550LM
8.Emitting Angle: 120
9.Working Voltage : AC85V-AC240V 50/60Hz
10. Working Temperature: -25-55
11. Effective Romoted Distance: No barrier,40m ;Indoor, 20m
12. Bulb Size: D:58.5mm * H:109mm
Product Features:
This bulb support Bluetooth version 4.0 or above.
It can achieve remote control ,switch light,adjust brightness and color temperature.There are 16 million
colors and dozens of light changing modes.In addition, it do not need additional line,conveniently installed and
used.
It is a high capability and easily replaceable LED bulb.Certainly,it have other advantages,such as light
source is LED,power consumption is just 20% of traditional incandescent,working life is 10 times of traditional
save-power light,safe and stable.
The case adopts aluminum fins,which can let air backflow cyclically.This design resolved high-powered
LED thermal problems in highest degree.Bulb is made of graced poly materials with high transmitacnce 85% or
above,and luminous is uniformity.It controlled by wireless Bluetooth,furthest remoted distance catch up to
40m.It enjoys low power-consumption ,great anti-jam capacibity,high transmission speed.It can keep light
memory(when restart,it will auto keep previous status before shutdown). In addition ,it will turn on in default
when energized.This function avoid this situation that you cann't turn on light when phone were lost.
It can be used widely in bedroom ,living room ,entertaining place and operating atmosphere etc.
Magic Light Instruction
1. Install Magic LED Light
A .Search"Magic LED Light "in App store by iPhone, download for free and install it.
B.Download it by scanning QR code:
2. Connect Bluetooth RGBW LED Bulb
Pls connect the bulb with power supply by correct connection.Then open phone's Bluetooth service.If your
Bluetooth service is off ,Phone will antumatic pop-up a interface "Turn On Bluetooth to Allow "Magic Light "to
Connect to Accessories.Choose "Settings" first ,then "on "bluetooth
3. Software Operating (RGBW)
a.Preview:
Though you bulb haven't connected, you can open operation interfacel by preview mode.
b.Reset:
Rescan bulbs.
c.RGBW Vision
d.How to use

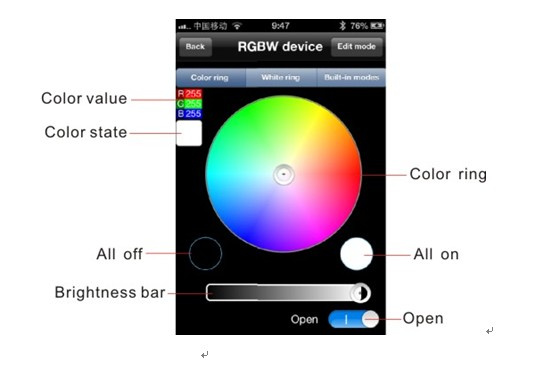

1) Color ring: Press the color ring, choose any color you like .The color will shows your choice.
2) All off:darkest of three channels(R,G,B)
3) All on:brightest of three channels(R,G,B)
4) Brightness bar: Sliding to the left ,light will be moreand more dark;Sliding to the right,light will be more and
more bright.
5) Open:ON/OFF.

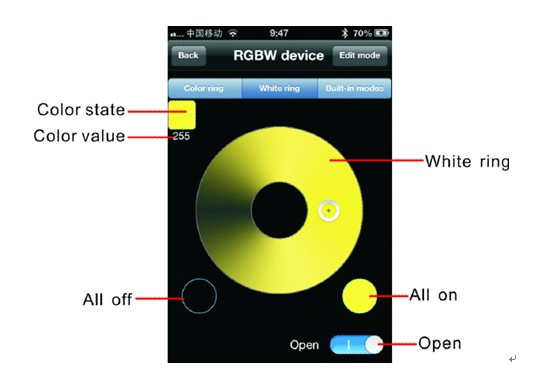

6) White ring:Press the white ring,choose any brightness you like.The brightness state will shows your choice.
All off:darkest of white
All on:brightest of white

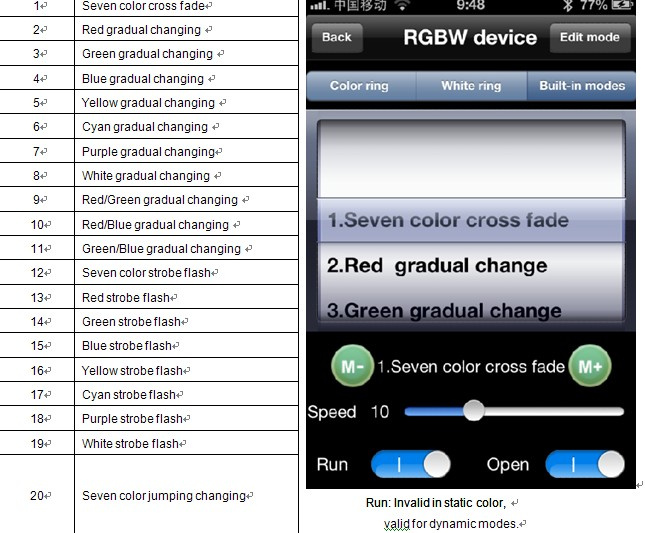

7) 20 built-in modes:
Press M-/M+ to choose modes, you can adjust the speed at the same time.
Total 31 grades of each mode : "1" is the slowest grade; "31" is the fastest grade.
Following are 20 built-in modes of RGB Control:
