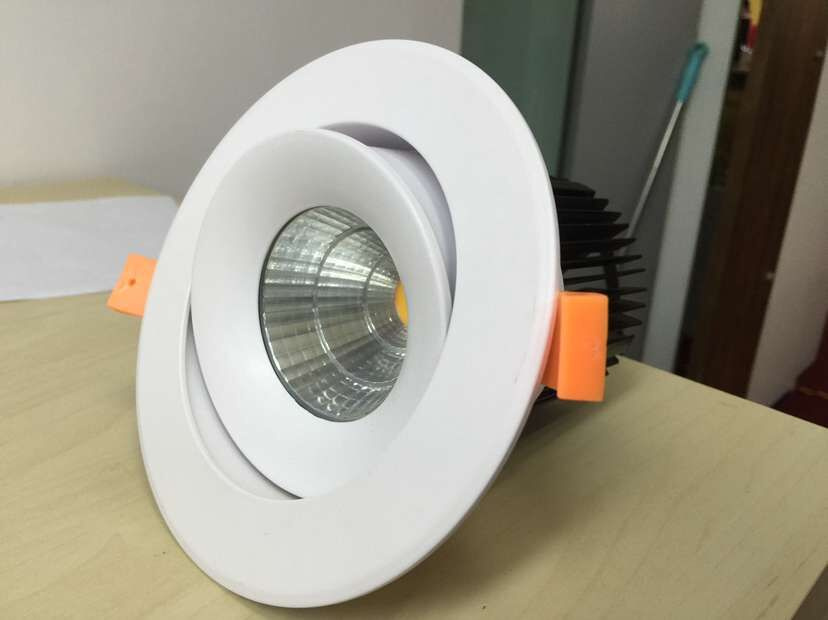

CE Recessed Panel LED 60W Down Light

CE Recessed Panel LED 60W Down Light

High quality and high stability LED recessed light

Product Description
  Technical parameters

No.	Model No.	Power	Light efficiency	Lumen (White)	Equal Lumen (White)	Available Angle	Reference Direct Replacement MH	Color Temperature	Light Size	Working Voltage
1	LS-RSL15	15w	120lm/W	1800	3600	20,40,60degree	30W	2800-3500K 5000-6000K 6500-7500K	3.5Inch	110/220V AC
2	LS-RSL27	27W	120lm/W	3240	6480		50W		4Inch	110/220V AC
3	LS-RSL37	37W	120lm/W	4440	8880		70W		5Inch	110/220V AC
4	LS-RSL40	40W	120lm/W	4800	9600		80W		6Inch	90-295V AC
5	LS-RSL50	50W	120lm/W	6000	12000		100W		8Inch	90-295V AC
6	LS-RSL60	60W	120lm/W	7200	14400		120W		8Inch	90-295V AC
7	LS-RSL70	70W	120lm/W	8400	16800		140W		8Inch	90-295V AC
8	LS-RSL80	80W	120lm/W	9600	19200		160W		8Inch	90-295V AC
9	LS-RSL100	100W	120lm/W	12000	24000		200W		8Inch	90-295V AC

Brightest Street Light in the world!
High Quality High Stability Led lamp
2-4 times brighter than conventional light
3rd Generation Direct Heat Path Technology, 2-5 times better stability
Anti-Glare System, suitable for any occasions
IP66, underwater use support
5 Years Warranty!

Dimension

Model		Diameter	Diameter	Height	Suggested Hole	Net Weight	Power
					Cut	(Kg)
3.5Inch	(3.5)	Φ115	Φ95	H83	120-130	0.6	13W
4Inch	(4)	Φ142	Φ125	H101	145-155	0.7	24W
5Inch	(5)	Φ160	Φ140	H133	165-175	1.2	33W
6Inch	(5)	Φ160	Φ140	H133	165-175	1.2	40W
8Inch	(6)	Φ185	Φ200	H145	190-200	1.6	50W
8Inch	(8)	Φ185	Φ200	H145	190-200	1.8	60W
8Inch	(8)	Φ230	Φ200	H176	235-245	2.1	70W
8Inch	(8)	Φ230	Φ200	H176	235-245	2.1	80W
8Inch	(8)	Φ230	Φ200	H176	235-245	2.1	100W

Installation:
Please pay more attention to the below instructions while installation, in order to avoid any possible Fire
Hazard, Electric Shock or Personal harm.

Instructions:
1. Cut off Electricity before installation.
2. The product only used in DRY environment
3. Please do not block any objects on the lamp (distance scale within 70mm), which will definitely affect
heat emission while lamp's working
4. Please double check before getting electricity on if wiring is100% OK, make sure Voltage for lamp is right and no Short-Circuit.

Wiring:
The Lamp can be directly connected to City Electric Supply and there'll be detailed User's Manual and
Wiring Diagram.

Specifications
1. Led street light with lens;
2. High power: 150-600W;
3. Bat-wing distribution curve flux;
4. Dimmable led light
5. IP67 waterproof

1) Streamline configuration, graceful appearance combine with the city street environment well;
2) Excellent self-cleaning function;
3) Aluminium alloy(ADC12) housing guarantees its high soundness;
4) Project rectangular light spot with bat-wing distribution curve flux and keep good light evenness for 40m-60M distance;
5) Excellent heat radiation character reach a temperature raise below 23K;
6) Tool free for maintenance, easy to instal it;
7) Horizontal or vertical installation are avialable;
8) Bridgelkux chips with excellent luminous efficiency;
9) Superior tempered glass diffuser has a good light transmittance and invariant color;
10) Meanwell Long life power driver ensures above 50000 hours use-life and has short, open-circuit and over-heat protection.
