cob 3w 5w 7w 15w 20w 30w led light downlight
CE Rohs approved 8 inch recessed COB 3/5/7/9/12/15/18/25/30W LED down light ,led recessed ceiling light with 200mm cutout

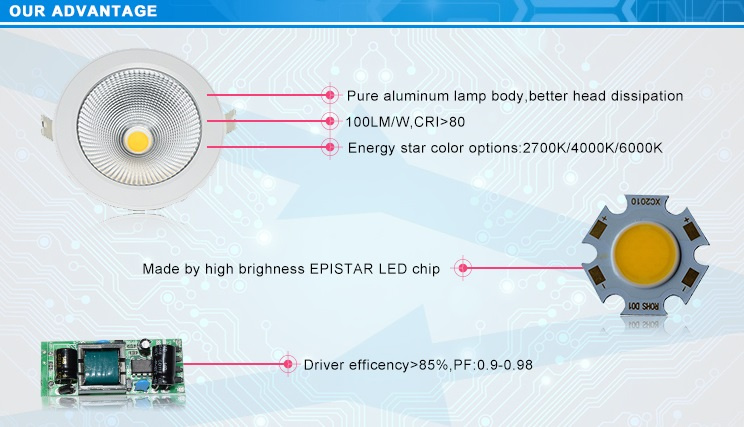

1. Epistar COB LED CHIP ,RA<80
driver With CE/C-tick/SAA/RoHS Approval
2. Low power consumption, High power efficiency
3. Good heat dissipation function, stable performance.
4. High quality with 3 years guarantee for 20w led down light CE Rohs approved
5.LED COB Downlights saving up 80% on your energy usage, comparing to the traditional ones.
tem No. | EP-DL-3W/5W | EP-DL-5W/7W | EP-DL-7W/9W | EP-DL-10W/15W | EP-DL-15W/20W | EP-DL-25W/30W |
Watt | 3W-5W | 5W-7W | 7W-9W | 10W-15W | 15W-20W | 25W-30W |
Inch | 2.5" | 3" | 4" | 5" | 6" | 8" |
Lumen | 90-100LM/W | 90-100LM/W | 90-100LM/W | 90-100LM/W | 90-100LM/W | 90-100LM/W |
Input Voltage | AC 85-265V | AC 85-265V | AC 85-265V | AC 85-265V | AC 85-265V | AC 85-265V |
Size | Ø85*50mm | Ø95*50mm | Ø131*50mm | Ø165*50mm | Ø190*60mm | Ø220*60mm |
Cutout Size | Ø55 | Ø85 | Ø110 | Ø140 | Ø170 | Ø200 |
Beam Angle | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree | 120 degree |
LED Type | 1PS COB 14mm | 1PS COB 14mm | 1PS COB 30mm | 1PS COB 43mm | 1PS COB 60mm | 1PS COB 60mm |
Power Factor | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 | >0.9 |
CRI | Ra>80 | Ra>80 | Ra>80 | Ra>80 | Ra>80 | Ra>80 |
CCT | 2800K, 3000K, 4000K, 5000K, 6 |
Housing material: | Aluminum+Glass |
Lifespan: | >50000 Hours |
Warranty | 2 years |
