Introduction

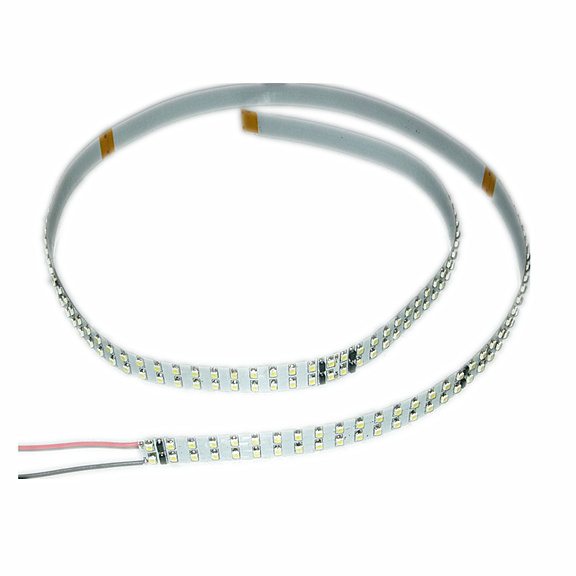

120V high voltage LED strip is an "updated version" of the low voltage strip. The use of DC 12V LED strip has to be with a miniwatt adapter, and its best length is 5 meters. For the projects, this is very inconvenient. Now, our high voltage strip could deal with all the problems. 100 meters in one line without connection, and no signal amplifier needed. Save cost on power supply and installation, easy to transport and install.
Features
1. Epistar 3528 SMD LED light source
2. No UV, no flickering, good for eyes
3. 72LEDs/Cuttable(300mm), 288LEDs/1200mm
4. High energy efficiency, 1400LM output/1200mm
5. Long life, more the 50, 000 hours, in the normal use of more than five years
6. Light without delay, faster response time
7. Maintenance free, very simple to install at any surfaces
8. Working Voltage: AC120V
9. Power Dissipation: 9Watt/1200mm
10. Dimension: 1200mm(L)× 16mm(W)× 2mm(H)
11. Colour Temperature: 2800K-3200K, 4000K-4500K, 6000K-6500K is optional
12. Plug and Play, no drivers or special connections needed
13. Easy to apply due to sticky tape on the back of the LED strip
Notice
1. Please do not touch the solder pads(L/N), it is AC120V high voltage.
2. Before use, first check the input voltage used in compliance with of the LED strip
Application
Outdoor: Decks, facades, gardens, patios, stairs, architectural/hospitality lighting, landscape lighting, lighting extended expanses
Indoor: Kitchens, restaurants, hotels, bars, cafeterias, bathrooms, under cabinet lighting kitchen, bathroom, laundry, utility room
NO |
item |
units |
Parameter range |
1 |
working environment |
º C |
-20~40 |
2 |
storage condition |
º C |
-40~85 |
3 |
Dimension |
mm |
1200× 16× 2 |
4 |
Working voltage |
V |
AC120 |
5 |
Power Factor |
|
0.98 |
6 |
output power |
W |
9 |
7 |
LED Chip |
|
10× 20mil Epistar |
8 |
LED Quantity |
PCS |
288 |
9 |
Control Mode |
|
Constant Voltage |
10 |
Luminous Flux |
LM |
1200-1400 |
11 |
LED source |
|
3528 SMD LED |
12 |
Type of PCB |
|
FPCB |
13 |
Thickness of Copper foil |
|
2 ounce |
14 |
Protective grade |
IP |
30 |
Shenzhen Tianshengda Optoelectronic Co., Ltd is professional LED lighting manufacturer and SGS Audited Supplier since 2004. Our products are mainly exported to Europe & North America with competitive price and high quality. Our clients includes IBM, Jaguar-Land Rover and Topshop etc. The OEM or ODM is welcome.
High-grade materials and state-of-the-art equipment such as auto soldering and SMT assembly lines are utilized throughout the manufacturing process of each of our products. More than 300 kinds of products, sales network in over 100 countries and regions. The CE, RoHS, SGS certificate of the products make sure the end user using safely.
Our products show extremely long life span and stability in the function. We guarantee over 50, 000 hours for the life. The average light output after 10, 000 hours continuously lighting will be 85% comparing the original brightness.
The majority of the TSD products appear waterproof state. The purpose to motivate the idea is to make the products are flexibly designed and installed in humid and more atrocious environments. Purely due to a quality issue, all damage or destroy of the products will be borne by TSD during its warranty time 2 years.
Our excellent international sales and after-sales team is at your service and will take good care of you, our valued customer.
