Home LED Light Products Black Housing Bridgelux 3*1W LED Ceiling Down Light

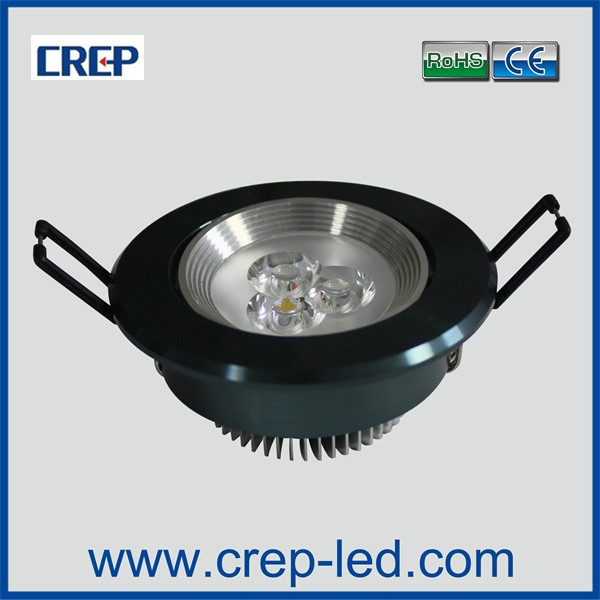

Black Housing Bridgelux 3*1W LED Ceiling Down Light

Black Housing Bridgelux 3*1W LED Ceiling Down Light
Price: US $ 2.60-3.50/Piece
Trade Terms: FOB
Min Order: 50/Piece
Pay Type: T/T,Paypal,Western Union
CREP-LED is specialized in LED down light R&D, maufacturing and marketing. With new structure patent and enforced by ISO9001: 2008 QS, All our LED down light pass CE. RoHS, FCC, CCC and etc certification.
We can supply 1W~12W LED ceiling down light,
4W~20W ivory white anti -glare led down light
6W hotel led down light,
5~10W AC LED down light without driver
3~20W COB or SMD chip led down light
Single or three head led grille down light

Item no. CPS-TD-D4W-02
Size of the product(mm): D86*40mm Cut-out: 72mm
Material: Aluminum +Glass Cover
Working Waltage(v): AC100-240V 50/60Hz
Power Consmp-tion(W): 4W
LED QTY(pcs): 3*1W Bridgelux and Epistar chips
Luminous flux: 100Lm
CCT: WW: 2700-3500K PW: 4000-4500K CW: 5000~5700K
CRI>80Ra
IP rate: IP40
Beam Angle(° ): 30/45
Working Temperature -25-+45
Working Humidity10%-95%
Lifespan(hrs)≥ 40000
MODEL  Size(mm)  Cut-out(mm)   Chip Power(W) Luminous Flux(lm)  Packing  housing color
CPS-TD-D2W-01  D68*45  55  1W  100  100PCS/CTN   gold/silver/black
CPS-TD-D4W-02  D85*40  72  3*1W  300  100PCS/CTN gold/silver/black
CPS-TD-D6W-08  D108*44  95  5*1W  500  64PCS/CTN   silver
CPS-TD-D14W-11  D135*44  120  12*1W  1200 36PCS/CTN   silver
Prod Model: CPS-TD-D4W-02
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Life: 50,000h
Certification: VDE
IP Rating: IP44
Color Temperature: Cool White
Installation: Embedded
Application: Indoor Lighting
Warranty: 3 Year
Lamp Body Material: COB LED Chip
Source Number: Three COB
Lamp Installation: LED Chip
CREP, a high-tech enterprise & vice-chairman in Shenzhen LED industry association, which is specialized in R & D, production and marketing of LED lighting. We keep working to make breakthrough on LED lighting and till now, achieved more than ten new structure patents and one China invention patent. The main product in application lighting includes LED commercial lighting, LED industrial lighting, LED decorative lighting and LED outdoor lighting.

Our company passed and strictly enforces the requirements of ISO9001 Quality management system to promote all products through CE, RoHS and FCC and other international safety certification. Some products have passed UL, DLC, TUV, SAA, ETL and PSE certification. We have consistently adhered to the operating principle of "market-orientation, quality-assurance, efficiency-improvement, innovation-motivation, resource-integration, service-first and competitive edge-enhancement", continue to improve corporate operations and product innovation to serve customers. We provide solutions for China domestic market, as well as for overseas countries like Europe, America, Japan, Southeast Asia and so on.

We welcome talents with open mind, fully exert their subjective initiative, and pursue continuous innovation and perfection. Gradually, we set up a highly qualitied team with more than 30 members who are junir and senior R&D professional in LED driver, indutial design, optial design, esthetics and industrial design. Meanwhile, introducing the advanced technology, components, production and testing equipment from Jupan, Germany, the United States and other countries to promote the company's productry-leading level.

CREP will always persist "Sincere Cooperation, Continuous Innovation and Future-challenging" to enhance competitive edge, to provide high quality products and good services for all our customers, and to stick to social returns and social responsibility.
