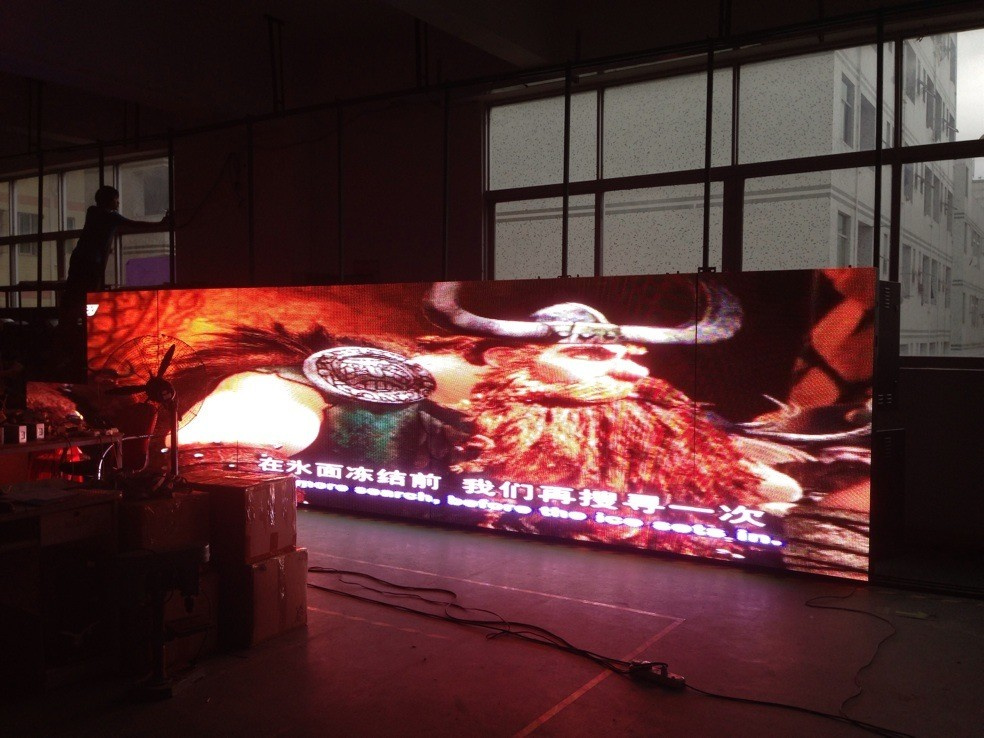

High resolution indoor full color SMD P8 LED display
1. Long lifespan
2. Large view angle
3. Hi-brightness
4. Good after-sales
Application: Entertainment center, stage background, train station, exitbition, shopping center, stadium etc.
Item |
Parameter |
|
Pixel |
Physical pixel pitch: 8 mm |
Pixel configuration: 1R1G1B |
|
Chip |
Wave |
Brightness |
Packing |
R |
Opto |
620-625nm |
250-350mcd |
SMD3528 |
G |
Silan |
525-530nm |
600-700mcd |
SMD3528 |
B |
Silan |
465-470nm |
100-150mcd |
SMD3528 |
Module |
Module resolution: 32*16 pixels |
|
Module size: 256*128 mm |
Cabinet |
Physical resolution: 128*98 pixels |
Cabinet size: 1024*768*(100-120) mm |
Physical density: 12288 pixels/cabinet |
Module quantity: pcs = 4 (w) x 6 (h) |
Material: Steel |
Weight: 32 Kg |
Electricity parameter |
Brightness: ≥ 1000 cd/m 2 |
Brightness adjusted: 100 grade by software, or by Auto-optic induced |
Color processing: 16bit |
Display color: 280 trillion |
Color temperature(k): 5000_ 9500 (choice by user) |
Physical density: 15625 pixels/m 2 |
Whole display flatness: ≤ 1mm juncture |
Best view distance: ≥ 13m |
Best view angle: Horizontal ± 140° , Vertical ± 140° |
Storage temperature: -35° C ~ +85° C Working temperature: -20° C ~ +50° C |
Driving method: Constant driving current Scan: 1/8 |
Refresh frequency: ≥ 2000Hz |
Frame rate: ≥ 60Hz |
Humidity(RH): ≤ 90~95% |
Protection grades : IP65 |
Working Voltage: DC 5V |
Power supply: AC 110 / 220V, 50/60Hz |
Average power consumption: 400 w/m 2 |
Max power consumption: 800 w/m 2 |
MTBF: 10, 000 hours |
Screen lifetime: 100, 000 hours |
Control system |
Control system: Linsn |
Signal interface: DVI |
Communication distance: Internet cable: ≤ 100m Fiber cable: 1000m |
Signal transfer mode: Pixels to pixels display synchronized |
