Best Quality P10 Outdoor Full Color LED Display Panel,
Widely used in large venue, stadiums, bank, government,
Terminal, dock, station, stock market, medical systems,
Electricity, exhibition etc.
Competitive prices! ! ! ! ! ! ! ! !
Features:
1. Outdoor full color LED Display, high brightness over 6000nits, visiable under direct sunshine
2. Energy saving 24% by using high efficiency IC driver and improved PCB design;
3. Higher contrast rate, showing sharp image quality
4. High refresh rate: Over 2000Hz/s, no scaning line
5.16384 grey scale, 16 bit color, high contrast ratio, good color uniformity, bringing amazing viewing effect.
6. Excellent waterproof standard, IP65, enabling the LED screen to work in all weather conditions;
7. With fast locks and waterproof connectors, very easy to install and dismantle
8.7. MBI5020, MBI5024, MBI5041, MBI5050 are optional
9. We offer 2 Years warranty.

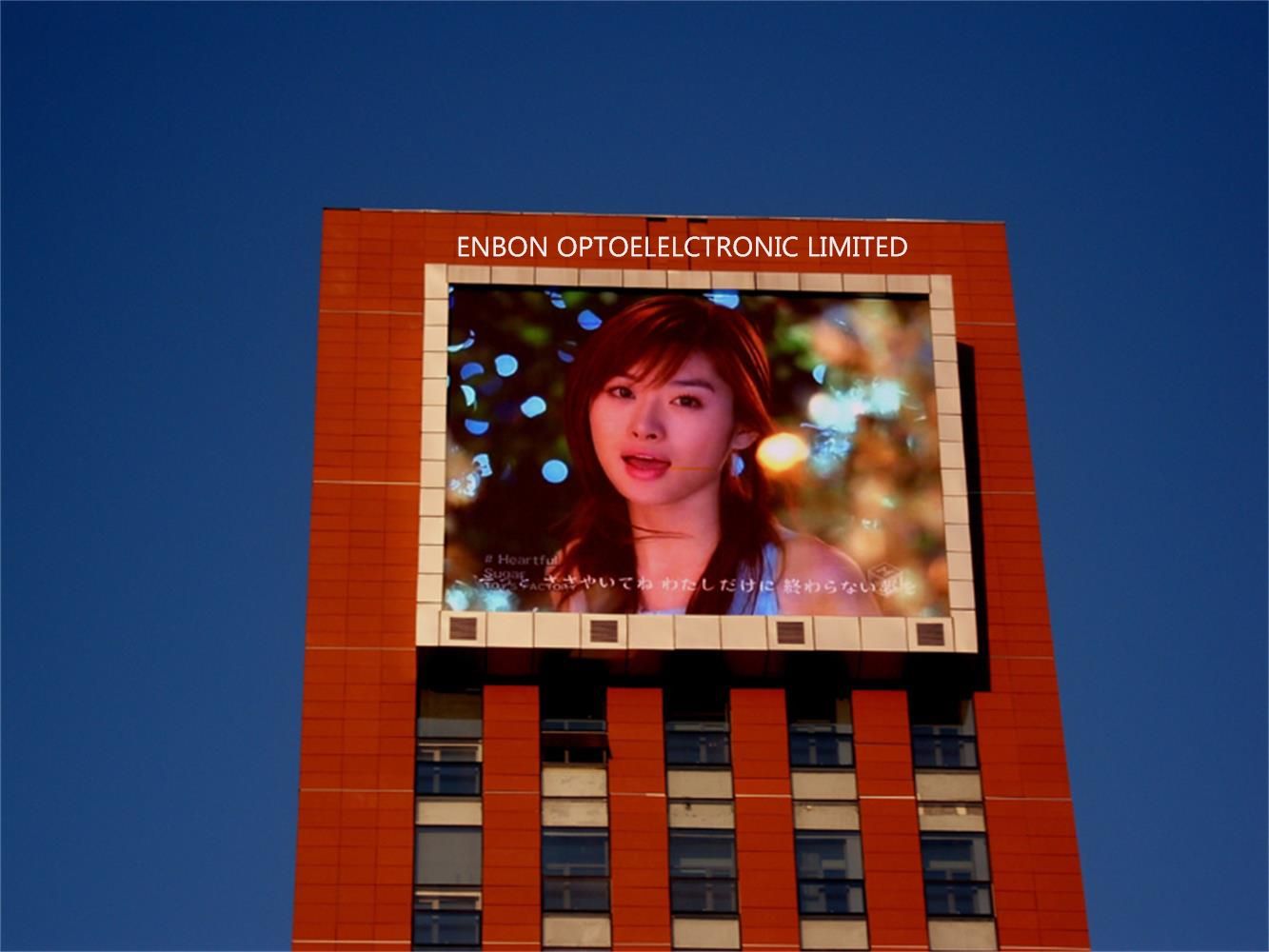

ENBON P10 outdoor LED sign is widely used for stadium, shopping mall, skyscraper, highway, traffic road where the viewing distance is long, screen size is big. P10 can show clear image while cost is not high.
Technical Prameters |
PROJECT | P10 outdoor LED display panel |
Pixel pitch | 10mm |
Pixel density | 10000 Pixels/sqm |
Module size(W*H) | 320 W(mm) | 160 H(mm) |
Module pixels(W*H) | 32 Pixels(W) | 16 Pixels(H) |
Pixel configuration | 1Red 1Green 1Blue |
Drive mode | constant current driving static scan |
LED lamp type | Epistar DIP346 |
Cabinet size(W*H*D) | 640 W(mm) | 640 H(mm) |
Cabinet resolution | 64 Pixels(W) | 64 Pixels(H) |
Color scale | 65,536 degree |
View angle(H/V) | 110/70 degree |
Brightness (White balance) | ≥7000cd/sqm. |
Power consumption(one cabinet) | Max:750W/sqm. Average:250W/sqm. |
Operating Voltage | AC100V±10% or 220V ±10%; 50---60HZ |
Net weight | 18 Kg / cabinet |
Operating temperature | -30°C----+60°C |
Operating humidity | 10%_95%RH |
Life time | ≥100,000hours |
MTBF | 5,000 hours |
Whole Display Flatness | ≤0.3mm Juncture |
Frame frequency | >60 Hz/s |
Refresh rate | ≥1500Hz /s |
Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
Power | 110V/220V±15% 50--60Hz |
LED control system | LINSN,Dbstar,Nova-star,ZDEC,Colorlight is selectable |
Operating system | Windows 2000 / Windows Xp / Windows 7 / windows8/ windows 10 |
Protections for outdoor display | IP65 |
Maintenance way | Rear Access |
Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
