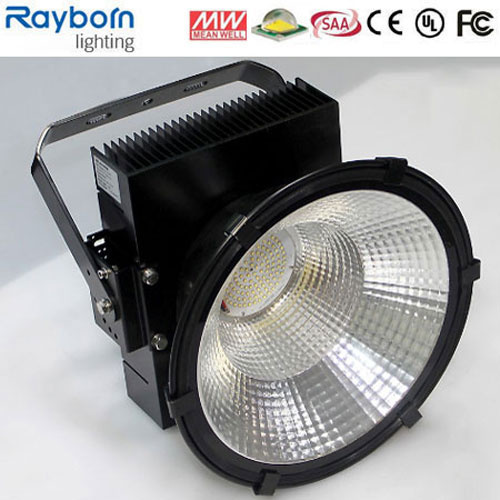

Best price Mean well 150W/200W/300W/400W/500W LED High Bay Retrofit Light
Product Specifications:
200W LED Industrial Light Main Technical Parameters |
| Item No.: | RB-HB-200WB |
| Input Voltage: | AC 100-277V |
| Freqency Range: | 50Hz~60Hz |
| LED Chip: | Samsung/CREE |
| Power Driver: | Mean Well |
| Power Factor: | >0.98 |
| Power Efficiency: | >91% |
| LED Power | 200W |
| LED Working Voltage: | DC 30~36V |
| System Consumption: | 206W |
| LED Luminous Flux | Warm White | 19200LM |
| Pure White | 20590LM |
| Cool White | 20590LM |
| Viewing Angle: | 120degree |
| MaximumIlluminance | Height 3M | 792LUX |
| Height 4M | 446LUX |
| Height 5M | 285LUX |
| Illuminance Area | Height 3M | Dia.8.7 M points visible |
| Height 4M | Dia.11.5M points visible |
| Height 5M | Dia.14.5 M points visible |
| Illuminance Uniformity: | >0.6 |
| Color Temperature | Warm White | 3000K~3500K |
| Pure White | 5500K~5700K |
| Cool White | 6500K~6700K |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| IP Grade: | IP65 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 mm three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
LED high bay Applications:
1. Workshop, factory, warehouse, highway toll station.
2. Gas station, supermarket, exhibition, gym.
3. The hall conference room mall golf course such as ship panoramic lighting at the airport
Industrial led lighting Features:
1. Using high chrome plating fins aluminum as heat sink.
2. Using Cree/Samsung LED chip
3. Using Mean Well power driver
4. IP level is IP65, Can be used outdoor.
5. Base: Hook with safety rope
6. Beam angle: 25/60/90°
7. With two pieces safety cable.
8. Energy saving than traditional lamp about 70%~80%
9. Main part of heat dissipation is under the protection of several patents
10. Compliance with CE&RoHS&FCC&PSE&ULstandard regulations
11. Meeting the specifications of the traditional lamp can directly replace the traditional mercury lamp, No additional construction
High Power High Bay Light Competitive Advantage:
1. CE & RoHS & TUV UL approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 5-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
Lead time for hot sale 500w LED industrial light
1 Less than 50 pcs: 2-7 working days.
2 Between 50 pcs and 1000 pcs: 7-18 working days.
3 More than 1000 pcs: 19-30 working days.
Our service:
1. Your inquiry related to our products or prices will be replied in 24hrs
2. Quality Feedback: Reply within 24 hours, treatment is given 3 days
3. OEM &ODM, any your customized lighting we can help you to design and put into product.
4. Distributorship are offered for your unique design and some our current models
5. Protection of your sales area, ideas of design and all your private information
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
