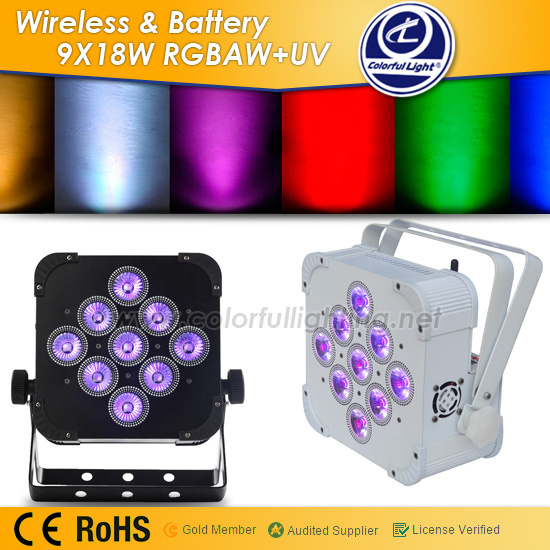

Battery Powered 9x18w RGBAWUV 6in1 LED Wireless Par
Using the 15000MAH lithium battery which is more powerfull can give more hours battery backup
4 show grids on the back of light, can be more intuitive recognition of the battery capacity
The new structure, improve product stability
More shortly charging time
Low noise fan, give the user a better experience
9 RGBW/RGBA 4in1
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 95W
battery capacity: 15000MAH lithium battery
Light source: 9pcs 10W high brightness 4 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(±5) degree
PWM Frequency: 2000Hz, HD Video Flicker Free
Color: 16.7 million kinds of color change
Lux: 7.000@1m
Control channels: 4/7 chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button) : Color change, color strobe, color dimmer,color gradual change/color jump change
Operation menu: 4 digital LED display
9 RGBWA 5in1
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 135W
battery capacity:15000MAH lithium battery
Light source: 9pcs 15W high brightness 5 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(±5) degree
PWM Frequency: 2000Hz, HD Video Flicker Free
Color: 16.7 million kinds of color change
Lux: 9.000@1m
Control channels: 5/9 chs
Control mode: DMX512, master/slave, auto, sound active (can order wireless DMX512 also)
Automatic model(by function button) : Color change, color strobe, color dimmer, color gradual change/color jump change
Operation menu: 4 digital LED display
9 RGBAW+UV 6in1
With Built- in 2.4G Wireless DMX 512 Receiver
With Battery indicator, 4 show grids on the light
Power supply: AC110V-250V
Frequency: 50-60Hz
Power consumption: 160W
battery capacity:15000MAH lithium battery
Light source: 9pcs 18W high brightness 6 in 1 leds
Lamp life: 6-10 ten thousand hrs
LED angle: 30(±5) degree
PWM Frequency: 2000Hz, HD Video Flicker Free
Color: 16.7 million kinds of color change
Lux: 12.000@1m
Control channels: 6/10 chs
Control mode: wireless DMX512, master/slave, auto, sound active
Automatic model(by function button) : color change, color strobe, color dimmer,color gradual change/color jump change
Operation menu: 4 digital LED display
Add new function: Battery Powered (rechargeable)
To have the portable light connected to house power by the power cord, it can be charged fully after continuously charging for 4 hours. Once fully charged, the battery supports continuous talk time up to 4-6 hours with AUTO mode combination of colors; about 6-8 hours if single color
DMX Channels for Battery Powered & Wireless 9x18w RGBAW + UV LED Par Stage Light(CL-WTP9)
6CH Mode
|
Value | Description |
| CH1 | 0 | No action |
| 1-255 | RED dimmer |
| CH2 | 0 | No action |
| 1-255 | GREEN dimmer |
| CH3 | 0 | No action |
| 1-255 | BLUE dimmer |
| CH4 | 0 | No action |
| 1-255 | WHITE dimmer |
| CH5 | 0 | No action |
| 1-255 | AMBER dimmer |
| CH6 | 0 | No action |
| 1-255 | UV dimmer |
10CH Mode
|
Value | Description |
| CH1 | 0 | No action |
| 1-255 | RGBAW+UV dimmer |
| CH2 | 0-4 | No action |
| 5-255 | Strobe from slow to fast |
| CH3 | 0-50 | NO action |
| 51-100 | Color jump |
| 101-200 | Color dimmer |
| 201-255 | Sound active |
| CH4 | 0 | No action |
| 1-255 | Speed from slow to fast |
| CH5 | 0 | No action |
| 1-255 | Red dimmer |
| CH6 | 0 | No action |
| 1-255 | Green dimmer |
| CH7 | 0 | No action |
| 1-255 | Blue dimmer |
| CH8 | 0 | No action |
| 1-255 | White dimmer |
| CH9 | 0 | No action |
| 1-255 | Amber dimmer |
| CH10 | 0 | No action |
| 1-255 | UV dimmer |
Package:
| Light | Wireless par, battary led uplighting, RGBAWUV 6in1 led par can, led par stage light |
| Carton packing Size | 400*245*500mm(4 in 1) |
| G.W. | 17.5KG |
| Charging flight case(6in1) Size | 620*430*430mm(6 in 1) |
| G.W. | 40kg |
| Charging flight case(8in1) Size | 700*550*430mm(8 in 1) |
| G.W. | 50kg |
