Home LED Light Products Backlight LED Panel Light Shining Series

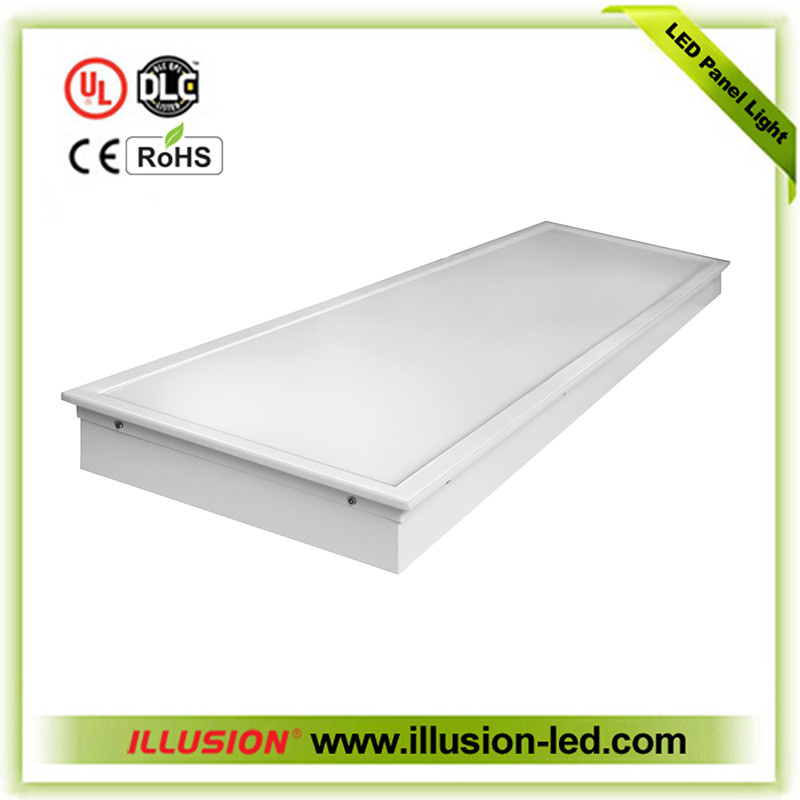

Backlight LED Panel Light Shining Series

Backlight LED Panel Light Shining Series
Price: US $ 20.00-21.89/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Paypal,Western Union
(1) Backlight LED Panel Light with high cost performance
(2) Size: 595×595×56mm, 295×295×56mm, 295×595×56mm, 295×1195×56mm, 596×1195×56mm
(3) Power supply: Certified/ Uncertified options
(4) EMC standard driver
(5) PF>0.9, THD<10%, No flicker
(6) Luminous Efficiency: 80lm-100lm/w
(7) Long Lifetime: 50,000H
(8) 3 Years Warranty
(9) Environmental Friendly

Technical Parameters:

Part No.
CCT(K)Input Voltage(V)Power (W)LED QtyLuminous Flux(LM)CRIDimension(mm)


PAB303m


3000/4000/6000
AC100-240V9W90pcs SMD2835720>=80295*295*56

PAB306m
3000/4000/6000AC100-240V15W192pcs SMD28351200>=80295*595*56
PAB312m3000/4000/6000AC100-240V38W
3000
295*1195*56


PAB606m


3000/4000/6000
AC100-240V36W180pcs SMD28352900>=80595*595*56


PAB612m


3000/4000/6000
AC100-240V54W384pcs SMD28354050>=80595*1195*56


Application:
Meeting room, office, home lighting, hallway and other indoor lighting places.

Company Profile:
ILLUSION LED LIMITED, established in 2006, concentrates on LED strips, LED modules, LED panels, LED tubes, LED downlights, LED spotlights and so on. We are the only factory in Shenzhen with complete industrial chain for LED illumination field. Own strong R&D technology and system complete solution, excellent quality control and advanced manufacturing equipment. Can cover all industry, including the product's research design, package, LED driver, the structure of hardware, assembling and testing of lamps, lighting design and installation.

Illusion has devoted to oversea market for 9 years with network spreading all over the world. Therefore, we win the widespread acclaim of the market and customers, honored with "precursor and leader of Shenzhen LED lighting industry".

There are more than 30 design engineers to supply high quality product and solutions for our cooperators at any time and to bring energy-saving and eco-environment LED lightings for consumers.

ILLUSION has run strictly according to ISO9001:2008 quality control system, accumulating rich advanced production management experience, and built a set of effective quality management system and perfect quality supervision and detection method. Till now, the products have passed GS, DLC, SAA, UL, ETL, CE, EMC, ROHS and other international authoritative certifications.

ILLUSION adheres to the management aim that prestige is the first, customer the supreme, perfection the most important, with the idea of "Honesty, creativity, practice, efficiency" to be service of the customers all over the world.  Earnestly carry out the social responsibility, sufficient notice to the customer's interests. Do our best for the development of global lighting industry.
Prod Model: PAB303m, PAB306m, PAB312m, PAB606m, PAB612m
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cct: 3,000k/4,000k/6,000k
Power: 9W/15W/38W/36W/54W
Dimension: 295*295*56/295*595*59/295*1195*56/595*595*56...
CRI: >=80
Lumen: 720/1200/3000/2900/4050
Light Source: LED
Appearance: Square
Type: Hanging
Certification: UL
Base Material: Metal
Voltage: 100-240V
Emitting Color: Warm White, Nature White, Cool White
Housing Material: Aluminum
Beam Angle: 120
Dimmable: Both with Dimmable and Without Dimmable
ILLUSION LED LIMITED, established in 2006, concentrates on LED tube light, LED Panel Light, LED Downlight, LED Strip Light, LED Surface Mounted Ceiling Light, LED High Bay, LED Street Light and so on. We are the only factory in Huizhou with complete industrial chain for LED illumination field. Own strong R&D technology and system complete solution, excellent quality control and advanced manufacturing equipment. Can cover all industry, including the product's research design, package, LED driver, the structure of hardware, assembling and testing of lamps, lighting design and installation.

Illusion has devoted to oversea market for 9 years, network spreading all over the world. Win the widespread acclaim of the market and customers, honored with the precursor and leader of Shenzhen LED lighting industry.

There are over 30 design engineers to supply high quality product and solutions for our cooperators at any time, to bring energy-saving and eco-environment LED lightings for consumers.

ILLUSION has run strictly according to ISO9001: 2008 quality control system, accumulating rich advanced production management experience, and build a set of effective quality management system and perfect quality supervision and detection method. Till now, the products have passed GS, DLC, SAA, UL, ETL, CE, EMC, RoHS and other international authoritative certifications.

ILLUSION adheres to "Prestige first, customer is supreme, pursuing perfect" management aim, with the idea of "Honesty, creativity, pragmatic, efficient" to be service of the customers all over the world. Earnestly carry out the social responsibility, sufficient notice to the customer's interests.

Do our best for the development of global lighting industry.
