Energy Saving Explosion Proof Light
Shenzhen Nibbe Optoelectronic Technology Co., Ltd. Is a high & new tech enterprise, specialized in developing, producing, and marketing LED Flame Proof Lamp, LED tri-proof lightings, LED commercial lightings, explosion-proof electric appliances, lighting fixture installation accessories, and etc. We are the supplier for several famous enterprises, such as SINOPEC, CNPC, CNOOC, and etc. Our products have been exported to Japan, Europe, South America, Middle East, and other more than 20 countries and regions.

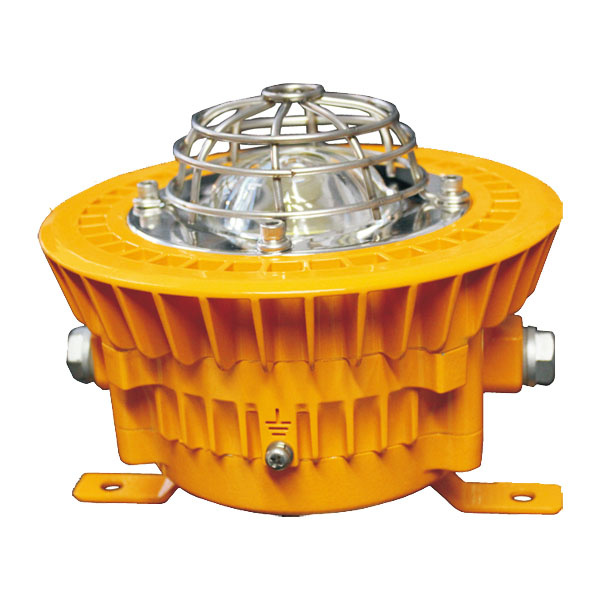

LED Explosion Proof Flood Lamp
Special Features:
Secure and outstanding energy saving performance
Compliant with CE standards and RoHS Directive
Competitive price
Universal input voltage
AC/DC both work
Typical applications:
Mining tunnel
Factory
Petrol station
Inflammable area
Detonable area
Competitive highlights:
Substantial energy saving more than 50% compared with fluorescent ex-proof lamp
Explosion proof housing for security required area
Auto recharged lithium battery inside, special emergency lighting function when power accidentally shutdown
Save more lives during mining collapses and other disasters
Patented power supply technology, electricity surge and overheating auto-protection
Patented heat dissipation technology, 50, 000 hours long life with minimum luminous decay
40V-400V wide range of input voltage, AC/DC both work without any adapter or transformer
High power factor to minimize the harmonic distortion
Instant start and flicker free when working to reduce the eyestrain
Very even light distribution and high uniformity, no glare to eyes
Good color rendering, vivid colors under our LED lamp
Patented LED package technology and housing design
DC 12V and 24V version also available for solar power and other applications
Energy Saving Explosion Proof Light
| Parameter | Value |
| Power Consumption | 60W/80W/100W/120W |
| Input Voltage | AC 95-305V or 24V DC |
| Frequency | 47-63 Hz |
| Beam Angle | 60° /90° /120° /140° |
| Explosion-proof Grade | Ex d II B T5 |
| Corrosion-proof Grade | WF2 |
| IP Grade | IP66 |
| Power Factor | > 0.95 |
| Total Harmonic Current | < 15% |
| Lamp Efficiency(%) | ≥ 90% |
| Color Temperature(K) | Warm white: 2700-4000K; Pure white: 5000-6500K |
| Junction Temperature(TJ)) | < 65° C |
| Color Rendering Index(CRI) | Ra> 70 |
| Light Effect | > 90lm/W |
| Ambient Environment | Temperature: -50° C~55° C; Humidity: 10-90%RH(25° C) |
| Storage Temperature | -50° C-60° C |
| Lifespan | > 50000Hs |
| Material | Aluminum Alloy |
| Installation Height | 4~10m(flood light)/10~30m(project light) |
| Dimension(mm) | 300× 300× 227mm |
| Net Weight | 6.5Kg |
| Certificate | CE, ATEX,RoHS, CNEX, LC(UL&CSA) listed |
