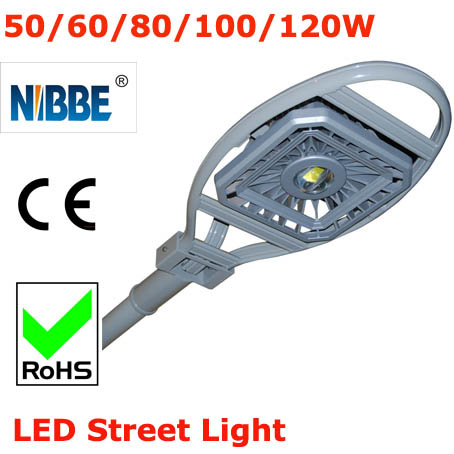

Atex Explosion Proof LED Street Light

Explosion Proof LED Street Light

Shenzhen Nibbe Optoelectronic Technology Co., Ltd. Is a high & new tech enterprise, specialized in developing, producing, and marketing LED explosion-proof lightings, LED tri-proof lightings, LED commercial lightings, explosion-proof electric appliances, lighting fixture installation accessories, and etc. We are the supplier for several famous enterprises, such as SINOPEC, CNPC, CNOOC, and etc. Our products have been exported to Japan, Europe, South America, Middle East, and other more than 20 countries and regions.


Explosion Proof LED Street Light

1.100W LED Explosion Proof Street light
2. CE&RoHS. CNEX, ATEX, LC(UL&CSA)
3. High qualtiy, using Bridgelux LED chip & 3 years warranty.
4.95-265V alternating current and 24V direct current for option;
5. Die casting aluminum housing, with anti-static and anti-corrosion coating, high explosion-proof degree of flameproof type; Dust-proof, waterproof; It can safely worked in explosive environment, moist environment, acid-base environment.
6. Light source adopt famous brand chip encapsulation, light degradation is less than 30% after light up 50, 000 hours.
7. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
8. Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality for standard requirement of street light;
9. Patented appearance design, beautiful appearance with simple structure, it can be used as solar LED street light when working at 24V DC.




1. Applied to high way, main road, minor road, city streets, pavement, squares, schools, parks, yards, residential areas, factories, oil fields, oil refineries, power plants, gas stations, and other places where light is needed.



2. Characteristics of Product
(1) High efficient LED module is adopted as light source and most advanced electrical technology is applied. This enables low power consumption, efficient light-emitting and instant lighting at the same time.
(2) The light has unique structure; Simple and compact but ideal for heat diffusion (patented), tight enough for sealing (waterproof and dust prevention of IP66) and tough against shocks and corrosions. This assures long service life of the light.
(3) By unique optical design, light irradiation range is wide and illumination intensity is high.
(4) There are various mounting options and mounting is very easy.



4. How to mount and use
(1) Fix with 60mm pole.
(2) After having fixed the light, connect cable of the light with cable from AC power source. 0.5m long triple core cable of 10mm diameter is equipped with the light. There are triple core lines in the cable of the light and markings on the lines, indicating live line (L), neutral line (N) and ground line (E). Connect each line rightly with line in the cable from the AC power source, respectively.
(3) Switch on the light. It will shine instantly.

5. Attentions
(1) Before mounting and use of the light, read through this Instructions and check whether voltage of power source conforms to that required for the light. If not, it may cause breakdown of the light.
(2) Make surface of the light case and lens clean to ensure light transmittance and heat diffusion.
(3) Be careful not to have the light case contacted to hard materials in order to avoid scratches.
(4) Do not let amateur mount the light.
(5) Never neglect to ground the light. It is important to ensure security of power source and protection from lightening surge of the light.
(6) Ambient temperature for the light should be in the range from -50 to 50. When it exceeds 50, make forceful ventilation to accelerate heat diffusion.
(7) Repairs and maintenance
