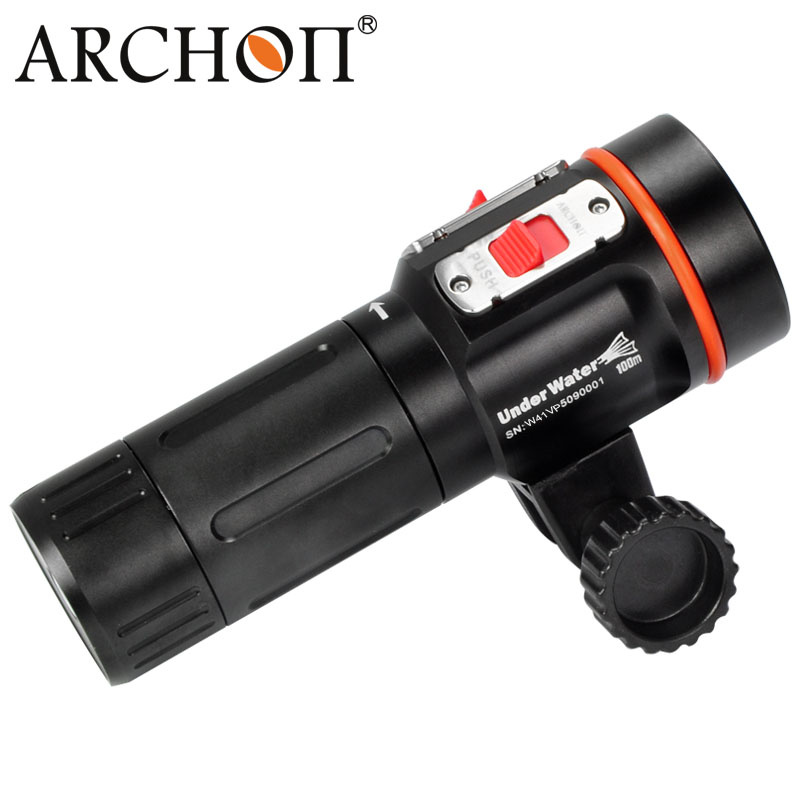

W41VP DIVE VIDEO AND PHOTOGRAPHY PRODUCT SPECIFICATIONS:
Model: W41VP(2,600lumens multifunction underwater video and photography Light)
Description: Multifunction diving video light and phtography light
OPERATING MODES:
Switch 1: White(Video light):high>Low>Storbe>OFF
Switch 2: White (Spot light) :Red>UV>OFF
The two switches can be operated separately or simultaneously
LIGHTS SOURCE:
Bulb: White (Video light):CREE XM-L2 U2 LED *4 (max 2600 Lumens);
White (Spot light):Cree XP-G2 *2 (Max 600Lumens)
Red CREE XP-E LED*2 (max 200 Lumens,620nm)
UV LED*2 (max 6W,365nm)
Color temperature: White (Video light): 5000-5500k;
White (Spot light):6500K
Reflector: Glossy aluminium reflector ( spot light only)
Lens: 4mm Polycarbonate Board;
Angle of light beam:110 degree (video light ),10 degree ( spot light)
BUILD:
Body material: Durable aircraft-grade aluminum;
Maximum operating depth: 100 meters deep
Surface treatment: Premium Type Ill hard-anodizing.
Color: Black
Dimensions:145mm (length)*50mm (dia. Of head),41mm(dia.of lamp body)
Impact resistance: 1.5M.
Waterproof:Underwater 100Meters
Underwater Weight: 250 grams (with battery)
Weight in air: Ca.332g (without battery);Ca.470g(with battery)
OPERATION VOLTAGE:4.2V to 2.8V.
BATTERY:
Battery: 32650 Li- ion battery *1.
LOW BATTERY WARRANTY:
The light flash 3 times if the power capacity is less than 10%;it repeat after 5 seconds,and then switches to lower brightness .The light switches off when the power capacity is less than 5%.
RUNTIME:
White (video light):high 90 min,low 180 min,strobe 120 min.
White(spot light):150 min
Red:180 min
UV:300 min
Operation Instruction
1. Successively push the switch 1 ON - OFF to cycle through White (video light) high,low,strobe,and off. (After each push the switch will slide back to the original position automatically)
2. Successivly push the switch 2 ON - OFF to cycle through White (spot light),red,UV and off.
3. Both switches can be turned on or off simultaneously or seperately.(If the switch gets stuck,please add the washing liquid in the switch slot,push switch back and forth till it moves smoothly.Please rinse it with the clearn water afterwards.
SAFETY FEATURES:
Battery over-discharging protection
Polarity reversing protection.
Gas release valve
