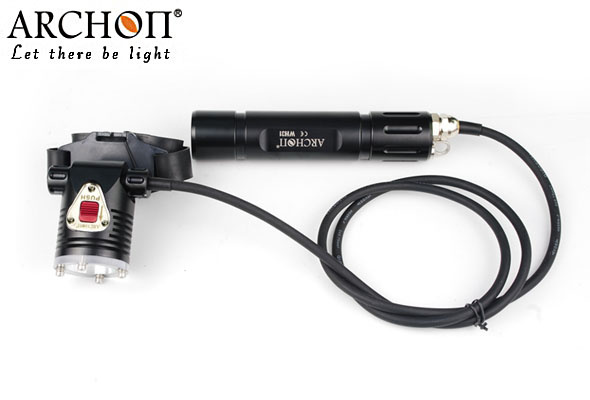

ARCHON 10Watts Umbilical Diving Canister Lights WH31 (CE&RoHS)
Specification:
Model: WH31 Canister Diving Light/Diving Headlight
Bulb: CREE XM-L U2 LED (Max 1000 Lumens)
Color temperature: 6500k.
Three output levels. High> Low>Strobe
Runtime: High: 210 min, Low: 360 min, Strobe: 300 min
Light head: 80° Vertical adjustable
Reflector: Glossy Aluminum reflector
Lens: 6mm Polycarbonate Board.
Body material: Durable aircraft-grade aluminum.
Angle of light beam 10° Hot spot, 110° Periphery
Surface treatment: Premium Type III hard-anodizing.
Color: Black
Battery: 26650 Li- ion battery *2 in canister
With battery over-discharging protection, polarity reversing protection
Operation voltage: 6V to 10V.
Waterproof: 100 meters underwater
Dimensions: Light head: 70mm (length) *46mm (dia. Of head); Canister: 166(length)*36mm (dia. Of body)
Weight: 513 grams (without batteries); 695 grams (with batteries)
Underwater Weight: 360 grams (with batteries)
Impact resistance: 1.5M.
BATTERY INSTALLATION
1. Remove the top cover of the canister by turning counter-clockwise.
2. Remove used batteries and replace with fresh batteries as shown by the polarity stickers.
3. Mount the cover by turning clockwise.
BATTERY CHARGING
1. Plug the charger in the wall power socket, the indicator light is green in the free-load status.
2. Put the battery in the slot of the charger.
3. The indicator light is red if the battery is not fully charged; It will turn green after fully charged.
4. Take out the fully charged battery and use them in the canister.
ON/OFF
Push the switch forward to activate the light.
The switch will go back to original position automatically.
MODES CHANGING
Successive switch ON-OFF within two seconds to cycle through high, low, strobe.
SCUBA DIVING APPLICATION
Check closely for cuts, scratches, or an otherwise damaged o-ring or mating lens surface as this can cause the light to flood under pressure. Remove any salt deposits, sand, dirt, or other foreign matter from the o-ring sealing surfaces.
KEEP THE THREADS, O-RING GROOVE LUBRICATED WITH SILICONE GREASE.
CAUTION
If the light is not to be used for some time, remove the batteries to prevent possible leakage or corrosion. Please remove the batteries during transportation to prevent it from misoperation.
WARRANTY RETURN POLICY
Please contact your local distributor or retailer for information on how to handle your warranty items.
REPLACEMENT PARTS
CAT# DESCRIPTION
DH258 O-ring
DH259 Lens
| Diving lights |
| Model | Light source | Color Temp. | Brightness | Running time | Battery | Weight |
| W16S | CREE XM-L | 6500K | 860LM | 1.5H | 1*18650 | 110G |
| W16 | CREE XP-G | 6500K | 340LM | 3-10H | 1*18650 | 210G |
| W16XL | CREE XM-L | 6500K | 860LM | 1.5-5H | 1*18650 | 210G |
| W12A | CREE XM-L | 6500K | 650LM | 2-5H | 6*AA | 550G |
| W26 | CREE XM-L | 6500K | 1000LM | 1.8-6H | 2*18650 | 370G |
| W28 | CREE XM-L | 6500K | 1000LM | 4-7H | 2*26650 | 450G |
| W39 | 3*CREE XM-L | 6500K | 3000LM | 4-9H | 3*26650 | 800G |
| W51 | 5*CREE XM-L | 6500K | 5000LM | 3-9H | 4*32650 | 1600G |
| WG90 | SBT-90/SST90 | 6500K | 2200lm | 3H | 6*18650 | 1300G |
| lights for photograph and video taking |
| W17V | CREE XM-L | 5000K | 860LM | 1.5H | 1*18650 | 140G |
| W16U | CREE XM-L | 5000K | 680LM | 1.5H | 1*18650 | 190G |
| W38VR | CREE XM-L&XP-E R | 5000K | 1400LM/200LM | White:1.5-4H
Red:4H | 1*32650 | 290G |
| W40VR | CREE XM-L2&XP-E Red&UV | 5000K | 2400LM/200LM/UV 6W | White:1.5-3H
Red:4H &UV:3H | 1*32650 | 350G |
| W28V | CREE XM-L | 5000K | 860LM | 1.5H | 1*18650 | 140G |
| W106W | 100WSWC | 5000K | 10000LM | 1.5H | 12*18650 | 800G |
| Canister diving lights |
| WH31 | CREE XM-L | 6500K | 1000LM | 3-6H | 2*26650 | 513G |
| WH32 | CREE XM-L2 | 6500K | 1100LM | 3-6H | 2*26650 | 545G |
| WH36 | CREE XM-L | 6500K | 3000LM | 3.5-7H | 3*26650 | 1000G |
