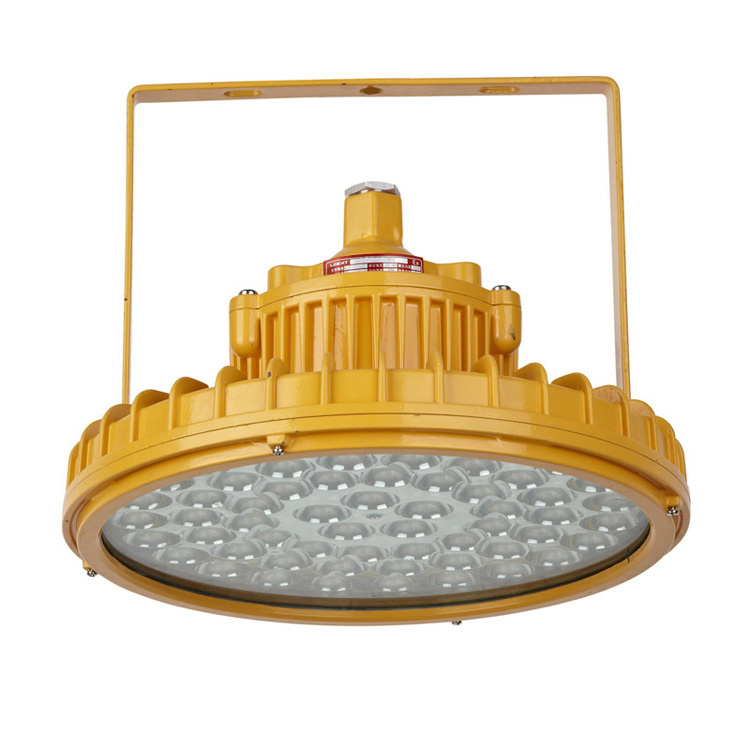

Explosion Proof LED Light, LED Lighting, Industrial Light
LGEXT is a professional manufacturer of Mining explosion proof light, Explosion proof electrodeless lamp, Fixed explosion proof lighting, Portable explosion proof lighting, Fixed industrial lighting, Portable industrial lighting, Explosion proof distribution box. Contact us freely for the sample and price as you like.
Applications:
Applicable for class || A , || B explosive gas mixture, temp. group T1 T6 , 1 and 2 zone; non-conductive combustible dust environment 20, 21, and 22 districts. Suitable for explosive proof workplace lighting of petroleum extraction, refining, chemical, military, marine, electric power, hazardous environments, oil platform and cruise ship etc.
Performance:
1: Optical system features: Optimal import chip, has excellent maintenance rate and high efficiency, Using surface mount technology (SMT), greatly improve the heat conduction performance, careful design of honeycomb light distribution structure, effectively improved the lighting efficiency.
2: Drive system features: the use of a constant current drive, short circuit, overvoltage protection function, with excellent electromagnetic compatibility, not for other electrical appliances, transmission net work electromagnetic interference resistance ability. With wide voltage compatibility characteristics, tolerance of 20% voltage fluctuation. Drive power supply suing glue seal technology, Ensure that the element is not affected by corrosion.
3: Heat radiating system features: carefully designed three cavity independent structure, ensure the stable work of electronic components. Elaborate design with air diversion heat wind guiding groove, ensure that the LED source of life. Carefully design the independent power supply cavity structure, power from LED heat effect, ensure the stability and longevity.
4: The whole lamp structure features: II C explosion proof structure, and IP66 protection grade, excellent explosion proof protective performance. The high boron silicon glass, can be affected by high energy impact. All exposed fasteners and accessories are made of high anti corrosion properties of stainless steel material.
5: Lamps can be another configuration of explosion proof emergency power supply device, when the power supply network sudden failure of normal lighting after cessation, lamps can instantly and automatically switch to the state of emergency lighting.
Quality assurance:
This product in strict accordance with the ISO9001:2008 quality management system standards for quality control, ensure product quality is higher than national standard. Fully meet the design requirements, products 6 years warranty (light source 1 year) since the purchase within 6 years from the date of buy, any fault occurs under normal operation by the company responsible for the free maintenance.
| Explosion proof mark | Exd II CT6 |
| Rated voltage | AC/DC 220V 50HZ |
| Rated power | LED 10W, 20W,30W, 40W, 50W, 70W, 100W,120W |
| Color temperature | 5000-5500K |
| Protective class | IP66 |
| Anti-corrosion class | WF2 |
| Inlet thread | G3/4 |
| For cable diameter | 8mm-14mm |
| Installation | Ceiling, support, ceiling wall, fence, flange type |
| Weight | 4.5kg |
Haiyangwang Explosion-Proof Technology Stock Co., Ltd. is located in national scenic spot of Yandangshan foothill, adjacent to 104 national highway and Yong-Tai-Wen highway, covers the area of more than 30 mu, it is one of the key production enterprise of our country explosion proof electrical industry, China petrochemical materials market member unit, China petroleum cooperation network member unit of first tier supplier.
The company since its inception, always pay attention to the training, and set up a strong technical team, has high, intermediate technical personnel more than 100, the company developed a number of products won the national patent of invention, the company well-equipped. The main production equipment, test equipment in the domestic advanced level, professional production and sale of mine explosion proof lamp, explosion proof electrical appliance, explosion proof pipe fitting, explosion proof instrument, explosion proof fan, explosion proof and anticorrosion product, industrial lighting, portable lighting, fixed lighting etc, more than 100 series with more than 1000 specifications of the products. Especially lead the industry trend with LED explosion proof lamp and explosion proof electrodeless lamp, all products are in strict accordance with relevant national standard design and manufacture, and with the characteristics of compact design, beautiful shape, easy inspection, completely matching function. Widely used in coal, petroleum, petrochemical, power plant, power grid, metallurgy, railway, shipping, lighting engineering, medical, aerospace, military industry, large enterprise, public fire-fighting, municipal administration etc, the products sell well in the whole country. Also establish a good cooperation relationship with daqing, shengli, jianghan oilfield and dushanzi petrochemical and other large enterprise. Meanwhile exported it well to Central Asia, East Asia, North America and other regions.
The company has been rewarded by "explosion-proof certification" and "coal security certification", "national industrial production license", "3C certificate", PICC Chinese People's insurance company underwriting" and many other honors. The company has set up offices and agencies in every provincial capital city of the country, marketing network covering the basic national market, being able to the needs of customer, expectation and satisfaction keeping sensitivity continuously, and providing customer with high performance, professionalism and agility service.
The company always pay close attention to and tracking explosion proof industry development, constantly upgrading technology. Keeping the product, technology and processing, testing equipment advanced. Quality is LGEXT life, the quality of product of the rigorous attitude and the spirit of excellence, exquisite manufacturing technology from the beginning of the enterprise to the blood stream. The company has established perfect quality assurance system and quality evaluation system, from the production planning, process equipment to determine the equipment maintenance, from raw material to finished products in storage, every is under the careful supervision. LGEXT has won long-term trust from user. LGEXT service throughout the entire product life cycle.
In the fierce market competition, LGEXT always adhere to the" quality and production, the credibility of development" for the purpose, always with "customer satisfaction" as the pursuit of target. To make LGEXT into a leading enterprise of strong international competitiveness.
