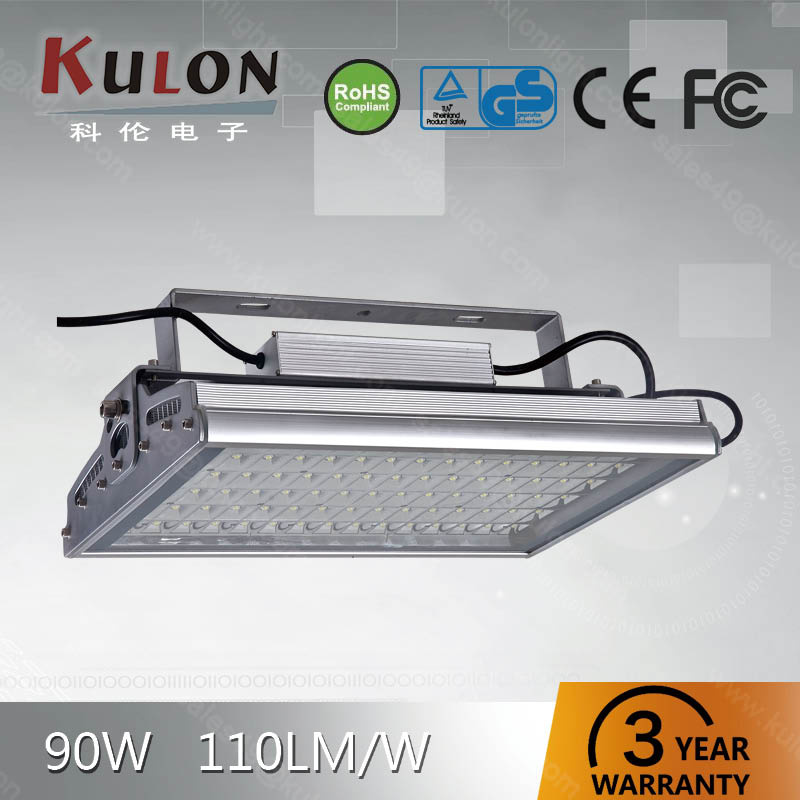

Aluminum Lamp Body Material and LED Light Source 90w led high bay light:
Product Benefits
HIGH-GRADE LED LUMINOUS SORUCE
Professional encapsulation with BRIDGELUX or EPISTAR LED chip makes the LED obtaining excellent
protection of optical attenuation and heat conduction ratio.
STABLE, EFFICIENT LED DRIVER
Utilizing World's leading MEAN WELL LED Driver, great luminaire stability, lifespan and optimal performance status.
UNIQUE OPTICAL SYSTEM
Designed the different beam angle directly from LEDs lens, available in 60º and 120º illuminated angle. Mirror surface processed reflector could collect the invalid light and reflect them into effective.
Features & Advantages:
1. Bridgelux luminous source
2. High Reliable MEANWELL HLG driver,(1-10VDC, Resistance, PWM or time dimming function available)
3. KULON 3rd GENERATION LED MODULE: Exquisite design with powerful thermal performance, as well as high reliable waterproof
4. Over then 100,000 hours operation life with 5 Years Warranty.
5. Available for 60°, 90° and 110° beam angle.
6. K10&IP66 (testing reports available)
7. 10KV surge protection or motion sensor available.
8. Adjustable mounting bracket or suspension wire mounted hang installation method available
9. UL, DLC, RoHS, CE, GS, CB certificated is pending.
10. IES file or Dialux simulation for lighting solution is available.
Specification:
Model No. |
K-GKD90WD |
Nominal Wattage |
100W |
Nominal Voltage |
AC 100-240V, 50/60Hz DC 12V /24V |
Maximum Current |
AC 0.36A -120V, 0.18A -240V DC 3.24A -12V, 1.62A -24V |
Optimal OperatingTemperature |
-40 ºC to +50 ºC |
Power Factor (PF) |
> 0.9 |
Driver Efficiency |
> 90% |
Lumen Output |
8500lm / 9000lm |
CRI |
Ra >= 75 |
CCT |
3000K 4000K 5000K 6000K |
IP Rating |
IP65 |
Lifetime |
50000 hours |
Heat Radiator |
Anodized Aluminum |
Lens |
Toughened Glass |
Fixture Dimension |
476 x320 x174 mm(18.7 x12.6 x6.9 inches) |
Fixture Weight |
9.5 kg(17.2lbs) |
Packing weight |
11.5kg(25.4 lbs)
|
Applications:
KULON-D series high bay fixtures were designed specifically to replace conventional lighting in a wide variety of indoor industrial applications; Their low profile light weight design and versatile mounting options make it ideal for many applications such as workshop/ warehouse ,cold storage, gas station, interior packing lot.
Our services:
Prompt lead time, professional Dialux lighting simulation, perfect after-sales service are our priority,
hope to be your reliable led lighting solution partner.
1. What we do is making you satisfied. Our goal is providing you with right products and come up with correct solutions.
2. Shipping will be the most economical for you and freight cost is informed in advance for your consideration.
Decision for the shipping terms will be made according to your requirements.
3. Delivery time is guaranteed. 2-3 working days for sample order,5-7 working days for regular order(quantity< 100pcs),10-15 working days for mass order(101-500pcs), order >500pcs pls contact us to confirm.
4. Price is negotiable if you have large quantity demand.
5. Package is customized.Usually we use films,foam boxes,cartons and wooden pallet.
Warranty details:
Hangzhou Kulon Electronics Co., Ltd. ("Kulon") warrants this kulon branded hardware product against defects in materials and
workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase.
Kulon provides free repair or replacement within warranty period. KU LO N shall charge against defeats by abnormal storage, useage, connection or change the structure or any commponents of the product.
(Professional Warranty file with stamp and signature will be sent to you if necessary)
Company informations:
Founded in 2005, Hangzhou Kulon Electronics Co., Ltd is a hitech and private enterprise devoted to R&D, producing and selling of high power LED outdoor / indoor lights, solar LED lighting systerm and more energy saving products and so on.
Adhering to the management concept of "honest cooperation, pragmatic innovation", we regard clients' satisfaction as our top task,
product quality as the basis of development, and cost-saving as our competitive advantage.
FAQ:
How to choose a right light for project?
1. According to Average or minum lux demands on floor to choose the right watt product
2. Depends on project drawing to make a Dialux simulation to confirm the beam angle and light installation layout
3. Choose the right CCT(3000/4000/5000 or 5700K) for different application place.
4. Confirm the most suitable install method. (pendant mounting, direct mounting or suspended mounting available)
How to achieve intelligent dimming function ?
Our led driver use Mean Well HLG type or Inventronics smart could support all kinds of dimmer:
0-10VDC, Resistance, PWM, Time dimming or DALI
You just need to connect a dimmer to achieve this function.
How to achieve motion sense function?
We could build in a smart motion sensor to ahieve this function such as:
When used in combination with 1-10V dimmable LED drivers and ballasts, the sensors can achieve 3-step
dimming function, 100%---> low light--->off. And the sensors build in adjustable daylight sensors, very easy to
install and cost-effective.
