Home LED Light Products (Aluminum Alloy Housing) LED Wall Washer Light with 400/1120mm

(Aluminum Alloy Housing) LED Wall Washer Light with 400/1120mm

(Aluminum Alloy Housing) LED Wall Washer Light with 400/1120mm
Price: Negotiable/Piece
Trade Terms: FOB,CIF,EXW
Min Order: 10/Piece
Pay Type: T/T,Paypal,Money Gram,Western Union

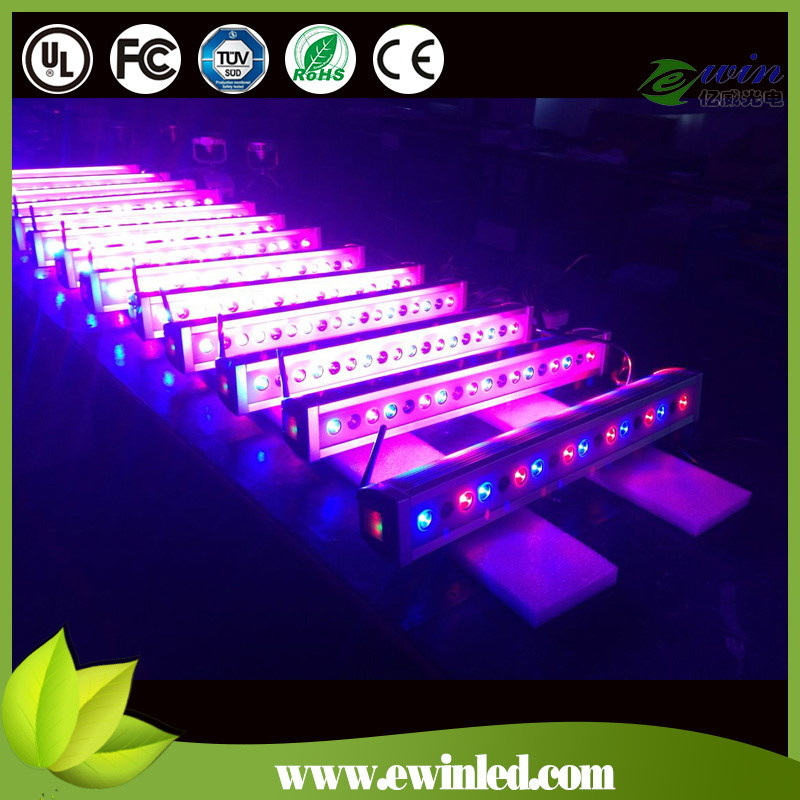

(Aluminum Alloy Housing)LED Wall Washer Light with 400/1120mm

Wireless Control Edison LED Wall Washer w/ Independent MODE and DMX Mode (Built-in Functions)

Ewin Lighting Tech Address the Wireless control LED Wall washer. I am expecting your attention and High Level Involvement to Take a Look.

Aluminum Alloy
 (Black/White Housing color available) w/ Rotary Angle: 150 Degree.

Wireless Control LED Wall Washer Mainly used for Decorating and highlighting in Building Frame, Garden, etc which work in Independent mode and DMX mode;

Color Changing Mode (RGB, Single Color, Available/Master Mode)
To Generate Various Color changing effects. Such AS 7 Colors Flashing/Fading/Chasing/Steady and 7 Color jumping Synchronously, Master/slave Mode color Changing effect.
256 Class gray degree dimmer, DMX Programmable w/ thousands of effects available if Many Lighting connected together

Control Mode 2 mode available
Independent Mode-Choose the color effects that you need by pressing the buttons on the side cap of light
DMX Mode-International Standard DMX512 Wireless Signal Control & 3XLR Signal Cable Control,

Tech Parameters
Input VOLT: 100-256V AC
Operating Voltage: 24V DC
IP Rating: IP65
Operating Temperature:  -20ºC~65ºC

Length(mm) available as follows Table
Model No LED QTYColorLength(mm)PowerBeam(°)
LWW-5-12P 12*1W RGB/Single colorL440mm12 Watts 15/30/45
LWW-5-12P 18*1W RGB/Single colorL580mm18 Watts15/30/45
LWW-5-24P24*1WRGB/Single colorL840mm 24 Watts 15/30/45
LWW-5-36P36*1WRGB/Single colorL1120m36 Watts 15/30/45
LWW-5-18*3W18*3WRGB/Single colorL1000mm54 Watts30/45/60
LWW-5-18*3W18*3WRGB (3IN1)L1000mm54 Watts30/45/60

Best Selling Points,
1. Wireless System Color SYNC
2. DMX 512 Control with Wireless Signal Control & 3XLR Signal Cable Control
3. Independent Mode
4. Master/Slave Mode Color Control with RC (Remote Control)
How To Connect Wireless LED Wall washer and Control LED Wall washer with DMX, Master/slave. I am Happy to Answer any your Concern to THis Items. I am expecting you attention and Hight Level INVOLVEMENT To Talk more with us!
Welcome Ewin Lighitng Technology , Shenzhen China!

THE issue of this Items to Our Customers&Concern to our business

How to Set up Control Mode/How to control LED Wall washer?
 (DMX Address) (Built-IN DMX)
1. When The Digital LED is not flashing, Press "A", digital LED Begin to flash, Press "A"again, active Digital Leds Moves Backward, Then you can start to edit the Second Digital LED, Press "B", the Corresponding flash digital LED increase one bit (Values from 0 to 9), Then Press "C"
 (Independent Mode)
2. Pressing "A" 4 times (Note: the first 3 times is setup on DMX Address), Entering into Independent Mode. The Digital LEDS Shows PXY, Press "A", Active digital LEDs Moves Backward, then you can choose function via  X and Parameter Via Y ; Press "B", The corresponding flash digital LED Increase one Bit (Values from 0 to 9), Than Press "C"

X Value and Y Value function settings
X valueY value
1-single red1~9 class gray degree
2- single green1~9 class gray degree
3- single blue1~9 class gray degree
4-single yellow 1~9 class gray degree
5-single purple 1~9 class gray degree
6- single cyan1~9 class gray degree
7- single white1~9 class gray degree
8-multicolor jumping  1~9 class speed
9-multicolor fading1~9 class speed
A-multicolor flashing1~9 class flash speed

(Auto Memorizing selected parameters)
3. When Pressing Button, Please wait for about 10 second, then you can Exit the mode of setting function. The Digital LED Stopping flashing and to Memorize the selected Parameters.
Master/Slave Mode: Wireless Color Sync : (The newest Tech. Wireless Color Sync)
Choosing any one light as the master as "001"The rest of them set as Slave (address can be any one except "001",  Then Changing function of The master Light, then all lights will work SYNCHRONOUSLY)

What is the Wireless system?
1. 7 Group ID Code can be set, The user can Use the Independent 7 groups of wireless network and won't mutually interference.
2. 7 Group ID Code corresponding to the color of the RGB indicator light, only the same ID lamps can communicate with each other.
2. ID code can be chosen by the button.
3. The indicator light kept lighting: No DMX or wireless signal.
4. LED red indicator light flashing: Signal sent
5. LED Green indicator Light flashing: Signal received.
6. Communication distance: 300 meters.
7. Working frequency ban: 2.4G, IM, 126 frequency Band.

Waterproof Treatment IP65
This Signal output Connector XL-3R of the last fixture (Maximum 30 fixtures) of each series must be wrapped with waterproof tape (Auto-adhesive, please refer to instruction for Operation), Thence Sealed with a Φ20 Thermal shrinking sleeve and blow and shrink it with a hair drier for waterproof purpose.

Have Already Built-in DMX Control ,why need Master Pro-3CH Controller with Remote Controller??
Master Pro-3CH Controller consist of main Controller and Remote Controller. It provides a Convenient and Easy way for Customers. The Controller is only compatible and available for the LED light Fixture with R,G,B, and 3 DMX channels. For indoor use Via connection of DMX Cables. (3XLR Signal Cable connection)

Tech Parameters
Size: L165*105*48mm
Weight: 0.67kgs
Working Temp:  -20 ~ 55 ºC
Input Volt: 120V AC 240V AC
Power: 3W
Protection:  IP20
Prod Model: LWW-5-12P-RGB-L440mm
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color: RGB/Single Colr/Blacklight
Color Sync: Wireless/3XLR
Power Supply: Waterproof LED Driver
Size: L440*W132*H82mm
LED Chip: Edison
Lamp Power(W): 12W
Control Mode: Independent, DMX, Master/Slave Mode
Luminous Efficiency: 100-110ml/W
Base Material: Aluminum Alloy
Working Temperature(Oc): -20°c~40°c(-4°f~104°f)
IP Rating: IP65
Diffuser: Tempered Glass
Lifespan: 50000 hours
Warranty: 2 Years
Certification: VDE
Electric Current Type: DC
Emitting Color: RGB/Single Color/Blacklight
Power: 12W
Beam Angle: 15,25,30,45,60,90 Degree
Input Voltage: 100-256V AC
