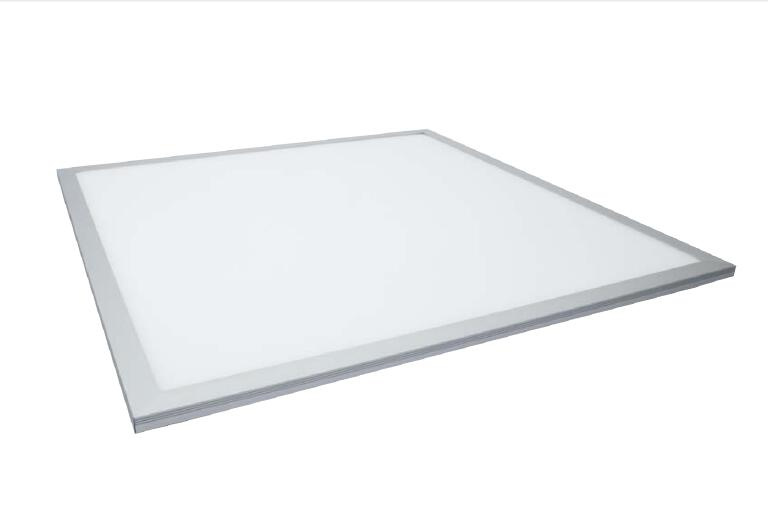

Features
It adopts super bright LED as its luminous body. The anodized aluminum frame is stylish and fashionable with everlasting color. It is powered by low voltage constant current driver, which is safety, energy-saving and long life.
Excellent thermal management can effectively guarantee the LED's long-term stability. The front panel board is high translucent PP, which ensures the light even, soft and high transmittance. Instant start, no flickering, no humming. No hazardous material ( mercury, lead).
The installation is very easy, it can insert into the ceiling directly, and it also can be hanging down by using the lifting hole on the back.
1.Aluminium frame with good heat conduction.
2.Different driver option: a. 110V driver. b. 1-10V dimmable driver 220V. c. 1-10V dimmable driver 110V
3.Healthy light with Unified Glare Rating less than 19.
4. High lumen efficiency of 80lm/w, CRI>80, SDCM<6.
5.Matched with constant current driver. CE approval.
6.Eco-friendly, energy-saving and high luminous efficacy.
7.Instant start, no flickering, no humming
8.No electric wave.
9.Installation way: recessed, mounted or suspended by fixing bracket on the back.
10.Working Temperature:-20degree~40degree
11.Package Info: Ctn size: 70.5*67.5*26cm, 3pcs/ctn, Gross Weight: 23.5KG/ctn,Volumetric Weight: 26KG/ctn.
12.Warranty: 3 years
| Model | LED Type | Watt | Current | CRI | VAC | Hours | Size(mm) | Beam Angle | Drivers |
| HLT-PL606050 | 4014 | 40W | 1400mA | 80Ra | 110/240V | 40000 | 595*595*10 | 120° | incl. |
Instruction
1. Turn off the power.
2. connect the commercial power with the input of the matched power supply, make sure that no copperware exposed.
3. Connect matched power supply and panel light together through the plug.
4. Fix the panel light and power supply at suitable place.
5. Turn on the power.
Applications
Hotel, Meeting Room, Office, Hospital, School, and places where energy saving and high color rendering index lighting needed.
Notes
The panel should be driven by appointed power supply.
