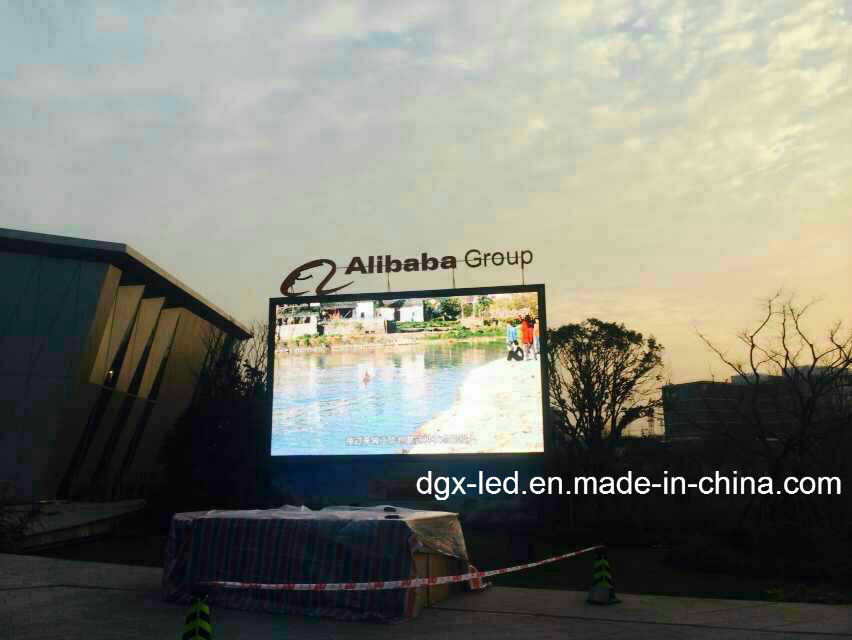

Home LED Light Products Alibaba Group High Resolution LED Display

Alibaba Group High Resolution LED Display

Alibaba Group High Resolution LED Display
Price: US $ 1000-2000/Square Meter
Trade Terms: FOB
Min Order: 10/Square Meter
Pay Type: T/T
DGX Widely used DIP Outdoor P8 led display

Features:
1) Types: Outdoor LED display screen
2) Colors: Full color
3) High definition and high brightness; Long durability and high reliability
4) Advance video control system and Super input system
5) Audio and video interface of the system can offer vivid, complete and high quality LED display to TV broadcasting signal
6) Fit for various computer net
7) Standard connection socket
8) Easy installation, Low maintenance cost
9) Software for remote control of communication and scheduling
10) good heat emission capability
11) Customized design available
12) Certification: CE and SGS.
13) Widely used in stage, concert, stadium, parties, bank, restaurant, station, shopping center, government, schools, and enterprise


P8 Spare Parts Specification (DIP Outdoor)
Pixel Dot Pitch8.0mm
Pixel Constitution 1R1G1B
Dimenssion 256*128*25 mm
Structure CharacteristicThe LED board and driver board separation
Output Voltage5V
PCB Power ≤30W
Pixel Density15625/m2
PCB Resolution16*16=256
Weight1.2Kg
MaterialPolycarbonate
Max current6±0.1A
Drive Mode1/4 Dynamic Constant Current Drive
Cabinet Dimenssion768*768*80mm
Cabinet Resolution96*96=9216
Max Power Consumption540W
Cabinet Weight38.3±0.05KG
Cabinet MaterialIron Or Aluminum
Cabinet area0.803m2
Average Power Consumption270W
Defense RateIP32
Brightness ≥ 5000CD/m2
Viewing Angle-Horizontal100±10°
Horizontal Flatness<1mm/m2
Max Power Consumption≤ 1000W/m2
Best Sight Distance≥8m
Brightness Homogeneity>0.95
Viewing Angle-Vertical50±10°
Vertical Flatness<1mm/m2
Average Power Consumption≤ 500W/m2
Environmentoutdoor
Grey Scale(linear) Levels12-16bit
Frame Frequency(HZ)≥60FPS/Second
Control InstructionControl with PC,Real-Time display, Video Synchronization.
Colour16777216
Rereshing Frequency≥200 HZ
Brightness Adjustment256Auto/MT
Input SignalDVI/VGA ,Video,RGBHV,Composite Video Signal ,S-VIDEP,YpbPt(HDTV)
Actual Life≥100000 Hours
Attenuation Rate (after 3 years)≤20%
 Discrete Malfunction Rate<1/10000, None at factory
Working Limits-20-50°C
MTBF≥1000Hours
Continuous Malfunction Dot RateNone
Blind Spot Rate<1/10000, None at factory
Humodity Limits10%-90%RH
Defense Function Overtemperature/Overloaded/Power-fail/Overcurrent/Overpressure/Lightning protection/Correction Technology


Prod Model: DGX-OP1032
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type: LED Video Display
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Configuration: 1R, 1G, 1B
Certification: UL
Display Function: Video Display
Application: Advertising
Scanning Mode: 1/4 Scan
Average Power Consumption: 350W / m²
Pixel Pitch: 8mm
Pixel Density: 15625DOT/Sqm
Shenzhen DGX TECHNOLOGY Co., Ltd. is a high -tech enterprise which specialize in LED RD, design, production, assembly and so on, DGX locate in Bao'an district of Shenzhen China which is established in 2008 and has got 150 employees.

Our major products are full color LED outdoor/indoor display screen, LED tube light, LED indoor decorating lighting, scenery lighting and building lighting.

DGX 's culture soul is "morals, development and promise", all of our employees echnics management, quality and service are based on this culture soul.

DGX' s LED display and lighting products apply to night club, KTV, disco, theatre, building, plaza, square, TV station, all the lighting, entertainment, and advertisement field, we have got high reputation in these industry.

DGX apply Taiwan and CREE LED chip to ensure the vivid video effect and Technicolor, we have got many successful project, in every China province, Australia, EU, America, Africa and so on.

DGX is famous for high quality, fast response after service.

DGX develop all the business by international eyesight and developing policy to push LED industry in China and all the world, we are looking forward to wining the future with all global customers.
