1.Clear picture without flicker and distortion
2.Low Consumption , Stable Performance ,Highly Durable
3.Within one year after consignment from factory.
4.Wide Viewing Angle, Seamless Splicing ,High-definition ,Mute Design ,High Contrast
Feature:

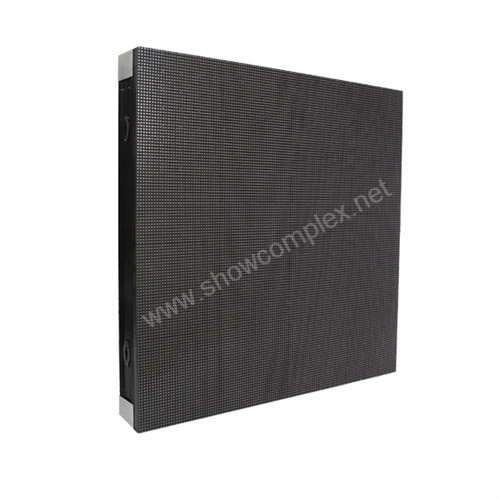

Mini series P2.5 LED Display full color rental led display features:
P5mm fullcolor rental led board with cabinet weight is only 7.5 kg, depth 73 mm, decreasing the transportation cost and the intensity of labor.
P5mm indoor rental led true color screen board with hoisting lock connected vertically. 50 cabinets in a line, easy to make up a super big screen.
Quick locks connecting cabinets, only less than 10 seconds per cabinet.
High polymer flexible mask, no dazzle, better contrast ratio; the masks can be pulled off directly from the cabinet, which makes the maintenance much more convenient.
With intelligent control LCD monitor, easy to know the correct accumulated working time.
The back cover can be opened without any tools; Modules can be take off without dismantle the power supply, much more convenient for the examination and maintenance.
With foldable handle and wave-shaped handle, installation and dismantle faster and much more comfortable.
Super-light aluminium alloy connectors are durable and artistic.
Parameters:
| Model | SC-AIF 2.5 Indoor Fixed LED Display |
| Pixel pitch | 2.5mm |
| LED Encapsulation | 2121 |
| Pitch Composing | SMD 3 In 1 |
| Module Size | 240mm*240mm |
| Module Resolution | 96dot*96dot |
| Cabinet Size | 480mm * 480mm * 65mm |
| Cabinet Resolution | 192dot*192dot |
| Density | 160000dot/ |
| Brightness | ≥1200nits |
| Brightness Adjustment | Auto 256 level |
| Viewing Distance | 2.5m-10m |
| View Angle(H) | 150° |
| View Angle(V) | 140° |
| Max Consumption | 300W/ |
| Brightness Adjustment | Manual/Auto/Programmable |
| Driving Method | 1/32 Scan Constant Driving |
| MTBF | 50000hours |
| Lifespan | 100000hours |
| Frame Frequency | 60Hz |
| Working Temperature | -20ºC+50ºC |
| Humidity Range | 10% ~ 90% |
| Voltage | 110 ~ 240V |
| IP Ranking | IP31 |
| Blind Spotrate | <0.0003 |
| Signal Type | AV,S-Video,VGA,DVI,HDMI,SDI,DP |
| Tranmission Distance | UTP:100 meters; single-mode fiber: 10 km |
Shenzhen Showcomplex Technology Co. Ltd, specializes in LED products R & D, manufacturing, sales and services. The company headquarters is located in the national semiconductor lighting industry R & D base - Shenzhen. Company dedicated to provide customers with high quality products and services, the application of LED high performance.
Shenzhen Showcomplex Technology Co. Ltd offers: LED Curtain Solution, Rental LED Screen Solution, Perimeter LED Screen Solution, Fixed Installation LED Screen Solution.
Shenzhen Showcomplex Technology Co. Ltd the main products are: A full range of LED indoor and outdoor full-color, fixed screen, LED screen, full-color indoor outside rental. The display has a pixel such as 1.6, 3.9, 6.25, 10mm different spacing, widely used in finance, sports, weather, military, transportation, advertising, radio and television, communications and other indoor, outside the media release.
Shenzhen Showcomplex Technology Co. Ltd "product oriented", to adhere to the independent research and development of the characteristic line of products, depending on the product quality of life for the enterprise, a series of reliability test company from the beginning of each link control in the production process to the final product, these tests will cover: Reliability test evenness, temperature, power, the brightness, color, shockproof performance, protection of all the important performance, company system management at the ISO 9001: 2000 international quality, has passed the UL, CE, ROSH, FCC, CCC certification, the company products are exported to Britain, France, USA, Germany, Iran, Singapore, Malaysia, Mexico and other 40 countries and area.
