Advertising Full Color Outdoor Creative 3 Face Rolling LED Display

Advertising Full Color Outdoor Creative 3 Face Rolling LED Display
Price: US $ 150/Square Meter
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: T/T,Western Union

Company Information
Leading outdoor advertising equipment manufacturer, main products cover light boxes, trivision billboard, Skye Screen, led trivision and other creative billboard with mind blowing design. We won lots of big projects, like Real Estate LED Sky Screen for several thousand square meters, major architectural building design and government street furniture projects. Honghai is a well-known brand both in and out of China.

Advertising Full Color Outdoor IP65 Creative 3 face rolling led display

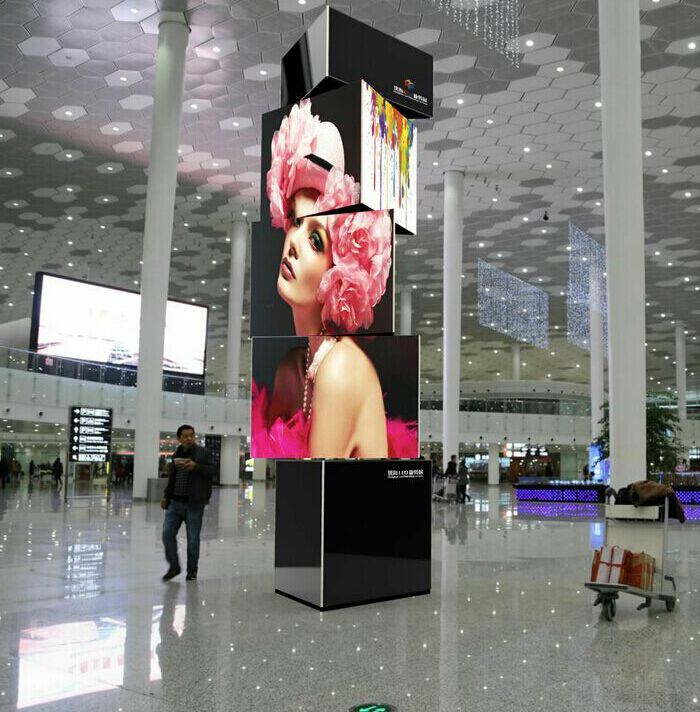

Rotating led screen can be used both for indoor and outdoor. The three triangular shape structure can hold 9 small screens in total and each rotates in different speed. When rotation ends, all screen will be stopped and form a complete advertising images or broadcast video as you need. The unique design is perfect for major airport, railway station or high-end shopping center, squares, etc.

For Youtube video links, pls visit:
https://youtu.be/M3e8UYNE7kw
https://youtu.be/VzAvZCPFiM0
https://youtu.be/0hMaJ9l67Z8


Advantage:
1. Natural Heat Dissipation (no cooling system needed)
2. 360 degree rotation
3. Stunning Visual Experience
4. High recall rate and attracting customers

Specifications:

Item No.
Pixel LED Module Screen SizeTotal Screen AreaTotal HeightWeightPower Consumption Cable 380/220V
Module Size           Qty       mm         m²            mkgUnit PowerTotal PowerAverage Power
      mm            pc



w/m²kw kw
SP-P4-1P4 indoor 256*12830*9=2701280*7688.855-612007506.6423/6.
SP-P5-1P5 indoor 320*16048*9=4321920*128022.126--7220048010.646/9.
SP-P5-2P5 indoor 320*16080*9=7202560*160036.867--8260048017.768/13.
SP-P6-1P6 indoor 384*19256*9=5042688*153637.167--835003501356/10.
SP-P6-2P6 indoor 384*19256*9=5042688*153637.168--93500900331115/25
SP-P8-1P8 indoor 256*128143*9=12872816*166442.179--10560090037.81317/28
SP-P10-1P10 indoor 320*160117*9=10532880*208053.919--10820075040.51418/30
Remark Screen Vertical Spacing Rotation Direction Rotation Speed Rotation Freeze Frequency Switch Time
10mm360°conductive ring 5-10s/r adjustable adjustable





P10 Led Display Specification
Mechanical ratings
Surface flatnessGAP< 1mm
Optical Ratings
Minimum View Distance10 m
Gray Scale8 bits input, with correction 16384 levels
Display Color4.4 trillion
Brightness Adjustment100 Levels with RGB individual adjustment
Power Supply
Operation PowerMW,AC110V-AC240V 50-60Hz
Max Power Consumption900W/m2
Average Power Consumption450W/m2
Control System
Control ModeSynchronous display with control PC by DVI
Frame Update Frequency50- 60Hz
Screen Refresh Frequency1000 Hz
Gamma Correction16 bits
Support InputComposite Video, S-Video, DVI, CATV
Control DistanceEthernet Cable 100m, Optical fiber 5km
Support VGA Mode800 x 600,  1024 x 768,  1280 x 1024,  1600 x 1200,
Brightness CorrectionDot by Dot, module by module, cabinet by cabinet
Reliability
Operating Temp. - 20°~ +60° Celsius degree
Operating Humidity10 - 90 % RH
Operating Life100000 Hours
Continuous Working Time≥48 hrs
MTBF5000 Hours
Out of Control Pixel Rate0.0001


Prod Model: xzp026
Markets: North America,South America,Eastern Europe,Mid East,Western Europe
Control Mode: Constant Current
Operating Temperature: -28 to +50
Relative Humidity: 25%~95%Rh
Input Voltage: 220V
Operating System: Windows
Gray Scale: 256
Screen Refresh Rate: 60Hz
Gamma Correction: 10 Degree Adjustable
Transmission Distance: UTP or STP 100m;Over 100m with Optical Fiber
Life Span: > 15 Years
Tube Chip Color: Full Color
IP Rating: IP65
Pixel Pitch: 10mm
Pixel Configuration: 1R, 1G, 1B
Display Function: Video Display
Average Power Consumption: 180W / m²
Pixel Density: 10000 dot / m²
Scanning Mode: Static Scan
Display Type: LED Video Display
Application: Advertising
Certification: ISO
Honghai Photoelectric Group Co., Ltd. is an outdoor advertising equipments company in China. We specialize in all kinds of Outdoor advertising equipments. Our main products contain: Trivision billboard/LED trivision billboard/LED screen/scrollig light box/rotating equipment/bus shelter etc.
We adopt advanced technology to realized all sets digital control production. Thousands of projects were achieved by our company are all over China and other countries. In 2010, our trivision display was used exclusively in Shanghai World Expo.
