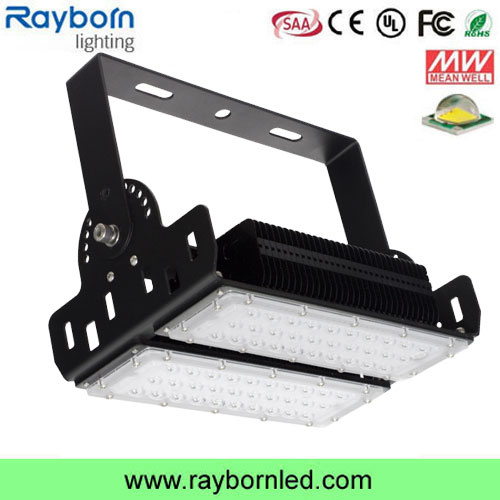

Advertising Bill Board IP65 50W-400W Outdoor stadium flood led light
Specifications:
| 100W LED Floodlight Main Technical Parameters |
| Item No.: | RB-FLL-100WSD |
| Input Voltage: | AC 100-277V |
| Freqency Range: | 50Hz~60Hz |
| Power Factor: | >0.92 |
| Power Efficiency: | >90% |
| LED Power | 100W |
| LED QTY: | 96pcs SAMSUNG |
| LED Working Voltage: | DC 30~36V |
| System Consumption: | 103W |
| LED Luminous Flux | Warm White | 9800LM |
| Pure White | 10000LM |
| Cool White | 11000LM |
| Color Temperature | Warm White | 3000K~3300K |
| Pure White | 4000K~4500K |
| Cool White | 6000K~6500K |
| Center Illuminance | 4 Meter | 235lux |
| 4.5 Meter | 185 lux |
| 6 Meter | 105lux |
| Viewing Angle: | 60/90/60*150 degree |
| Illuminance Uniformity: | >0.6 |
| Color Rendering Index | Ra>78 |
|
| Light Distribution: | LED points visible |
| Light Design: | LED+Reflectors secondary light distribution |
| LED Junction Temperature: | ≤115ºC |
| Working Temperature: | -40ºC~50ºC |
| IP Grade: | IP65 |
| Working Life-span: | 50000 H |
| Power Line: | 1.0 m three line |
| Connect Wire | Brown | L |
| Blue | N |
| Yellow / Green | G |
LED Flood light Features:
LED flood light adopted optical light distribution, that is no glare, no light pollution, highly directional light and more even luminous beam.
1, High bright imported LED chip as light source:
Led flood light with good heat dissipation, low light depreciation, pure light color, no double-shadow High intensity, high resistance of shock or vibration etc.
2, Universally wide range voltage(100-277V):
Led flood light advanced constant-current driver be used which can start quickly, be high safety and reliability.
3, Unique heat sink design:
Led flood light perfectly combine with power box, effectively transmit the heat, thereby lowering the body's temperature, ensure the life of LED chip and power driver.
4, Surface treatment:
Led flood light static sprayed leading to better heat-resisting, high weather resistance, corrosion resistant, water proof and dust proof.
5, All the leakage screw material is 304 stainless steel, and frame is hex screws.
6, waterproof and dust proof:
Led floodlight Sealed by reliable silicone rubber, can bear heat above 150, no aging, good sealing of lamp, waterproof and dust proof.
7, Energy saving:
Led floodlight use high power LED and it is equipped with imported high efficient power, save more than 70% energy compare with sodium lamp.
LED Flood light Competitive Advantage:
1. CE & RoHS &TUV IP65 approved, Quality Guaranteed
2. Imported original Cree & Bridgelux & Epistar chip, superior light source
3. OEM & ODM welcome, independent R&D ability, patent design.
4. Fast delivery, 3-15 workdays depends on order quantity after payment confirmed
5. Reliable quality & credit, 3 years warranty and 50.000 hours lifespan
LED Flood light Applications:
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.
Rayborn Lighting Co., Ltd. is a professional LED manufacturer, focuing on industrial LED Light and commerical LED light research, development, production, sales and service, was in High-end operation and service provider in High power LED. Under the conuntry "saving" policies, we are striving to create environmental protection, energy saving, long life lighting and earned a reputation of being a quality supplier of LED lighting.
We has a group of professional technical R & D team, who can provide the OEM / ODM services according to customers and LED lighting solutions, our factory has passed the authentications of ISO9001: 2000, CE, FCC, RoHS, TUV authentication.
With the direction of High power LED light, industrial LED light and commerical LED light, company developed milti-stlye series of LED lighting, including LED Flood light, LED Tunnel Light, LED High Bay light, LED Ceiling light, LED Tube Light, LED Down Light, LED Strip, LED Bulb, LED spot light.
We warmly welcome domestic and overseas agents and wholesaler to join us, to light up a green planet, for a more environmental earth.
