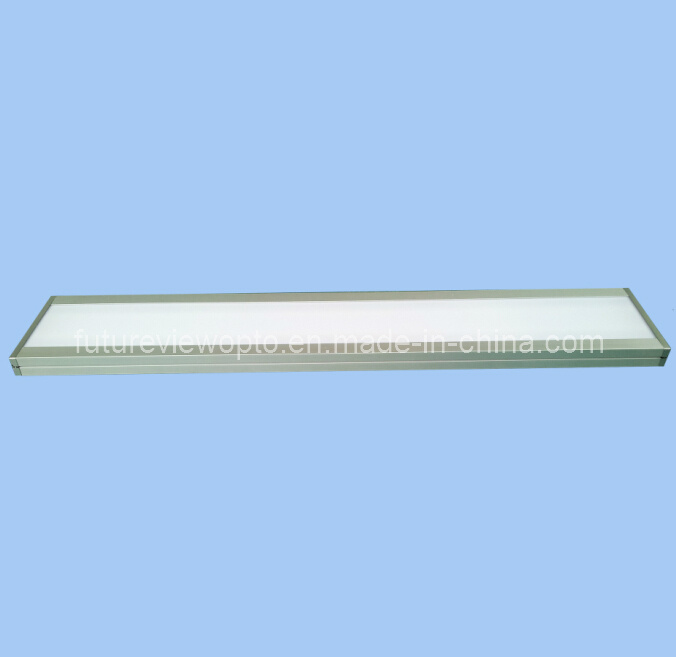

AC85-265V Energy-Saving LED Pendant light for home using
Quick Details:
1. Adopt high quality and high lumen led chips
2.3 years warranty for the led pendant light
3. Black, Silver and White for choice
4. T5 and T8 are available
Products Advantage:
1. Two sides are lined with LED's to grant optimal illumination
2. Environmentally friendly, mercury and lead free
3. Wide angle of deflection with even light distribution
4. High light output at a reduced energy consumption of up to 50%
5. Protection that remains stable at a wide range of input voltages
6. No star-up time, no flickering, no humming
7. Independent LED circuit prevents complete blackout in case an LED fails
8. Causes no electromagnetic interference
Application:
Hoteles, Conference/Meeting rooms
Commercial purposes
Residential/Institution Building
Schools, Colleges & Universities
Factories & Offices
Hospitals
Place where energy saving and high color rendering index lighting and needed.
Installation Instruction:
1. Turn off the power switch
2. Connect the output-terminal with utility power(AC85-265V) by using wiring unit, make certain that no copperwire is bared
3. Connect the output-terminal DC plug of current driver with the lamp's DC plug, insure this connection secure
4. Fix the lamp and current driver to the suitable place by convenient installation
5. Trun on the power switch
|
Model Name |
FV-HL-5 |
|
Power |
1*18W |
|
Input voltage |
AC85-265V |
|
Lumen |
1800lm |
|
Color temperature |
2700~3300k(warm white) |
|
4000~5000k(pure white) |
|
6000-6500K (cool white) |
|
Size |
1200*110*66mm |
|
PF |
>0.9 |
|
CRI |
>80 |
|
Certificate |
CE, RoHS, LVD |
|
Lifetime |
50000hors |
|
Storage temperature |
-25ºC to + 65ºC |
|
Operating temperature |
-40ºC to + 55ºC |
|
IP rate |
IP20
|
