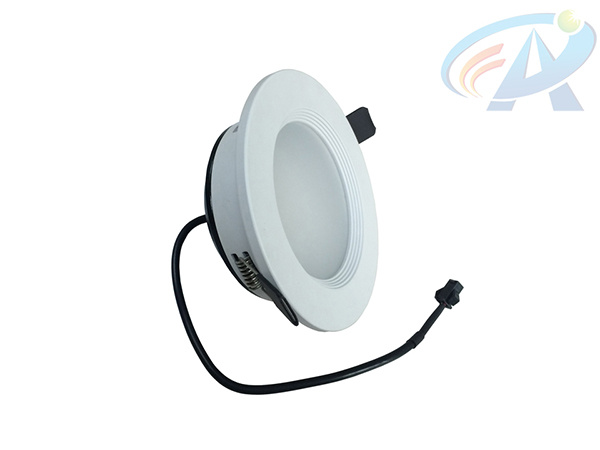

Item Name: 9W PMMA Cover SMD5630 LED Down Light
Item No.: AL-DL09C-24LED5630-D130
Brand Name: AUXOLED
>> Specific Parameters:
Overall Dimensions: Φ146*H130 (mm)
Cutout Dimensions: 130 (mm)
Light Source: 24PCS SMD5630
Chip Brand: Epistar / Samsung
Beam Angle: 120°
CRI: >70
Input Voltage: AC85-265V (50-60Hz)
Power Consumption: 9W
Driver Type: External Constant Current LED Driver
PF: >0.90
Color Temperature: 2800-3200K(Warm White), 4000-4500K(Natural White), 5000-6500K(Warm White)
Luminous Flux: 720LM
Main Material: Aluminum + PMMA
Heat Sink Solution: Aluminum Radiator
Working Temperature: -20ºC~45ºC
Working Lifespan: 50,000 Hrs
>> Detailed Chart:
Input Voltage | CCT | Beam Angle | CRI | Luminous Flux |
| AC85-265V | 2500-9000K | 120° | >70 | 90-100LM/W |
| Item No. | Product Dimensions | Cutout Dimensions | Rated Power | Light Source |
| AL-DL03A-6LED5630-D100 | Φ100*H80 (mm) / 2.5inch | Φ80 (mm) | 3W | 6PCS SMD5630 |
| AL-DL05A-12LED5630-D110 | Φ110*H90 (mm) / 3inch | Φ90 (mm) | 5W | 12PCS SMD5630 |
| AL-DL07A-18LED5630-D120 | Φ120*H100 (mm) / 3.5inch | Φ90 (mm) | 7W | 18PCS SMD5630 |
| AL-DL09A-24LED5630-D146 | Φ146*H130 (mm) / 4inch | Φ130 (mm) | 9W | 24PCS SMD5630 |
| AL-DL12A-30LED5630-D180 | Φ180*H155 (mm) / 6inch | Φ155 (mm) | 12W | 30PCS SMD5630 |
| AL-DL15A-36LED5630-D196 | Φ196*H175 (mm) / 6inch | Φ175 (mm) | 15W | 36PCS SMD5630 |
>> Advantages:
Use Imported Epistar or Samsung Chip LED, Excellent Quality, Super Long Working Lifespan
Small Volume and Light Weight, Can Save Shipping Cost; Stylish Appearance and Delicate Structure
The Rear Cover is Free to Open or Close; Easy Installation and Maintenance
Use SMD5630 Backlight Panel as Light Source, High Light Transmittance, Uniform & Tender Light, Anti-glare
External High PF Constant Current LED Driver, Multi-protection of Over-voltage, Under-voltage, Over-current and Over-temperature, Safe and Stable
Available Power: 3W, 5W, 7W, 9W, 12W, 15W
Anodized Lamp Housing, Corrosion Resistance and No Color Fading
No Flicker, No Radiation, Environmental Friendly and Energy Saving
>> Applications:
Dinning Room, Kitchen, Cabinet, Corridor, Supermarket, Cloth Store, Rest Room, Office, Museum, Hospital, Living Room, Factory, KTV, Hotel, Airport, Bank, Cafe, Commercial Centre, Villa, etc.
>> Certificates:
CE, RoHS, C-tick, SAA
>> Warranty:
2 Years
