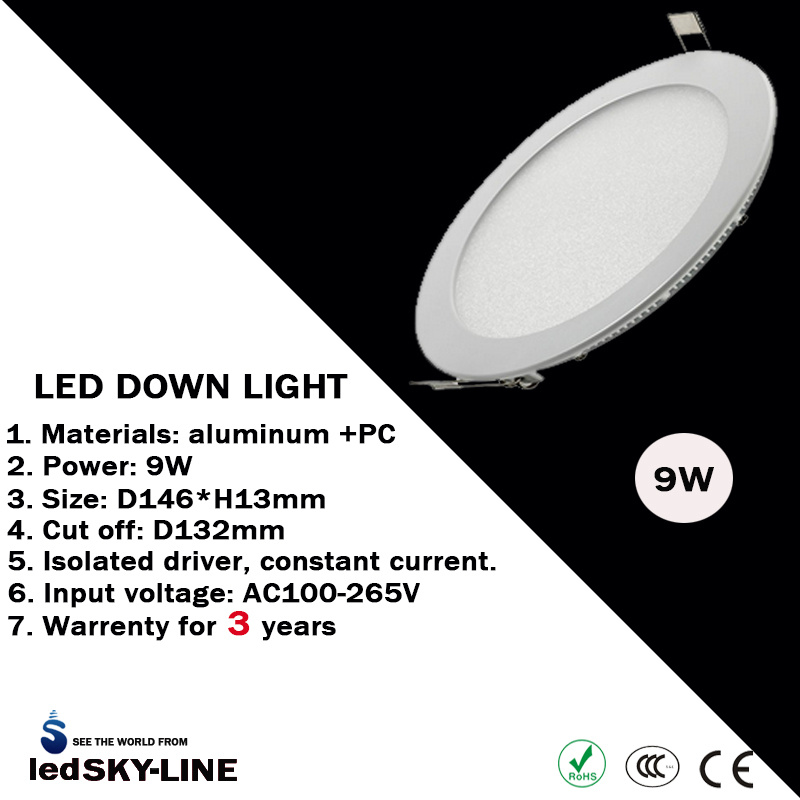

9W LED Round Down Light with External Driver AC85-265V
| Price: |
US $ 2.40-2.90/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
10000/Piece |
| Pay Type: |
L/C,T/T |
Specification of the 9W LED round down light with external driver AC85-265V
Features1. Ultra-thin. 8mm ultra-thin aluminum house, delicate design for the appearance, better heat-sink system.
2. Uni-form light. A round of SMD2835 strip, make sure no darkness, no flare, no flickering, high luminous.
3. Safety. 12V input voltage, DC connector with fastner, more reliable, longer life-time.
4. Better air-proof constructure between the aluminum house and the back-lid, no light relased out of inside when the light working.

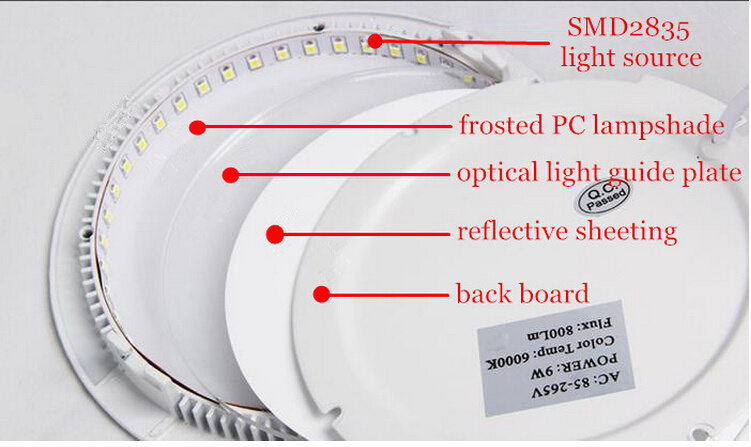

Constructure Map:
Technical Parameters:
1. Light source: SMD 2835
2. LED qty: 45 pcs
3. Power: 9W
4. Input voltage: AC85-277V
5. Frequency: 50/60Hz
6. Color temperature: 3000k/4000k/6500k
7. CRI: >75
8. Light efficiency: >80lm/w.
9. PF>0.9 or PF<0.6
10. Warrenty: 3 years.
Series items of the model:| No. | Item No. | Power | LED Type | LED Qty | Lumen | Size | Cut Off | CCT | Qty/Ctn |
| 1 | SL-P0311-R | 3W | SMD2835 | 15pcs | 80lm/W | 80*H13mm | 70mm | 3000/4000/6500K | 50pcs |
| 2 | SL-P0611-R | 6w | SMD2835 | 30pcs | 80lm/W | 120*H13mm | 105mm | 3000/4000/6500K | 50pcs |
| 3 | SL-P0911-R | 9W | SMD2835 | 45pcs | 80lm/W | 146*H13mm | 132mm | 3000/4000/6500K | 40pcs |
| 4 | SL-P1211-R | 12W | SMD2835 | 60pcs | 80lm/W | 172*H13mm | 153mm | 3000/4000/6500K | 40pcs |
| 5 | SL-P1511-R | 15W | SMD2835 | 75pcs | 80lm/W | 200*H13mm | 180mm | 3000/4000/6500K | 20pcs |
| 6 | SL-P1811-R | 18W | SMD2835 | 90pcs | 80lm/W | 225*H13mm | 202mm | 3000/4000/6500K | 20pcs |
| 7 | SL-P2411-R | 24W | SMD2835 | 120pcs | 80lm/W | 300*H13mm | 280mm | 3000/4000/6500K | 20pcs |

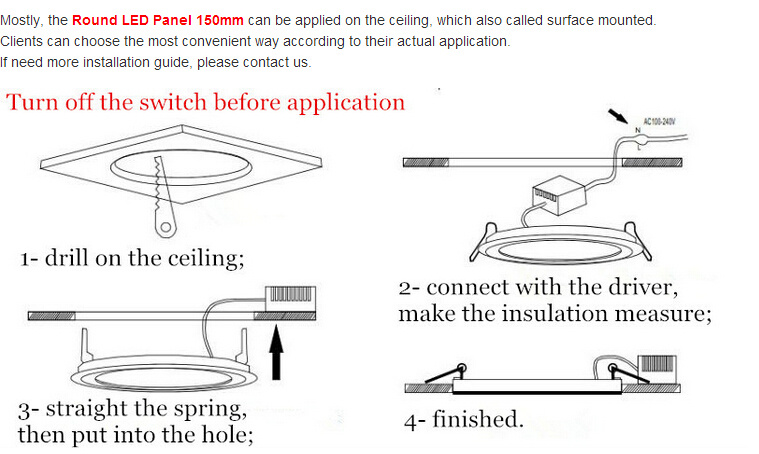

Installation:
Application:
1. Home, supper market, lobby, garage, office, and some other indoor areas.

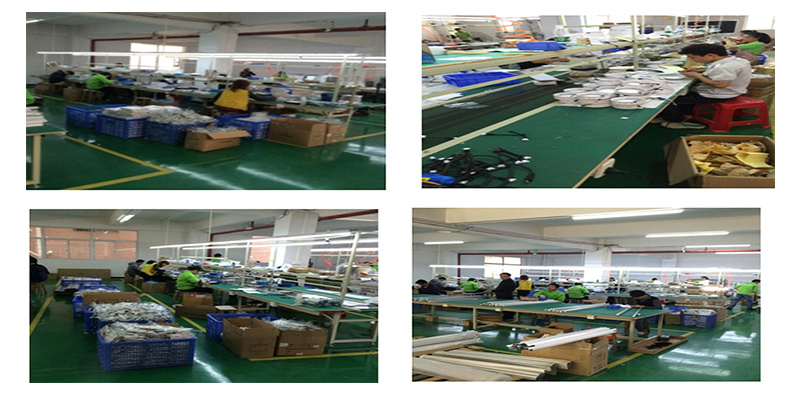

Manufacturing details:
Precaution:1. Before installation or lighting, please read the instructions carefully.2. Please turn off the power supply before installation or replacement to avoid the risk of electrical shock.
3. Do not use the product in the high humidity or dust enviroment ensuring the performance normally, includes but not limited to bathroom, sauna room and polishing workshop.
4. Do not look directly at the light source for a long time because the high intensity light may harm to harms.
5. Please contact to a qualified electrician for repair service or contact to our service people when any problem happened.Warrenty Policy: 1. 1-3% spare drivers shipped with the order for the customer to repair the defective driver once happened.
2. Any problems occurred within the warranty years, just take a photo and send a description of the problem, we will make a way to repair the product immediately or arrange a complete compensation along with next order.
3. This warranty doesn't apply to damage from any human or nature accident, breakage or repair by unauthorized people.
| Prod Model: |
SL-P0901 |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Wattage: |
9W |
| Siize: |
146*12mm |
| Package: |
Gift Box |
| Driver: |
External |
| Light Source: |
LED |
| Emitting Color: |
Warm White |
| Dimmable: |
Without Dimmable |
| Appearance: |
Round |
| Type: |
Ceiling |
| Certification: |
CCC |
| Voltage: |
100-240V |
| Housing Material: |
Diet Aluminum |
| Base Material: |
Aluminum |
| Beam Angle: |
120 |
