Product Description

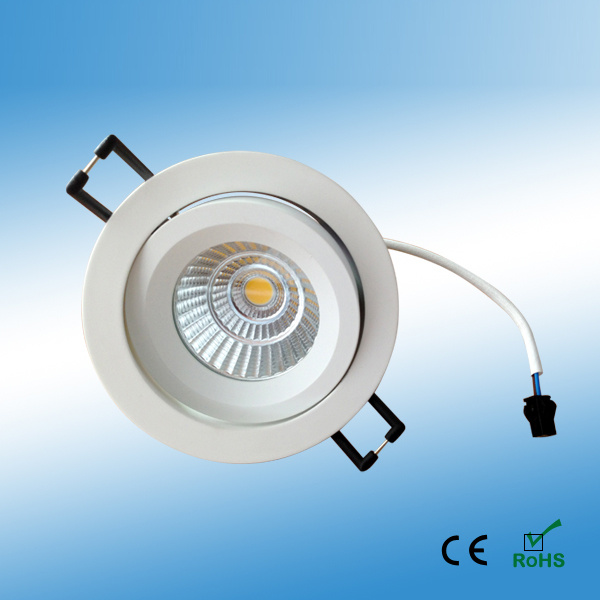

Kinwax offers wide range of LED recessed lights as replacements for common CFL fittings found in offices, hotels and other commercial environments.
Available in three color temperatures, these units are based on COB (Chip on Board) technology, which allows greater energy efficiencies and weight savings.
Lights and drivers are provided as a complete system ready to plug in. A feature of these units is a very wide beam angle of 24, 38, 60 degrees.
Commercial LED downlights are available in models using three different cut-out sizes and include 5 W, 6W, 7W, 9W, 12W,13W to suit most retrofit sizes and applications.
COB Advantage
COB lights are a more efficient form of LED lighting for general lighting applications because:
1. The light has a more uniform appearance
2. Better life expectancy
3. Can achieve higher light levels over a larger area
4. They are more stable and reliable than standard LED packages
Feature of Kinwax COB Downlights
1. Up to 70% energy savings over conventional technologies
2. No Mercury
3. Quality construction
4. 3 year warranty
5. 50,000 hour lamp life (70% Lumen Maintenance)
6. Cree led chip
7. CE, RoHS, EMC, SAA driver
Specifications
| Input Voltage | AC 100-240V/180-240VAC(dimmer) |
| LED | 7W/9W COB Led |
| Reflector | 24, 38, 60 degree |
| CCT | WW/NW/CW |
| CRI | >80 |
| Luminous | 670-690LM/820-850LM |
| Product Size | ¢93mm*H65mm or 60mm |
| Cutout Size | ¢80mm |
| Way of Installation | Recessed mounted with spring |
| Lifetime | >50,000hrs(70% Lumen Maintenance) |
| Storage Temperature | -40°C to 60°C |
| Working Temperature | 50°C(at room temperature 25°C) |
Applications:
1. Cabinet Lighting
2. Furniture Lighting
3. Display Case Lighting
4. Accent Lighting
5. Under cabinet lighting
6. Ceiling lighting, home and office lighting
Established in 2008, Kinwax Technology Co., Ltd, who are dedicated to producing LED lights and keeping customers' needs in mind at all times.
Kinwax in LED lighting sector and has gained high market shares, accumulated good reputation and credibility in domestic market for years by offering excellent quality products with a reasonable price and prompt customer service. Kinwax equipped with the full production system and molding system, has been providing the complete service by efficient process management.
As the result of the overseas marketing since 2011, we have been exporting our products to 25 countries including East Asia, European, South American countries and we've always been attempting to satisfy customer demands by providing products with high quality and moderate price.
Encouraged by the successful LED lights business, kinwax has expanded its business scope through continuous investments in R&D to provide various other LED solutions. Our LED lights have been received well in the market in terms of the best efficiency and performance and we are preparing for the full-scale introduction of these products in the market.
If you are looking for a reliable source and good pricing then we should be your first option. We believe that the total LED lights solutions of us will make your business more successful.
