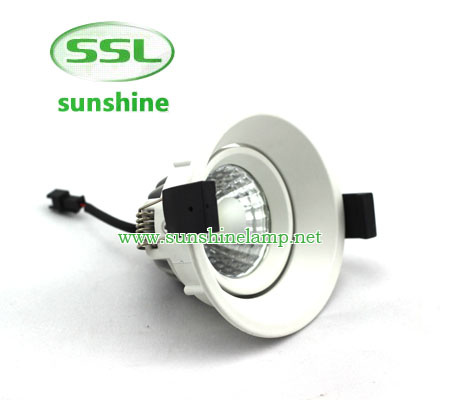

High Lumen 8 Watt Recessed LED Downlight , Ceiling Downlights With Cool White Lights
Quick Detail:
8W power consumption
Warm white Pure white Cool white
Luminous Efficiency 80-110Lm/W
Description:
Specifications:
Electrical / Optical Characteristics (Ta=25ºC±3ºC)
Tech Date |
| |
Model | SSL-DLCOB-8W-906 | |
LED Qty | 1pcs | |
LED Type | Cree Edison Epistar | |
LED Power | 8W | |
LED Color | Warm white, Pure white, Cool white | |
Input Voltage | AC85~265V | |
Frequency Range | 50Hz - 60Hz | |
Power Factor | >98 | |
Power Efficiency | >85% | |
Luminous Efficiency | 80~110LM/W | |
Dimension | 100x100x70cm | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>73 |
PW / CW | Ra>78 | |
Lamp Efficiency | >85% | |
Lumens Output | WW | 590lm |
PW | 620lm | |
CW | 650lm | |
Beam Angle | Diffused lighting | |
(Cut-out)Hole size | Φ90mm | |
Radiator Number | 0.4mm x 42 pcs | |
Radiator Area | 840cm² | |
Installation | Embedded | |
Housing Color | White | |
Working Temperature | -40ºC ~ +55ºC | |
Storage Temperature | -25ºC ~ +65ºC(25ºCbest) | |
Life span | 35000~50000hrs | |
Certification | CE, RoHS, FCC | |
package | 45*24*35cm (30pcs/box) | |

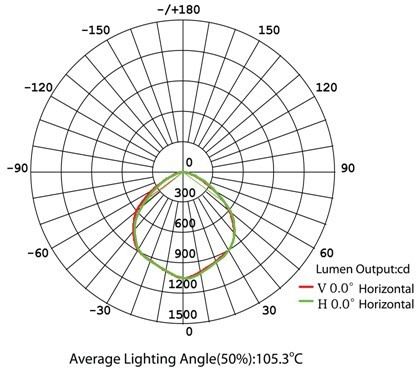

Curve of light distribution (Ta=25ºC±3ºC)

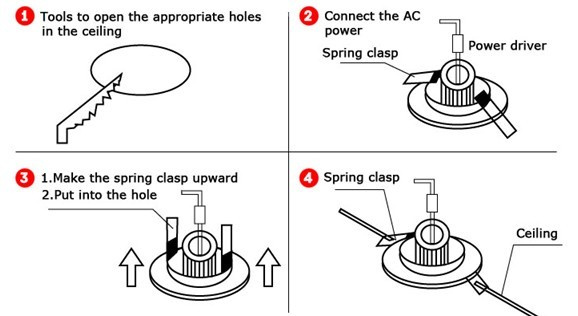

Installation Instruction:
pplications:

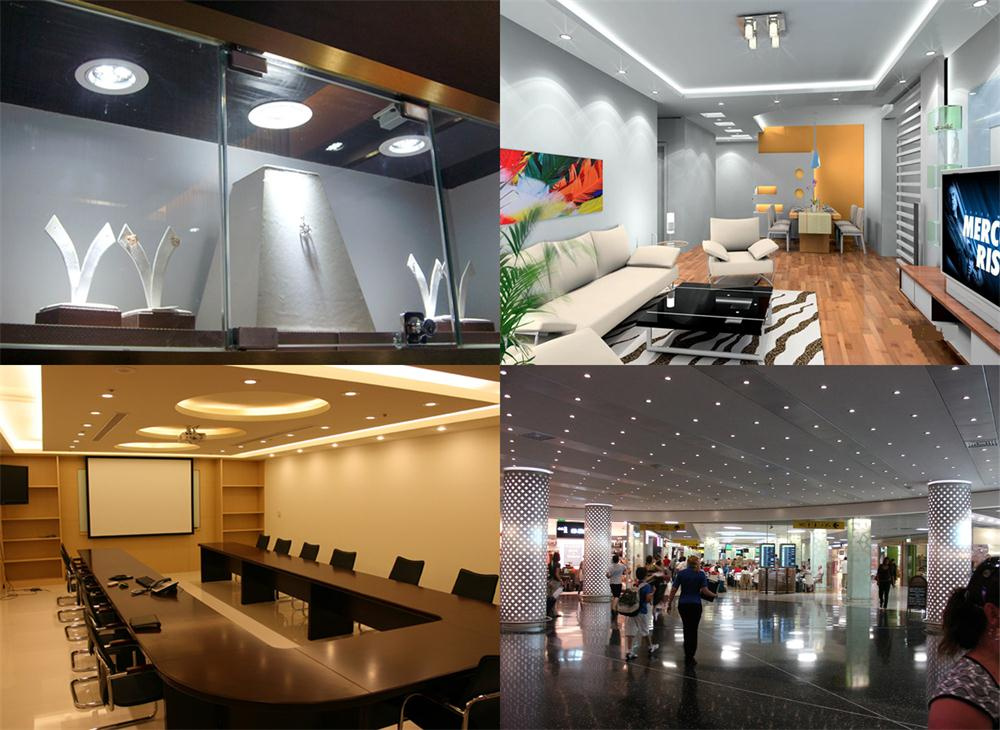

Widely used in the hotel, meeting room, offices, hospital, schools, factories, commercial lighting, shopping malls, supermarket.
| Prod Model: | SSL-DLCOB-8W-906 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency Range: | 50Hz-60Hz |
| Dimension: | 4inches |
| Beam Angle: | Diffusing Lighting |
| Housing Color: | White |
| Package: | 45*24*35cm(30PCS/Carton) |
| Color Temperature: | Cool White |
| Lamp Body Material: | Metal |
| Source Number: | Single Plug |
| Installation: | Embedded |
| Lamp Installation: | Screw Holder |
| Switch Type: | Touch On/Off Switch |
| Warranty: | 2 Years |
| Application: | Commerical Places |
| Certification: | RoHS |
| IP Rating: | No |
