Description:

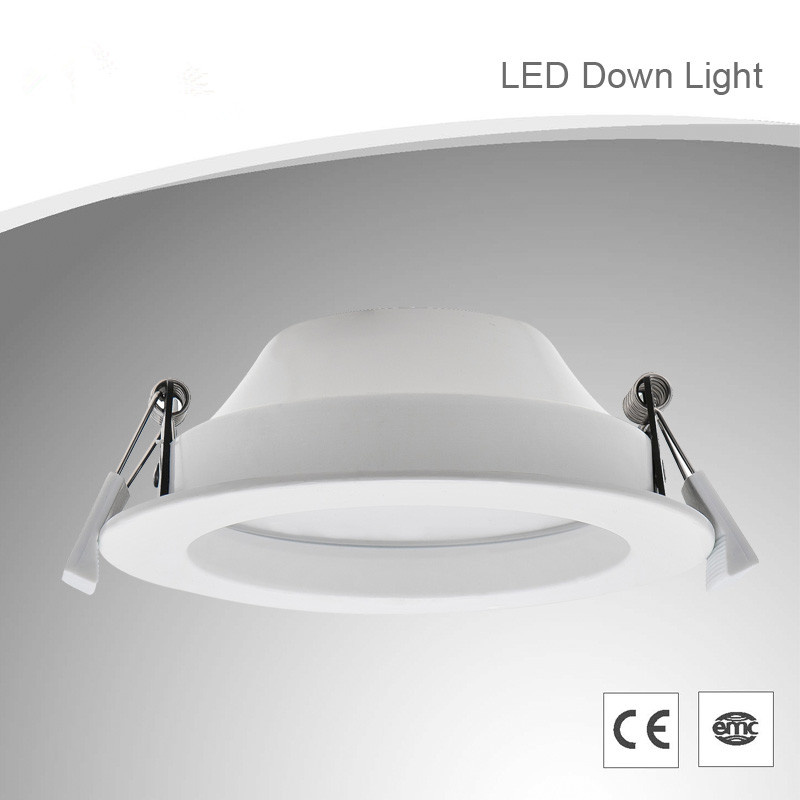

It adopts high brightness quality LED as luminous body with low-voltage constant current river, low power consumption, long lifespan, reliability and safety.The housing, which is elegant and stylish,is made if high-quality aluminum after anodizing processing. Good thermal management ensuires stable woring of LED, and controls light attenuation effectively.Perfect optical design ensures soft and even liht. Instant lighting, no flickering, no glaring. Free of lead, mercury and other harmful substances. This product is widely used in shopping mall, hotel, restaurant and etc.
1. Housing: Aluminium material with good heat conduction.
2. Different driver option: a. 110V driver. b. 220V Triac dimmable driver. c. 110V Triac dimmable driver
3. White or silver housing for option.
4. Working Temperature: -20degree-40degree.
5. Package info.: 59.5*31*24cm carton, 16pcs/ctn. Gross weight: 9.5KG/ctn.
6. Warranty: 3 years.
| Model | HDL-D19002-F-3 |
| Current | 700mA |
| Watt | 8W |
| Working Temperature | -20ºC~-40ºC |
| VAC | 100V-200V |
| CRI(Ra) | 80 |
| Hours | 40000hrs |
| Color Temperature | 3000K(WW)/4000K(NW)/6000K(CW) |
| LUM | 560/600/620 |
| Protection Rate | IP20/IP44 |
| Cutout | 125mm-135mm |
| Beam Angle | 90 |
| Dirver | Incl. |
| Pcs per carton | 16pcs |
| Carton Size | 59.5*31*24cm |
| Gross Weight | 9.5kg/ctn |
Notes:
1.Only qualified electrician is allowed to do the installation, maintence and inspection for safety concern. It is dangerous for non-professional operator.
2.Ceiling-installation only.
3.Do not install the product in high temperature or humid place.
4.75mm space shouls be left around the product for ventilation, no cover on the light at any time.
5.Storage conditions: room temperature dry environment.
Installation:
1. Turn off the power.
2. Drill a suitable mounting hole on ceiling according to size requirement of different item.
3. Connect input end of LED converter to commercial power(110V/220V), and make sure connecting way is right.
4. Put LED driver at suitable place on ceiling.
5. Pinch both springs, then push light into installation hole. Make sure the light fixed well.
6. Re-check everything is well-connected, then turn on the power.
