Product Features

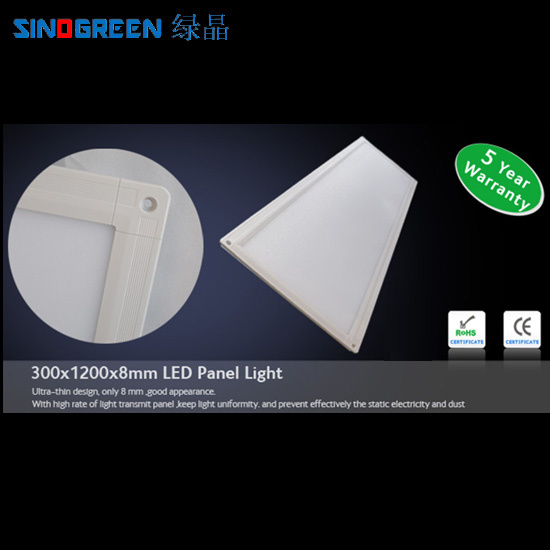

300X1200x8mm LED Panel Light
Super bright 2835LED as lighting sources, aluminium frame with good heat conduction.
Instant start, no flickering, no humming. Input voltage 28-36V ~ 1.1A(LED Panel Light with constant current driver), No electric wave, Imported light diffusion material,mercury and lead free.
High lumen output,high efficiency,energy saving up to 60%, Eco-friendly, energy-saving and high luminous efficacy. excellent heat dissipation structure,long lifespan,normal use can reach over 30,000hours.
TUV CE certificated, lead free, eco-friendly, conform to the requirements of ROHS.
NOTE
1. 300x1200x8mm LED Panel Light When installation,try to avoid the minefields,strong magnetic field and high-voltage area;
2.Ensure a solid connection correctly in order to avoid short-circurt damage to components and trigger fires;
3.Installed in a well-ventilated place to ensure appropriate environmental temperature;
4.Please check local voltage in accordance with the product requirements before using the product;
5.To prohibit the live wiring for LED panel light, check to confirm the wiring correct, confirm no short-circuit and then power on;
6.In case of failures. do not maintain it in private.
Applications
LED panel lights Application: widely used in offices, public spaces, hotels, bars, corridor, Shang Dynasty, toilets and Western restaurants, museums, exhibition halls and other projects
8mm LED Square Panel Light (300*1200*8mm)
Product No.
LJ-PL8-40W-3012
LJ-PL8-50W-3012
LJ-PL8-54W-3012
Size (mm)
300X1200X 8
300X1200X 8
300X1200X 8
Output Power
40W
50W
54W
LED Quantity
200pcs
240pcs
264pcs
LED Luminous Flux
3300LM
4100LM
4300LM
Material
alloy + PMMA
LED Light Source
SMD2835
Input Voltage
AC100V-AC240V
Working Frequency
50-60Hz
Power Factor
>95
Ra
80
LED Color Temperature
2900-6500K
LED Life
50000H
Ingress Protection Rating
IP41
THD
<15%
Working temperature
-10Degrees Centigrade~ +40Degrees Centigrade
Warranty
5 Years
Certification
CE\TUV
