| Price: | US $ 70-80/Piece |
|---|---|
| Trade Terms: | FOB,CIF,EXW |
| Min Order: | 10/Set |
| Pay Type: | T/T,Paypal,Western Union |

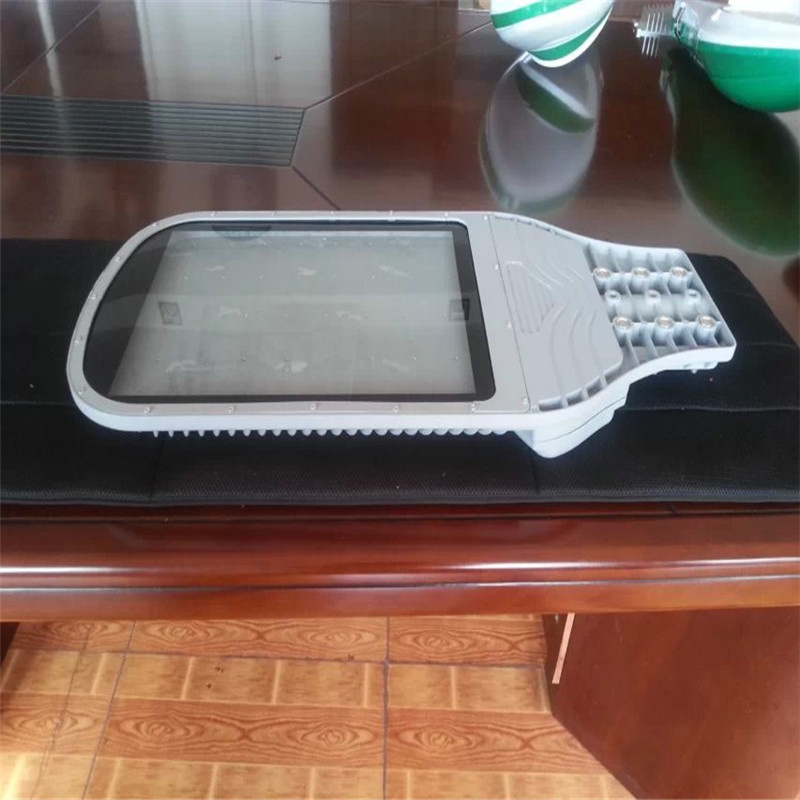

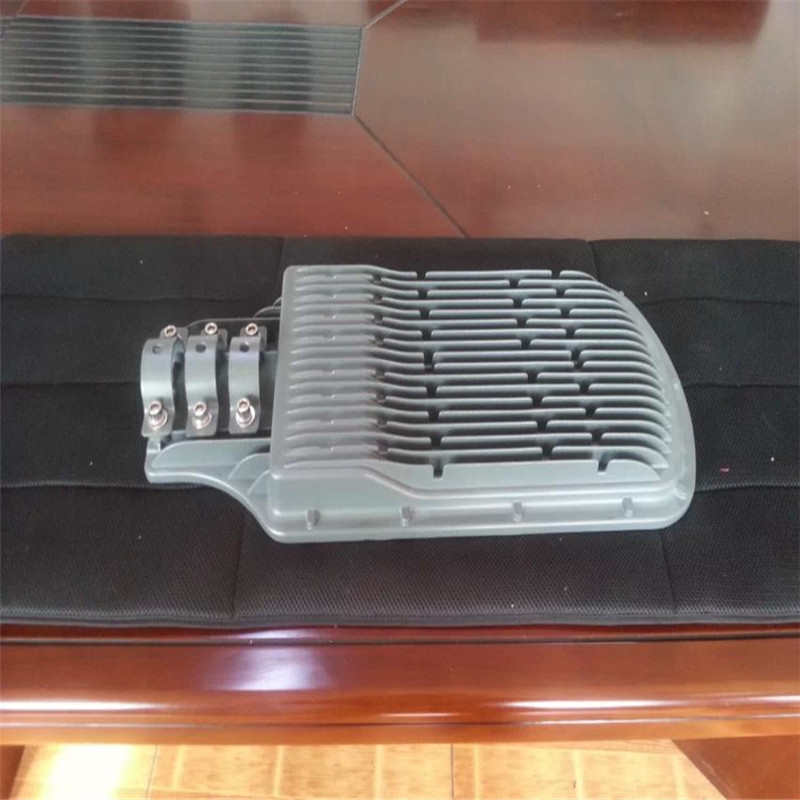

The direction of lamp can be adjustable in the different installation situation by rotating the bracket.
130 LM / W Bridglux LED are used to equip the lamp. Besides, reliable Meanwell LED driver is used for the lamp. They makes the lamp working stablely.
Benefits
1. Save electricity charge to up to 75%, comparing to traditional high-pressure sodium lamp.
2. Save labor cost. No need to replace failed high-pressure sodium lamp very often.
3. No light pollution to the surroundings.
4. No poisonous materials like mercury to health
Applications

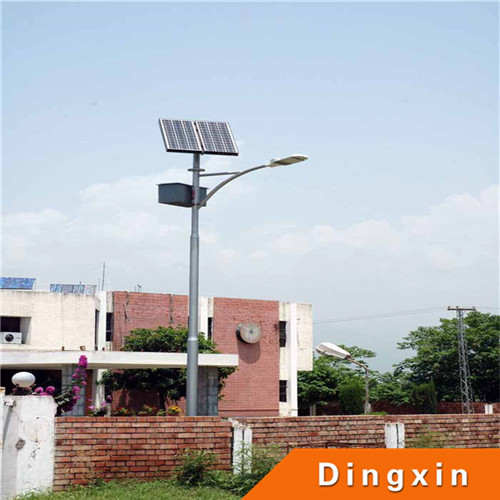

Dingxin Lighting Street light DX-ST660 can be used in City road, Residential district, Industry garden, Pavement, Square, Garden, School, Villa and so on
Why Dingxin Lighting for LED Street Light?
1. Rich experiences: 5years experience for LED lighting research and development;
2. The best key electronic components: Meanwell Driver from Taiwan, Philips, Cree, and Bridglux LED chip are used;
2. Quality Control: ISO 9001 quality control system and IBM quality control flow are carried out
3. After-sales services: Monthly and manual follow-up for the case with 3-5 year limited warranty;
4. Better solutions to projects: Customized solutions to your LED street light projects.

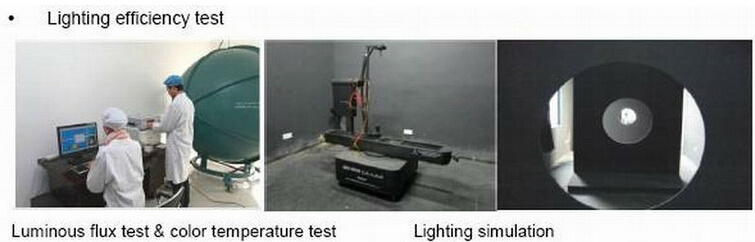

5. First-class production hardware:dust-proof workshop, automatic assembly line, integrating sphere
6. Lots of successful case with Dingxin in Australia, Saudi Arabia, Russia, Malaysia, Thailand, Kenya, etc.
| Item Number | LM-ST660-W60 | LM-ST660-W80 | LM-ST660-W100 | LM-ST660-W120 | LM-ST660-W150 | |
| Input Voltage(V) | AC 85-265 | |||||
| LED Consumption(W) | 60 | 80 | 100 | 120 | 150 | |
| Light Efficiency | 90lm/W | |||||
| Color Rendering Index | Ra>70 | |||||
| Working Life(hrs) | 50,000 | |||||
| Driving power factor | >0.9 | |||||
| View angle | 10° / 30° / 60° | |||||
| Luminous decay | <3%, after 1,000 hrs | |||||
| Light Body Material | Aluminum + Tempered glass | |||||
| Size(mm) | 660*274*161 | 660*274*161 | 660*274*161 | 660*274*161 | 660*274*161 | |
| Input frequency(Hz) | 50~60 | |||||
| IP rating | IP65 | |||||
| Lumen(lm) | 5780 | 7650 | 9350 | 11475 | 14025 | |
| Colour | warm white,white | |||||
| Working temperature(°C) | -20~60 | |||||
| Storage temperature(°C) | -20~60 | |||||
| Package | 1 piece per carton | |||||
| Color Temperature(K) | ||||||
| warm white:2700-3500 | ||||||
| natrual white:4000-4500 | ||||||
| white:6000-7000 | ||||||
| Prod Model: | DXSL-076 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LED Driver: | Meanwell |
| LED Lumen Output: | >130lm/W |
| Warranty: | 3 Years |
| Power Supply: | AC |
| Color Temperature: | Warm White |
| Lamp Body Material: | Aluminum |
| Power: | 30w |
| Application: | Garden |
| IP Rating: | IP66 |
| Certification: | SASO |
| With Light Source: | With Light Source |
| LED Chips Brand: | Bridgelux |
| Input Voltage: | AC85~285V |
