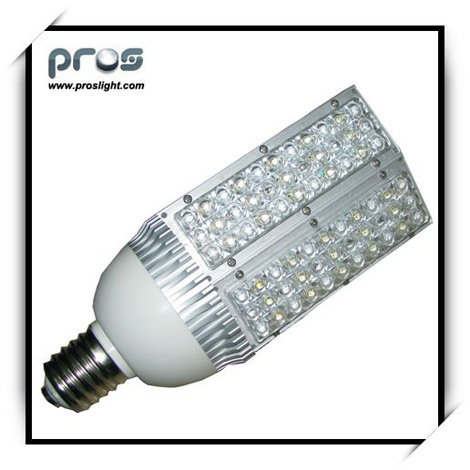

85-277vac or 12vdc LED Street Light (PL-LD-30W)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
2/Piece |
Pay Type: |
T/T,Western Union |
About us:Pros Light, founded in 2008, is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. Our main technicians and management personnel have more than five years of working experience related to LED industry. Having a professional, steady and well-qualifies research and development team and sales teams, our company is always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.Main Features of 30w LED street lightInput voltage for VAC=85-265V, 50/60Hz, 277VAC is also avialable
Input voltage for VDC=12/24/36V Automatically for solar system
1. Input Voltage: DC12/24/36V / AC85-265V
2. Power Factor: >0.95
3. LED Consumption: 30W ( 30PCS 1W high power LED)
4. LED Luminous Efficiency: >110LM/1W
5. LED Initial Flux: 3000Lm
6. Average Illumination: 23Lux-6m, 13Lux-8m
7. Effective llluminated area: 30*12m² -6m, 35*14m² -8m
8. Color Temperature: 3000-4000K warm white, white 5800-6500k
9. Color Rendering Index: Ra>85
10. Light DistributionCurve/Beam Pattern: Asymmetric(Bat Wing/Rectangular Beam
11. IP Rating: IP65
12. Street Working Life: > 50, 000hrs
13. Light Body& Lampshade Material: Aluminum
14. Net Weight: 1.3kg
15. Size: 105*265mm
16. Base: E39/E40 or E26/E27LED Street Light Feature:The lights applied with best light source-LED. Accelerated the unique reflector which was developed by us ourself, it Attains the light onto the road with maximum effect and formed a rectangular light spot. The entire light was made of The aluminum alloy with high index of the heat dissipation, the oxidize surface also ensured the heat dissipation Reliability. Meanwhile the lamp has been designed a respiratory system to ensure the dust resistance, water resistance And self cleaning abilityLED Street Light Application:The lights mainly applied in high-way, urban major road, secondary road, plaza, park, industry zone, residence area etc.ItemNumber | PL-LD-28W | PL-LD-30W | PL-LD-36W |
Input Voltage | DC12/24V/36V / AC85-265V | DC12/24V/36V / AC85-265V | DC12/24V/36V / AC85-265V |
Power Factor | > 0.95 | > 0.95 | > 0.95 |
LED Quantity | 28pcs | 30pcs | 36pcs |
LED Consumption | 28W | 30W | 36W |
Rated Consumption | 32W | 33W | 40W |
LED Luminous Efficiency | > 110LM/W | > 110LM/W | > 110LM/W |
LED Initial Flux | 2800Lm | 3000Lm | 3600Lm |
Average Illumination | 6M height | 20Lux | 23Lux | 23Lux |
8M height | 10Lux | 13Lux | 13Lux |
Effective Illuminated Area | 6M height | 27*12m² | 30*12m² | 30*12m² |
8M height | 32*14m² | 35*14m² | 35*14m² |
Color Temperature |
| warm white: 2800-3300K; commercial white: 4000-4500K; white: 5800-6300k |
Color Rendering Index |
| Ra> 80 |
Light Distribution Curve/Beam Pattern |
| Asymmetric(Bat Wing/Rectangular Beam) |
IP Rating | IP65 |
Working Life | > 50000hrs |
Light Body& Lampshade Material | Aluminum Alloy |
Size | 96*265mm | 105*265mm | 105*265mm |
Interface | E26/E27 or E39/E40 |
Prod Model: |
PL-LD-30W |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
LED: |
1W High Power LED |
LED Qty: |
30LEDs |
LED Watt: |
30W |
Rated Power: |
32.5W |
Voltage: |
12vdc, 24vdc, 85-265vac( 277vac Is Also Avialable) |
Power Factor: |
>0.95 |
Lumen: |
3000lm |
LED Luminous Efficiency: |
>110lm/W |
LED Street Light Size: |
105x265mm |
LED Street Light Base: |
E27 or E40 |
Certification: |
CE |
Power Supply: |
12VDC, 85-265VAC, 277VAC |
Application: |
Street/ Square |
IP Rating: |
IP60 |
Pros Light is an established high-tech factory specialized in the research, development, engineering, and marketing of LED based lighting solutions. We have professional engineers always staying at the forefront of LED technology. We are especially well-placed in the field of Power LED thermal management and related lighting solutions.
Our product range:
1. LED Street Light
2. LED Bulb & Spotlight
3. LED Downlight
4. LED Panel
5. LED WallWasher & Floodlights
6. LED Explosion proof Light
7. LED High bay light
8. LED Tube T8
9. OEM & ODM Projects
