80W Solar Street Light (Panel Battery Controller Sensor Are All-in-One)

                               80W Solar Street Light (Panel Battery Controller Sensor Are All-in-One)


Descripition:
Our integrated solar street light integrates the green-energy part solar panel, LED lamp and the rechargeable battery, so as to get the solution to low-energy, long-time, high-luminance and free maintenance. The integrated solar street light can be used for the garden, residential area, courtyard, road, mine area, parking area, or roads wherever needed.
The solar panel is to recharge the built-in battery which provide the energy for lighting.
Feature:
-All in one design, without any cable, install easily, can use many poles, such as iron pole, wood pole, bamboo pole,plastic pole and so on, with low cost;
-Charge by solar energy through solar panel built on the light.
-Using high capacity and long lifespan polymer gel battery, can resist high temperature and ensure the long lifespan of the whole product;
-Waterproof,very safe and reliable;
-Using aluminum alloy as the main material of the body, rustproof and corrosion-proof
-Lighting hour:36-48hours, can work for continuous 3 or 5 rainy days when charged fully.
Working principle
With infrared human body sensor: when someone or the car (moving object) enters within 10-12 meters from the light, the led light will work by full power.
90 seconds later, the light will return to the power-saving model, which means the light will work by one third of the full power.

Specifications:

Light    Source		80W
PV Power		45V 110W  (USA Sunpower)
Battery		Iron phosphate-lithium 24V 56AH
Human Body Sensing		yes
Overload Protection		yes
Dimension		1255*425*155mm
Net Weight/Gross    Weight		27kg/29kg
Luminous	All    Bright	8100lm
Viewing Angle		120°
Color Temperature		6000-6500k
Working Time	Bright mode	6-7 hrs
	Dim mode	3 rainy days

Environmental Temperature
-Work temperature: Charge: 0°C--+60°C;  Discharge: -20°C--+60°C   Storage: 0°C--+45°C

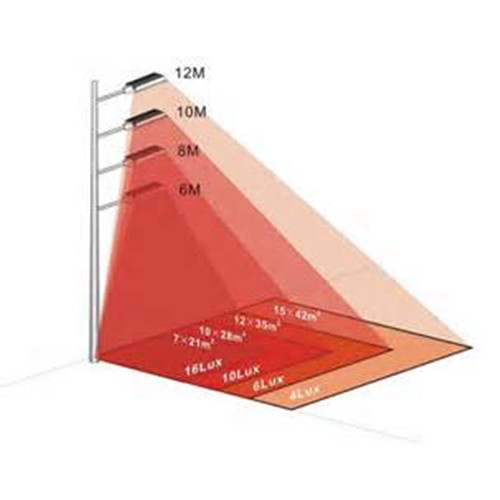

Installation:
-Pole install height: 7-10m
-Space between 2 lights: 25--35m
-Suitable for light pole diameter: 45-70mm

Precautions for use:
-The charging temperature is between 0°C~60°C; discharge temperature at night is between -20°C~60°C.
Any ambient beyond will bring damage to the battery.
Please confirm your local extreme temperature is suitable for above while selecting the street light.
-"All in One solar street light" can not work without sunshine charging,
please select the suitable product model according to the local sunshine radiation and the annual total radiation.
-At the same time, please keep it away from any shadow of house, trees etc.
-Keep clearing the surface of the light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
-Battery of the "All in One solar street light" can be stored for 6 months long after full charged.
Please examine, charge it periodically after long time transportation in case of damage.
-While installed in Northern Hemisphere, please make sure the surface of the solar panel faces the South to collect maximum sunshine radiation;
While installed in Southern Hemisphere, please make sure the surface of the solar panel to be facing the North to collect maximum sunshine radiation.

Package;
- for light fixture, accessories and instruction book.
- pearl wool for basic structure.
- light fixture and instruction book each PP clear bag with poles.
- a set of accessories was binded by pearl wool piece.
- a set of product each carton.
- very cartion is binded by bubble piece.
We make sure our package passed drop test, shockproof and waterproof.

Application(5-80W):
Street Lighting System, Solar Security Light, Garden,
Remote Highway, Freeway, Campus, House Road,
Pedestrian Street, Sidewalk, Jogging and Bike Path,
Military Bases, Square, Residential Street,
Parking Lot, Driving way, Relaxing Park,
Remote Area, Airport Car Parking, Subanb Middle Street.
