Home LED Light Products 80W High Power SMD5630 Retrofit Light LED High Bay

80W High Power SMD5630 Retrofit Light LED High Bay

80W High Power SMD5630 Retrofit Light LED High Bay
Price: US $ 69-83/Piece
Trade Terms: FOB,CIF,DAP
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram

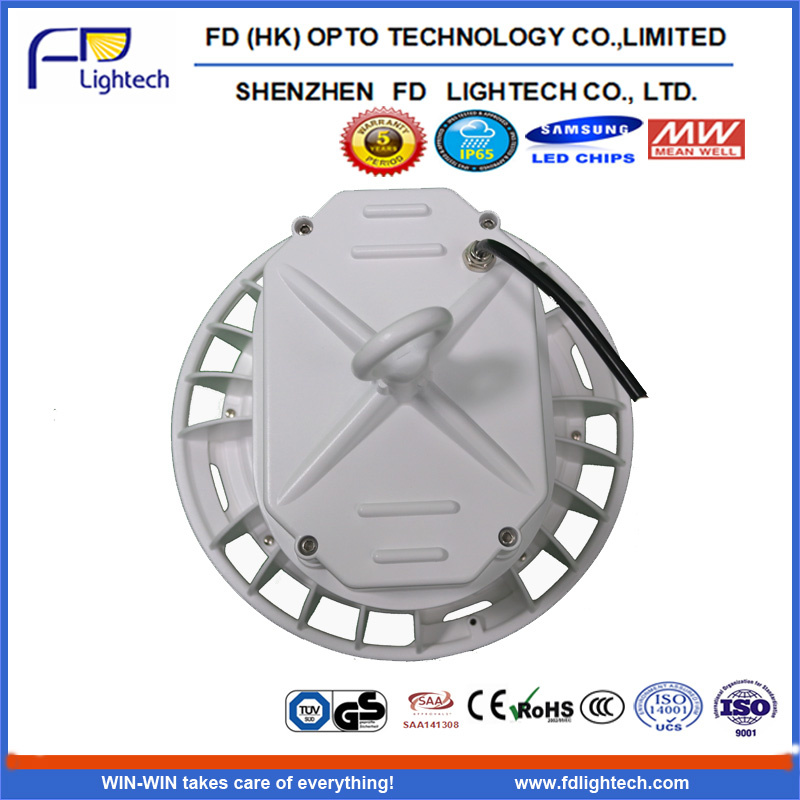

80W high power SMD5630 retrofit light LED high bay

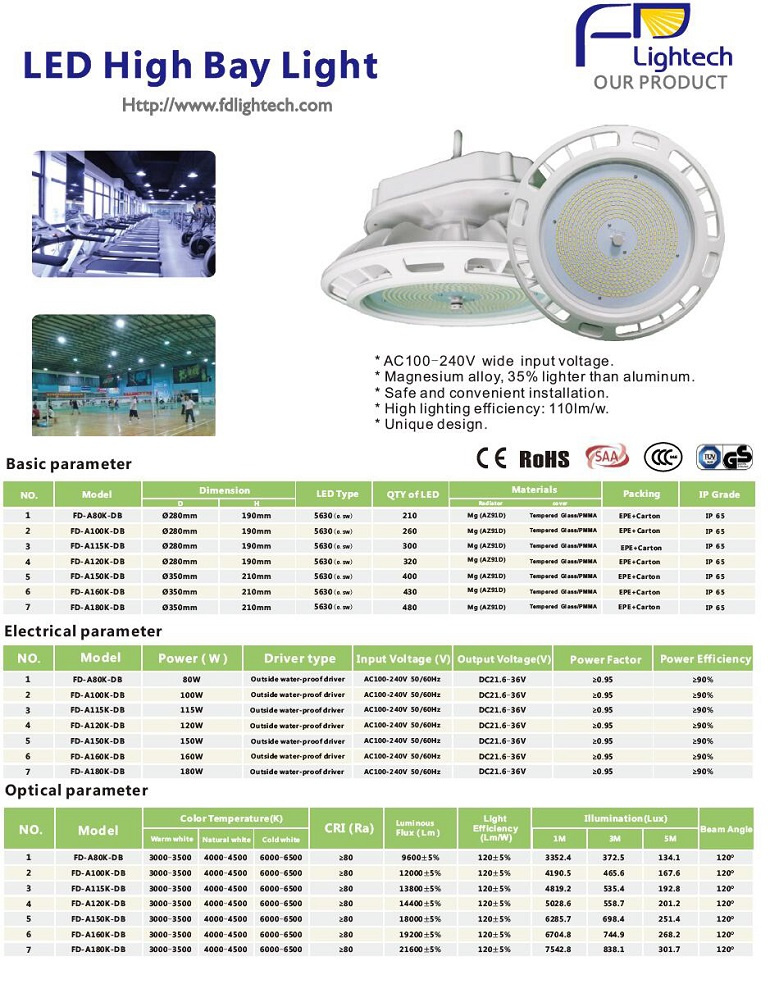

Specification:

              Product name        80W LED high bay light
                 Model NO.               FD-A80K-DB
                    Power                  80W
              Input voltage           100-265V 50/60Hz
           LED type&QTY            260pcs SMD5630
                   CCT                  2700-6500K
       Lighting effeciency                     135lm/w
          Luminous flux                   9600lm
                     CRI

                      80Ra
           Power factor                      0.95
       Power effeciency                      90%
           Beam angle                120 degree
               IP grade                       IP65
           Net weight                   3.62kgs
            QTY/Carton                       1PC
            Carton size          330*330*240mm
         Gross weight                      4.7kgs

Selling points:

*  Ra>80

*  PF>0.95

*  Wide Input voltage: AC85-265V

*  LED brand: Epistar chip or Samsung or Seoul.

*  Famous Driver brand: Meanwell.

*  Lighting efficiency: 110-135 LM/W.

*Three in one dimming function (1-10Vdc or PMW signal or resistance)


*  Light body:Made of magnesium alloy,35%lighter than aluminium alloy.

*  Certificates:TUV-CE,SAA, CE,ROHS, TUV-GS,CCC.

*  Private mould,unique design with beautiful looking.

*  IES files are available.

*  MOQ: 1pc

*  5 years warranty.

*  With different type of bases for your installation choise.

*  Very affordable prices compared with other suppliers in the same industry.

*  Fast delivery time: 3-5 business days for sample order, 7-15 business days for regular order.



Factory introduction:

Shenzhen FD Lightech was established in August 2009.As a high-tech enterprise(ISO9001:2008/14001:2004 approved) and a leading manufacturer of LED lights, it has advantages in both innovation and cost controlling. With the mission of lighting a green and energy world,we have rapidly grown into a pioneering enterprise in the LED lighting field after 9 years'hard working.


Our service:

Before-sale service
 Inquiry will be promptly replied within 12 hours.
 Experienced staffs will answer your questions professionally.
 Strong production capacity and experienced technical R&D team will support you all-around.

After-sale service
 All products with an average lifespan 30000-50000hrs and 3-5 years warranty .
 Any defective products within warranty will get maintenance or replacement unconditionally.
 Protection of your sales area,ideas of design and all your private information.


FAQ:

Q1:Any quality guarantees for your products?
 A:We provided 5 years warranty for our high bay light. During this period, Any defective item caused by quality issues will be our responsibility,please kindly take pictures or videos to our engineer team for inspecting,Once it been verified,
we would replace new items with the transportation charged being paid by us.

Q2: What certificates do you hold?
 A: CE(EMC/LVD),RoHS ,SAA, TUV-GS certificates.

Q3:How do you help us to save freight cost?
 A:We will give you best solution based on your order quantity,and freight quotation can be sent within 1 hours.

Q4: Do you have any MOQ limited?
 A: We don't have MOQ demand,even only one piece LED high bay llight is acceptable in order to better support our customers.

Q5:What is your capacity?
 A: We are a high-tech enterprise (ISO9001:2008/14001:2004 approved),we have set 3 automated production lines and more than 20 aging frames with powerful daily capacity- 2000pcs/day(tube light),1500pcs/day(panel light),500pcs/day ( high bay light).

Q6: What's the lead time?
 A: Sample :3-7 days. Mass production: 7-15 days depends on the order quantity.

Q7:How do you ship the goods and how long does it take?
 A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive. By air,by sea are also acceptable.

Q8: Can you print customers' logo on your products?
 A: Sure,we can print your logo on product for free only when the quantity is over 500pcs per time.And any OEM&ODM cases are highly welcome.

Q9:Do you also manufacture other types of led lighting products?
 A: Yes,we can also provide LED tubes, LED Flood light,LED panel light and street light;

Q10:What is the brand of led driver and led chip you ued for these panel lights?
 A:LED Driver:mainly Meanwell,MOSO,Lifud power supply,also choose other CE TUV qualified led driver with high power factor.It epends on customer's market demand.
  LED Chip:USA Original BRIDGELUX 45mil led chip,Samsung smd5630 led chip,LM-80 approved Epistar smd2835 LED chips, with high luminous and high CRI over 82Ra.

Prod Model: FD-A80K-DB
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage: 100-265V
LED Type: SMD5630
Cover: Die-Casting Glass
IP Grade: IP65
Dimension: 280*250mm
Power Factor: 0.95
Qty/Carton: 1 PC
Net Weight: 3.62kg
Carton Size: 330*330*240mm
Gross Weight: 4.7kgs
Color Temperature: Cool White
IP Rating: IP65
Certification: SAA
Lamp Body Material: Magnesium Alloy
Shenzhen FD Lightech was established in August 2009.

As a high-tech enterprise(ISO9001: 2008/14001: 2004 approved) and a leading manufacturer of LED lights, it has advantages in both innovation and cost controlling. With the mission of lighting a green and energy world, we have rapidly grown into a pioneering enterprise in the LED lighting field after years'hard working.

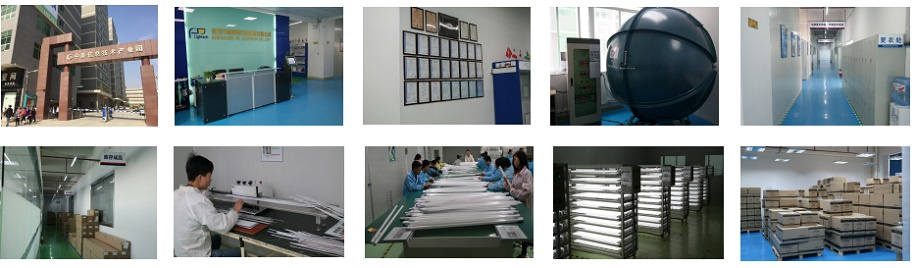

Capacity advantage

Our factory workshop covers a land of 2, 000m2 with advanced production & test equipment, first-glass service and powerful capacity, including 5 sets of Panasonic big high-speed SMT, 8 sets of lead-free wave-soldering machine, 5 sets of burn-in test room and more all-around test equipment on production lines.

Product advantage

We design and manufacture products strictly based on ISO9001: 2008, ISO14001: 2004 and our production standard. Our factory is engaged in the design, development, manufacturing and sales of commercial lighting, factory lighting and outside lighting, mainly including LED tube, LED high bay, LED floodlight, LED street light and LED panel light. All our products have obtained CE, RoHS approval of the European Union and CCC approval of Chinese quality certification center. Besides, we got the international authoritative certificates TUV-GS, PSE and SAA etc.

Team advantage

We have very sophisticated engineers in our team, who had been engaged in researching and developing work for decades. They are experienced in respect of structure design, heat dissipation and lighting. All members in our team had taken professional trainings to serve our customers.

Quality advantage

To make sure the stability of products, we mainly use LEDs from high quality brand, such as CREE, souel, edison and semi-conductor ect. The housing material we use has very good heat dissipation. In the future, we will continue to provide satisfied products with affordable prices to our new and regular customers.

ODM/OEM are always highly welcome.
