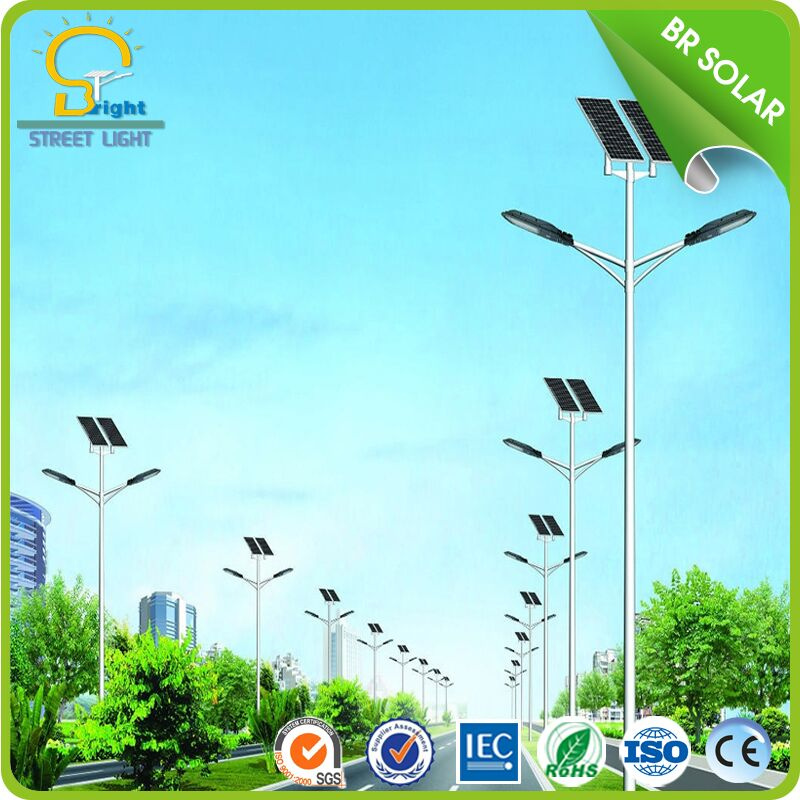

Two Lights 80W LED Solar Street Lighting System, with 4pcs Solar Panels
Design based on 5.5KWH solar radiation;
Lighting hours: 11-12 Hrs/Day*3-4 days no sun;
Model: BR-D80
Configurations:
1. Pole Height: 8M, Diameter: 80*180mm, Thickness: 3.75mm
Plastic coated on HDG pole, Rust Proof, resistant to wind: 150KM/H
2. Applicable light source: 80W*2PCS LED, 9600LM/PC,Lifespan:>80000Hrs.
3. PV Module: 150W*4PC, Crystalline, 90% of minimum warranted power output over 12 years,80% over 20 years;
4. Gelled Battery: 150Ah*4PC, Fee Maintenance, Deep Cycle, Sealed Type, Deep Cycle.
5.Battery Box: Engineer Plastic, Bury under ground.
6. Controller: 30A/24V Automatic light and time control system.
Detailed Packing:
LED Light: carton packing;
PV Panel: carton and pallet packing;
Solar Battery: carton and pallet packing;
Controller: carton packing;
Pole and Brackets: bubble wrap
Package Photos
Our Service
1.More Than 10 Years Producing And Exporting Experience.
2.Many Kinds of LED Solutions for longer lifespan and all kinds of lighting effect.
3.Our Sales Team Work Efficiency, and every design will based on your installed condition.
4.Our Solar Street Lights Have Successfully Been Applied In More Than 50 Countries
5.Except Video Installation Instruction, we can send our engineer to spot guidance, or teach your engineer in our factory.
Installation Photos
Guidance Installation:
Specification of Two Lights 80W LED Solar Street Lighting System, with 4pcs Solar Panels |
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 150W 24V *4PC, Poly Crystalline. High Efficiency. A-class, Adding Aluminum Frame, Tempered Glass. |
Solar Battery Lifespan:5-8 years | 150Ah 12V *4PC, Gelled Battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 30A/24V, IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed 11-12Hours later. |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 80W*2PCS LED, White Color, 9600LM/PC,6500K,IP65 High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-casted Aluminum, IP65 High transmittance & Density toughened glass, |
Battery Box: | Engineer Plastic, Bury under Ground. |
GI Pole System: Lifespan: More than 20 years | 8M Height, tapered Pole, Steel, Painted as Wanted Color, Hot-Dip Galvanized. Plastic Coated, Rust Proof, With Arm, Bracket, Flange, Fittings, Cables, Etc Resistant to Wind: ≥150KM/H |
Pls Enter www.cnsolarlight.com or http://light1978.en.made-in-china.com for more information about BR SOLAR marked Hot Sale 80W+80W LED Solar Street Lighting System.
Pls send us more details about your purchasing,
Thank you for your time and attention.
Yangzhou Bright Solar Solutions Co., Ltd., Established in 1997, an ISO 9001: 2000, TUV, IEC, CE&EN, RoHS, SONCAP, CCPIT, SASO and CCC approved manufacturer.
Overseas Exploration and Popularity:
We had successfully sold our solar street lights and solar panels to overseas markets more than 50 Countries such as the USA, Canada, UK, Greece, France, Italy, Australia, Turkey, Jordan, Saudi Arabia, Iraq, UAE, India, Philippines, Pakistan, Cambodia, Taiwan, Nigeria, Ghana, Congo, South Africa, Mexico, Haiti, etc.
For the Future:
With advanced manufacturing & testing equipments, our factories are growing better and better. We hope to cooperate with more partners and distributors to develop more business to create prosperous win-win partnerships. OEM is available. Welcome your inquiry mail or call.
Main Products:
Solar Street Lights & Solar Street Lighting & LED Solar Street Lighting;
Solar Garden Lights & Solar Landscape Lights;
Solar Panel & Solar Modules.
Small Solar Home System & Solar Home Kits.
Attention: We are good at
1: Designing, producing, installing solar 10W-120W Solar LED street lights
2: Designing, producing 10W-240W LED Lamp for outdoor street and road using.
3: Producing solar panel below 310W
4. Solar Battery 7Ah-300Ah/12V
5. Solar Home Kits 3W-5000W System
OEM Service for solar lighting and PV panel is available.
Welcome your inquiry of solar outdoor lights and solar home lights.
