Home LED Light Products 8000hrs Lifespan Energy Saving 110W LED Light Solar Street Light with Pole System

8000hrs Lifespan Energy Saving 110W LED Light Solar Street Light with Pole System

8000hrs Lifespan Energy Saving 110W LED Light Solar Street Light with Pole System
Price: US $ 342-362/Set
Trade Terms: FOB
Min Order: 100/Set
Pay Type: T/T
Product Details
Basic Info.
Model NO.:
JS-A201508110
Light Source:LED Lamp
Lamp Body Material:Aluminum Alloy
Light Type:Solar
Color Temperature:Warm White
Power:≥110W
Technics:Painted Matte
Illumination Time:8h
Cell Type:Gel Battery
Charging Time (H):8
Usage: Garden, Street
IP Rating:IP65
Certification:CE,CCC,ISO9001,RoHS
Voltage:12/24V
With Light Source:With Light Source
Lamp Source:LED Lamp /Sodium Light/Metal Halide Lamp
Shape:Round /Conical/Octagonal/Polygonal
Height:3m 4m 5m 6m 7m 8m 9m 10m 11m 12m
Export Markets:Global
Additional Info.
Trademark:JINSHANG
Packing:Plastic Foam
Standard:SGS FCC ISO
Origin:Yangzhou,Jiangsu Province,China
Production Capacity:50000PCS/Month
Product Description
FEATURES
hot galvanized street light post/ good looking street lighting poles/customized powdered painting /3m 4m 5m 6m 8m 9m 10m 12m
WE ARE MANUFACTURER SINCE 2000
Experience: Our company was set up in 2009, having over 14 years of production experience in galvanized street light poles.
Production Capacity: We manufacture galvanized street light poles from 3M-35M at the capacity of 20,000 poles per month.
Production lines: For galvanized street lighting poles we carry on vertical production to get good control of quality and cost
PAKAGAING
Bulb wrappings for street lighting poles for FCL goods, felt wrapping first and then bulb wrappings for LCL street light poles.

SPECIFICATION
Material: High-quality steel Q235/SS400 from BAOSTEEL Group
Welding Technique:Automatic submerged arc welding
Surface Treatment:Hot dip galvanizing and powder painting
Welding Standard: GB11345 Grade II
Thickness of Zinc Coating :≥ 86um
Anti-wind Capacity: 36.9m/s
Anti-corrosion Lifetime: ≥50000hrs
Coating Layer Thickness : ≥100um
Adhesive force :GB9286-880 Hardness ≥2H
Steel Pole Height Options:3.5m~15m
Street Lighting Poles Type Options: Conical, polygonal

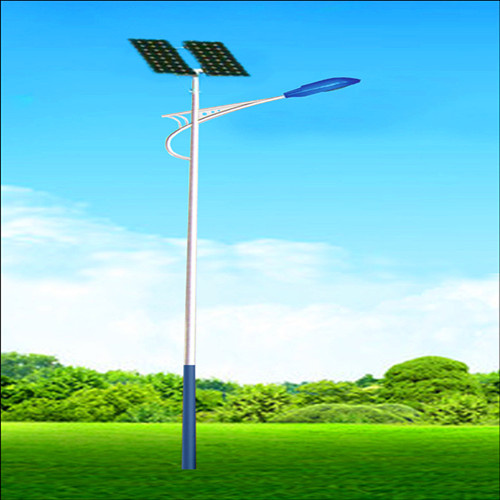

Solar street light Specification:

ItemJS-E2015130JS-E2015140JS-E2015150JS-E2015160JS-E2015170JS-E2015190DXSS120
Pole height6m6m7m8m9m10m12m
LED lamp30W40W50W 60W70W90W120W
Solar panel90W120W150W180W210W2*140W2*180W

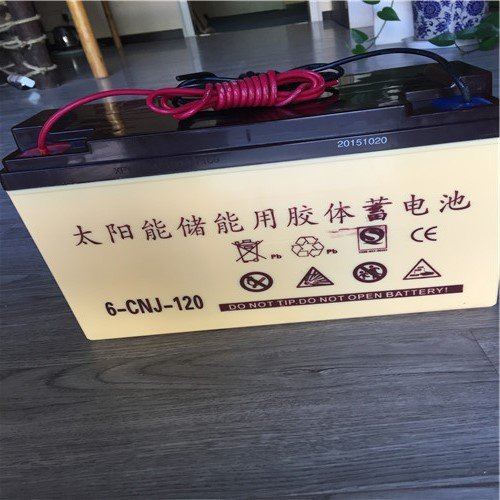

Battery120AH150AH200AH2*120AH2*120AH2*180AH2*220AH
Battery box120AH150AH200AH2*120AH2*120AH2*180AH2*220AH
Controller10A/12V10A/12V10A/12V10A/24V10A/24V10A/24V10A/24V

Lighting Pole specification:
Height (m)Diamention (mm)Thickness (mm)Flange size (mm)
660/1402.75240*240*12
760/1703280*280*12
870/1803280*280*14
970/1703.5300*300*16
1070/1703.5300*300*16
Delivery Time
Generally 20 working days for 100 galvanized steel light poles.
We have plate cutting line--plate bending line-- auto. welding line--polishing line--spray painting line--packaging line


Prod Model: JS-A201508110
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Illumination Flux:5000im: Illumination Efficiency:>90%
Style: Modern Chinese Style
Light Type: Energy Saving
Material: Aluminum Alloy
Technics: Electroplating
IP Rating: IP65
Warranty Period: 4 Years
Voltage: 24V
Certification: ISO9001
Jinshang Solar Lighting Co., Ltd. is situated in Guoji industrial park of Yangzhou city, a Chinese famous historical city, which nearing the Jinghu high way in east, closing to Huning high way in south, approaching Ruiyang great bridge, with superior location and fast and convenient traffic. This is a large outdoor lighting production enterprise, integrating of design, research and development, manufacture, setting and service.

Now, we have over 300 stuffs, including over 50 technicians. Covering 20, 000 squares meters area, we have large numerical control bending machine, aluminum die-casting machine of 2000ton, hydraulic tensile machine, double powder electrostatic spraying line, automatic cutting machine, arc-submerging welder, gas welding, vehicle, and digging, drilling, bending and over hundred equipments. We have various products, such as die-cast aluminum lamp, cone-shaped, rhombic, variable diameter lamp pole, high pole lamp, combination lamp, garden lamp, high pressure sodium lamp, ballast and parts appliances

We hold the management principle of" strive for survival on the basis of quality, explore the markets on the basis of sincerity". The developing goal is to meet the requirements of our clients and to establish the brand effect of Jinshang. We implement the special technical activities and establish qualified archives in a long time, which is to improve and enhance our manufacturing technique. We also try our best to make our rules and regulations perfect. We will continue to warmly welcomes the communities to come to new and old customers visit our company and guide! The company mainly produces and sells various types of solar street lamp, wind solar hybrid street light, electric power street lamp, PV off-grid equipment, garden lamp, landscape lamp, pole lamp, project lamp, digital LED lights, lawn lamp, underground lamp, lifting pole lamp, cone-shaped and polygonal variable diameter steel pole, electrified rail pole, traffic bar, flagpole, various type of light source appliances, and other parts of ballast, trigger, light or time controller electrical appliances and so on, which widely applied in outside roads, squares, parking lots, wharf, garden etc.

Our company gets rich experiences in city lighting engineering which work in this field over 10 years. We are the enterprise of attaching importance to contract and credit in Jiangsu. We enjoined the reputation of quality reliable enterprise in Jiangsu as well as excellent enterprise of standardized implement. Our company rated AAA grad credit enterprise, and through ISO9001international quality system certification. The enforcement of product certification in nation as well as AAA grad, CCC, CCCC2, ISO14001 Certification of environment protection. We also own the third certification of street lighting engineering contractor. We also get the permission of safe production.

In 2015, Wuhan office Hubei, Jinshang lighting Co., Ltd and Lighting equipment, Yangzhou, Jinshang Co., Ltd. Invest to establish a 5000-square-meter solar PV production line together, which import the most advanced equipment of manufacture and testing in the world to make sure the high quality of solar PV module in the international field. The assembly line of solar PV manufacture the solar street light and Off-grid solar system whose products are popular both at home and abroad, such as Middle East, south America, Africa and so on.
