Name: 8 inches 36w led down light
Product Description
Selected high power LED (1W, 3W) as light source. Long operating life, low power consumption, pure color, no pollution ect.
1)Color Effect: Monochrome, RGB, gray level 256, colors gradual changing regularly or randomly.
2)Control Mode: Self controller, external controller, supporting International Standard DMX512 Control Protocol System. Easily install and operate.
3)Projection Distance: 1M-5M (according to the lens).
4)Lens Angle: 8°, 10°, 15°, 20°, 30°, 45°, 60°.
5)Lens: Adopted high-transparency PMMA, transmittance of 98%, largely minimizing optical loss.
6)Material: Housing with high quality aluminum alloy, also with anodization. Elegant light, good capability of heat dissipation.
7)Energy Conservation: 60-80% less electric power than incandescent lamps, halogen lamps, fluorescent tubes, CFLs.
8)IP Rating: IP20
9)Life span: Over 50,000 hours.
10)Application: Shopping malls, hotels, restaurants, office buildings, commercial plazas, residential lighting.

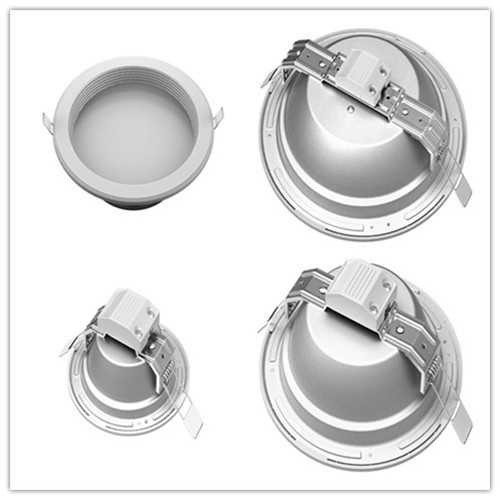

Details: LED down light
| Model | Power | Inch | surface colour | installation Dia | Power (100-240Vac) | LED | beam angle | warranty period |
| Chip | CRI | CCT |
| FEK201 | 3W | 2.5'' | white | Φ80mm | 9V/300mA | SMD2835 3S2P | 80 | 2700-3300K WW
4000-5000K NW
5300-7000K CW | 1000 | 3 years |
| 5W | 2.5'' | white | Φ80mm | 15V/300mA | SMD2835 5S2P | 80 | 1000 | 3 years |
| FEK202 | 7W | 3'' | white | Φ90mm | 21V/300mA | SMD2835 7S2P | 80 | 2700-3300K WW
4000-5000K NW
5300-7000K CW | 1000 | 3 years |
| 9W | 3'' | white | Φ90mm | 27V/300mA | SMD2835 9S2P | 80 | 1000 | 3 years |
| FEK203 | 9W | 4'' | white | Φ120mm | 27V/300mA | SMD2835 9S2P | 80 | 2700-3300K WW
4000-5000K NW
5300-7000K CW | 1000 | 3 years |
| 12W | 4'' | white | Φ120mm | 36V/300mA | SMD2835 12S2P | 80 | 1000 | 3 years |
| FEK204 | 15W | 6'' | white | Φ165mm | 45V/300mA | SMD2835 15S2P | 80 | 2700-3300K WW
4000-5000K NW
5300-7000K CW | 1000 | 3 years |
| 18W | 6'' | white | Φ165mm | 54V/300mA | SMD2835 18S2P | 80 | 1000 | 3 years |
| FEK205 | 24W | 8'' | white | Φ210mm | 36V/600mA | SMD2835 12S4P | 80 | 2700-3300K WW
4000-5000K NW
5300-7000K CW | 1000 | 3 years |
| 36W | 8'' | white | Φ210mm | 36V/900mA | SMD2835 12S6P | 80 | 1000 | 3 years |
Packaging & Shipping
1. Pack:
Qty per Unit Packing: 1 pcs in a single carton.
Size: Different product has different data.
2. Sample shipping way:
DHL, EMS, FEDEX, UPS and so on. It is changeable.
3. Cargo shipping way:
By sea or by air. Depending on you.
Our Services
1. Before sales:
Confirm the details, reply on time, offer detailed information, meeting the customer's need and so on.
2. After sales:
Follow the production and delivery, feedback and solve your question fast, track regularly, warranty 2-3 year and so on.
Company Information
SHENZHEN FIER lighting Co., Ltd, located in Shenzhen, China, is one of the top ten manufacturers of LED products in southern China.
With CE, RoHS, TUV, FCC, PSE, UL certifications, our products contain LED flood light, LED panel light, LEDhigh bay light, LED tube light and so on.
Capacity is 5,000pcs per day.
FAQ
1. Q: Where is your type of led chip?
A: Cree, Bridgelux, Epistar and so on.
2. Q: What is the type of power supple driver?
A: Meanwell and so on.
2. Q: How long is the production time?
A: Sample: About 5-7 days. Order: 10-15days.
Delivery: 10-40 days after received the deposit.
4. Q: What is the Payment?
A: Payment: T/T, West Union, L/C.
Payment terms: 30% deposit in advance,the balance T/T before the shipment.
Shenzhen Fier Lighting Co., Ltd., is located in the beautiful and open city Shenzhen, Guangdong Province, P. R. China. The company is formerly known as Zhuzhou Fei-hong Industrial Co., Ltd., Shenzhen Branch, which was established in 2004, and successfully rooted in LED industry in Shenzhen in 2009. Shenzhen Fier Lighting Co., Ltd., is a professional manufacturer who specializes in R&D, producing and exporting indoor and outdoor high power LED lamps. The products are produced with CE & RoHS approval which include downlights, flood lights, ceiling lights, spotlights, light bulbs, gem lights, wall lights, wall washers, tunnel lights, high bay lights, market lights and so on. All the light sources have brands in CREE, SSC, LUXEON and EDISON.
The main advantages of FIER LED lights are energy-saving, environmentally-friendly, high-efficient, long lifespan, practicability and unique radiator design. Our company management system is according to ISO9001: 2008. We have also developed some die-casting LED lamps which integrated with PC and aluminum materials. All the products go through the strict quality controlling procedures and aging test process to make sure all the lamps can work well.
The great advantage of FIER products is their various types which allows to be used at various occasions, such as hotels, stores, villas, museums, business centers, etc. With excellent quality, reasonable price, rapid delivery time and all-round after-sale services, FIER lamps have been well-accepted all over the world.
We always service our customers with the guiding policy as below: "Customer Satisfaction, Customer Reliance". FIER is your top choice about lighting business and hope we will set up business relationship in the near future on the basis of mutual benefit. And the world-wide customers are warmly welcomed to contact and visit us.
