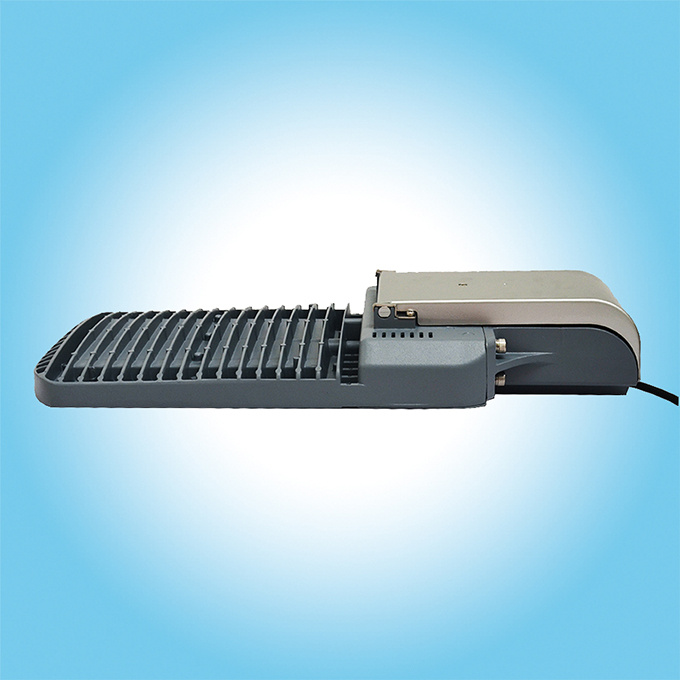

78W outdoor CE Approved Excellent and Eco-friendly Energy Saving High Power LED Street Lamp(BDZ 220/78 30 Y)
CE Approved Excellent and Eco-friendly Energy Saving High Power LED Street Light that can replace a 400W Metal Halide Lamp, substantial electricity savings, long lifespan, 5 years warranty, soft start function\dimming function, automatic clean function, tool-free installation.
Applicant:Landscaping buildings, bridges, squares, sports centers, tunnels, garden, subways, undergrounds, factories, clubs, hotels, stages, parks, parking lots, plazas and art galleries
Main Features:
Main Features :
1.Thin and light fashionable appearance without big and heavy shield
2.High quality LEDs, super bright , high light efficiency:>90lm/W
3.Unique all-in-one structure for severe environment lighting
4.CE approvalled, IP65 Waterproof, Three Years Warranty
5.Attractive return on investment with superior performance
6.12 or 24V DC version is also available for solar power and other application
We also have more other style available (37W-210W).Different Beam angle for available.Epistar chips, also Can be CREE LED as customized order.
Special features:
Electrical parameters:
Input voltage:100-240V AC, 50-60Hz
Power factor:≥0.95
Driver efficacy:≥90%
Power:78W
LED quantity:60pcs
Lamp efficacy:≥80lm/W
Luminous flux:48000lm
IP class:IP65
Optical parameters:
CCT:3,000-6,000K
CRI:≥70Ra
Recommended height:6-12m
Average illumination:≥25lux
Illumination eveness:≥0.85
Lateral beam angle:140
Longitudinal beam angle:60
Ambient temperature:-40 to 50°C
Carton size:605X270X145mm
Quantity/carton:1pc
Gross weight:4kg
Advantages:
Light-weight and compact all-in-one structure, Excellent thermal control
The industry's highest level of high efficacy
50,000 hours lifespan
Soft start function\dimming function for illumination control
Lightweight design, fast install and easy maintains
Limited ultraviolet light, limited attraction of insects
IP65-High waterproof, anti-dust and anti-vibration level for severe environment
Automatic clean function
Function:
More cooling fins in the back to increase heat area effectively, fast heat dissipation to delay long life of LEDs quality
Be able to operate in high temperature,moist environment and other severe environment like that, and won't be corroded
Can be regulated as required angle
Green environmental protection, with no lead or mercury
Lifespan is more than 50,000 hours, saving cost on changing lights
Strictly inspected and passed CE, CQC certifications
Primary Competitive Advantages:
*Unique technical innovation design
*Patent shape design with magnesium alloy
*Adopts high light efficiency led chip, and patent heat dissipation technology, feature with high light efficiency, low light decay and long lifespan
*Normally, use semi LED from Taiwan, could use LG or Cree if customers need
*Uniformly distributed light and color, very even light distribution and high uniformity, no glare to eyes
*Reliable qualities,use MEANWELL power supply,Compliant with CE standard
*Low light decay:Lumen-drop at 5% after the 1st year, 10% after 3 years and 15% after 5 years
*Energy-saving, Substantial energy-saving more than 50% compared with HPS lamp
*Easily and fast install, idea replacement of traditional lamp
*High-power factor to minimize the harmonic distortion:PF:More than 95%
Parameter | Value |
| Power Consumption | 78W |
| Input Voltage | 100-240V AC ( applied for 95-265V ) |
| Frequency | 50-60Hz ( applied for 47-63 Hz ) |
| Lamp Efficiency ( % ) | ≥90% |
| Color Temperature ( K ) | 3000K-6000K |
| Junction Temperature ( TJ )) | < 65 |
| Color Rendering Index ( CRI ) | > 70 |
| Light Effect | 80lm/w |
| Beam Angle | 150° X60° |
| IP Grade | IP65 |
| Working Environment | Temperature:-30 -55 Humidity10-90%RH(25 ) |
| Storage Temperature | -40 -60 |
| Lifespan | 50000Hs |
| Material | Die-casting |
| Shell | Toughened glass |
Program Imitation
Lumen:6700lm
Power:75W
Arrangement:Two sides,face to face
Distance of Pole:25 meters wide
Installing Hight:7 meters high
Hight of lamp:6.882 meters high
Beam Angle of lamp arm:10 °
Length of lamp arm:1.5 meters long
PRODUCT SPECIFICATIONS
| Model No. | BDZ 220/37 55 Y |
| Power | 37W |
| Dimensions | 546*222*101mm |
| N.W. | 5.5KG |
| CCT | 3000-6000K |
| Beam Angle | 150°X60° |
| Installation | With pole |
| Recommended height | 4-6m |
TECHNICAL CHARACTERISTIC
| Color Temperature | Warm White | Nature White | Cool White |
| Kelvin | 2700-3500K | 4000-4500K | 5500-6500K |
| Color Rendering Index | >75Ra |
| Luminous flux(110°) | 244lm/248lm | 259lm/268lm | 270lm/275lm |
| Intensity/4m | 30lux | 35lux | 38lux |
| Power Consumption | 37W |
| Input Voltage | 100-240V AC |
| Average illumination | ≥22lux |
| Illumination evenness: | ≥0.83 |
| PF | ≥ 0.95 |
| IP Rating | IP65 |
| Operating Temperature | -40° C~+50° C |
| Lifespan | 3 YEARS |
| Equivalent | 100W Metal Halide Philips |
PACKING
| Packing | 1 PC/CARTON(BOX) |
| Carton (Box)Size | L605XW270XH145MM |
| G.W. | 6.2KG/CTN |
Street light Pole types with thin square head
4-5m height street light pole with galvanized-hot dipped,3mm-4.5mm, for 30W to 50W lamp head use.
User Instruction
Transportation & Storage:
L During transportation, severe mechanical impact, solarization & drench should be avoided;The fixture could not be placed upside down, strongly against throwing, rolling and hard press.
L Storage warehouse should be dry, clean and droughty, No corrosive medium, ambient temperature should be around 0-40ºC, keep away from fire and heat source.
Open Package and Inspection:
L Before you open the package, check if there's any damage of the carton.After opening the carton, please check the enclosed technical data sheet such as User Manual etc.And confirm all the accessories are safe and sound.
The dos and don'ts:
1) Read the Instruction carefully before using the product.
2) Before installation, make sure the fixture and all accessory are perfect, no damage.
3) Before installation, must switch off the power grid, live line work is strictly prohibited.
4) Handle with care & Make sure Wiring is correct.
5) To assure LED Module lifespan, please do not change the power supply by yourself.
6) To assure safety of power supply and better effect of lighting protection, earth wire of Power supply and Power grid are well connected.In case of no power grid earth wire, the power supply earth wire should be connected with the lamp post.
7) This is maintenance free product, in case of maintenance is need, please contact us.
8) After installation, please confirm the fixture was fixed firmly to the lamp post.
Common faulty and solution
If the fixture don't work, please check whether the power supply is connected and the switch is turned on.
If the fixture always turns on and off, please check whether the power supply is not connected well or loose.
Notice:If the solutions above still don't work, please contact the expert on fixture to repair it.
* If any question, please consult the engineer holding the qualified certificate.
Attention and Cautions
ATTENTION
THE USE OF CORROSIVE CHEMICALS OR SOLVENTS MAY DEGRADE THE HOUSING FINISH AND OR FINISH PROTECTION.
Suitable environmental temperature:-40ºC~50ºC, Humidity:0~95% ,or it will be effect the life span of the lamp.
We are not responsible for damages caused by constant power supply, which is not provided by our company.
Installation during rainy days is not recommended.
CAUTION
L Do not connect the chain to the supply while it is in the packing unless the packing has been adapted for display purpose.
L Disconnect from main power supply prior to installation,Ensure the fixture is properly grounded.
L Do not use rough stuff or cleanser product cause it will damage the crust;Meanwhile, don't wash the product using high-pressure water.
L The System includes irreplaceable spares and the maintenance service is unavailable.Please abandon it if the spare is damaged.
L Installation and maintenance of the fixture must be carried out by qualified technicians and ensure all the work is after cut the power supply to avoid accident.
L Suggest end-user fix arrester in the position of connect.
L All screws must be locked up very well to ensure all the parts connect tightly.
L Risk of fire!Risk of electric and electrical shock.WARNING Don't replace external soft cable or cord;LED light scrap if wire damage;LED Non-replacement.
L Please contact suppliers for the most up to date user information.If any change, please understand not noticing separately.
* When the fixture arrives at his life time, please carefully recycle it, or you can ask for the advice about the recycle from the local related institution or retailer.
Founded in 2009, Wuhan Sunshine BRT New Energy as the biggest high power LED manufacturer in Wuhan City, Hubei Province in China have over 200 employees and 2000 square meters industrial park.
Organized by a strong team from Taiwan. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series composed of LED street light, LED high bay light, LED tunnel light and LED high mast. We are professional on High Power LED Light design and solution with high quality private and aluminium magnesium alloy module. Our main series is LED street light, LED high bay light, LED tunnel light and LED high mast. The other part is commercial LED light.
We possesses various qualifications and certificates, such as National Engineering Qualification, National EMC License, CQC, CE, CB, KC, SAA, C-tick, LCP and others which have been successfully accomplished numerous of major projects in the domestic and international realms with flying colors. We have many customers all around the world and also professional on industry project and real estate project.
We have many customers all around the world and also professional on industry project and real estate project.
Our company improves products quality constantly to benefit the customers. Additional, it pays great attention to product reliabilities, safety and environment requirements. Worled keeps innovating developing new products techniques to maxmize values for the customers, bright the world and energy-saving in the world.
Our company supplys different kinds of LED lighting products. High quality and favaroble price. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price. We are an ISO9001: 2008 registered manufacturer, producing 50W-200W LED high bay light of high quality, we guaratee our product for 3-5 years.
Wuhan Sunshine BRT New Energy's LED Outdoor light series is an amazing combination of technical innovations, including breakthroughs in electronics design, mechanical design, and thermal management. The core of the innovation is a new way to generate white light with LEDs to perfectly replacing the traditional HPS fixtures. Special features:
*Unique secondary optical design
*High Color rendering index
*High light efficiency
*Excellent thermal control
*Reliable qualities, use Meanell power supply, Compliant with CE standard
*Light color uniform
*Energy-saving, environment-friendly
*Easily and fast install, idea replacement of traditional lamp
*Long lifespan, Warranty: 3-5 years
*Low maintenance costs
