Home LED Light Products 70% Energy Saving LED Street Light (180W)

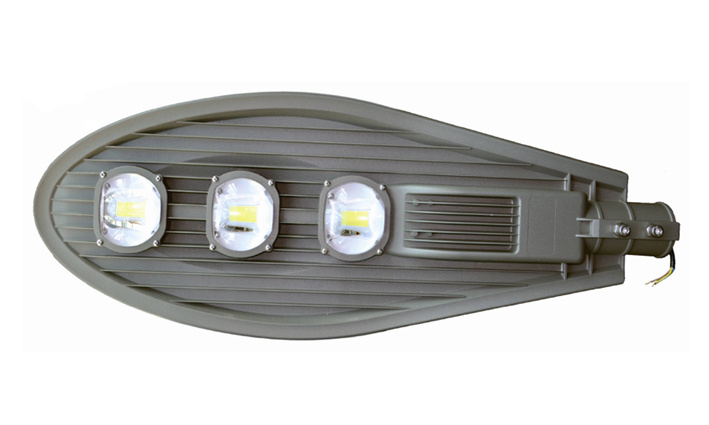

70% Energy Saving LED Street Light (180W)

70% Energy Saving LED Street Light (180W)
Price: US $ 195/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 50/Piece
Pay Type: T/T,Western Union
LED COB Specification
1,  With reasonable structure, beautiful appearance, resistance to heat and humidity, good sealing performance.
2,Light source efficiency exceeds 120lm/W, the luminous efficiency is high, the vision is vivid, flicker free, no glare.
3,Excellent heat dissipation design,with high thermal conductivity material, light source can be used continuously for 50000 hours, the use of life for more than 10 years, no need to change the light source.
4,All power supply with high quality components, the efficiency can be up to 90%, save energy as high as 70%.
5,The lamp is convenient to install and is stable and reliable.
6Environmental protection and energy saving without pollution, high stability. Realize the true meaning of the green environmental protection lighting.
                                      Electric performance parameters
NO.ITEMUNITDATA
1Input voltageVAC220V
2Frequency rangeHz50-60
3Rated powerW180W +/- 5%
4Power factor
 ≥0.95
5


6


7


                                        Optical performance parameters
NO.ITEMUNITDATA
1COB Luminous efficiencylm/W120(6000K~6200K)
2The whole lamp rated luminous fluxlm18900(6000K~6200K)
3Illuminationlux
4Color temperatureK6000K~6200K
5Color rendering indexRA≥70
6Light distribution curve
Non symmetric(Bat wing)
7Whole street lamp light effectLm/W105(6000K~6200K)




                                              Other performance index
NO.ITEMUNITDATA
1COBChip junction temperature(Tj)ºC60ºC±10%(Ta=25ºC)
2Working temperatureºC-30ºC~ 50ºC
3Working humidity%10-90
4Storage temperatureºC-10ºC~85ºC
5Service life (theoretical data)Hrs 50,000Hrs
6Protection levelIP67
7SIZEmm880*340*120mm
8Weight (net weight)Kg5.5
9Hole sizemm/
10COB QUANTITYpcs3


Prod Model: 180w led street light
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power Supply: AC
Color Temperature: Pure White
Lamp Body Material: Aluminum Alloy
Application: Garden
IP Rating: IP67
Certification: RoHS
Input Voltage: 220v
With Light Source: With Light Source
Power: 180W
Our company have professional manufactory for transformer parts: Ferrite core, bobbin.

We have more than ten years experience for export electronics component. There are reliable professional suppliers team for integrated circuits (IC), transistor, relay, current transformer and other electronic parties.
