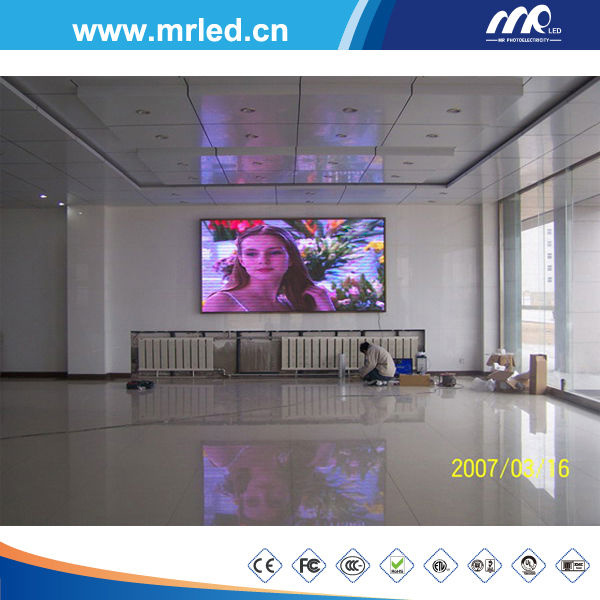

7.62mm indoor LED display screen/rental led display (305*366mm, IP31):
Packaging Detail: 6 cabinets in 1 flight case
Delivery Detail: 15~20working days
Specifications:
1.Fast set-up and tear-down
2.High contrast, black LED
3.Light weight cabinet at 11kg/cabinet
4.Wide viewing angle
5.Seamless splicing
Basic introduction - Indoor P7.62 Rental LED Screen Display:
> For real 7.62mm pixel pitch, producing truly amazing and stunning HD quality images.
> 17222 pix/m2 pixel density
> Black faced LED SMDs for rich blacks and better contrast
> Full-HD Processing with DVI, VGA, HD-SDI inputs
> Lightweight at just 11kg per cabinet
> Working state indicators at cabinet backside, showing each cabinet working state without opening the rear cover.
> The ribs strengthen the construction of cabinet frame, and also can be used as carry handle.
> Could be made to be waterproof or as dance floor.
> If with angle regulators on each cabient, the screen could be in shape of concave and convex.
Company Information:
> Shenzhen Mary Photoelectricity Co., Ltd (MR LED)
> Set up at the ear of 2006
> National level high tech enterprise, intergrating R&D, production, sales and engineering service.
> Register capital: >6 million USD
> Factory area: 30,000 square meter, 6 storey building.
> Over 13 assembly lines from Japan and USA, over 6000 sqm per monthly output
> Quality control: ISO9001:2008
> China Top 5 LED Display Well-Know Brand 2014&2015
Item | 6.25mm indoor LED Mesh screen,stage screen (ISO9001) |
| Pixel Pitch: | 6.25mm | 7.62mm | 10.4mm | 12.5mm | 20mm |
| Driving Method : | 1/10 | 1/8 | 1/5 | 1/4 | 1/4 |
| LED type : | SMD3528 |
| Brightness: | ≥1300cd/m2 | ≥1300cd/m2 | ≥1300cd/m2 | ≥1300cd/m2 | ≥1300cd/m2 |
| Pixel density : | 25600pix/m2 | 17222pix/m2 | 9246pix/m2 | 6400pix/m2 | 2500pix/m2 |
| Viewing angle: | 120°H and 120°v |
| Module Size(W*H): | 250*250mm | 305*366mm | 208*416mm | 200*400mm | 320*320mm |
| Cabinet Size(W*H*D): | 500*1000*68mm | 610*732*65mm | 416*832*50mm | 400*800*50mm | 640*640*50mm |
| Cabinet weight: | 9kg | 6kg | 6kg | 6kg | 6kg |
| Cabinet Material: | Aluminum sheet metal |
| Avarage Power Consumption: | 300 W/m2 | 28 W/m2 | 240 W/m2 | 210 W/m2 | 100 W/m2 |
| Max Consumption : | 680 W/m2 | 560W/m2 | 490 W/m2 | 430 W/m2 | 200 W/m2 |
| Refresh rate: | ≥900HZ |
| Color Depth: | 14bit |
| voltage : | 200-240V |
| IP Rrating: | IP31 |
| Operating temperature : | -20-60 degree |
| Storage temperature: | -40-70 degree |
| Operation humidity: | 10-90% |
| Storage humidity: | 10-90% |
| Life span (hrs): | ≥50000 |
| MTBF (hrs) : | ≥3500 |
| Control system: | Linsn/Nova |
| Source compatibility (with video processor): | YC, VGA, DVI, YUV, SDI, RGB,CVBS,GD-SDI |
| Compliant standard: | CE,FCC,RoHS,ETL,CCC |
We are the leading OEM manufactures of LED Display Screens in China, which is professionally engaged in the production of Indoor, Outdoor and Semi-Outdoor LED Display screens in Single, Bi-color and Multi color for different markets such as Malls and Plazas, Traffic guiding signs, Entertainment and Stage, Shop sign boards and huge Media Bill Boards, Security Monitors etc. We are an ISO 9001: 2000 company, CE certified, RoHS certified, export licence holders.
Shenzhen Mary Photoelectricity Co., Ltd (MRLED) is a subsidiary of state-owned listed company-- Fujian FURI Electronics Co., Ltd. And was established in 2006 April, which the registered capital is 100 Million RMB. MRLED is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays.
Experienced nine years of development, nowadays MRLED own its factory workshop area about 30, 000sqm, monthly capacity is 8000sqm, the number of employees more than 800. Company has the international first-class technology development talents and advanced production equipment, a comprehensive standardized management, product technology and quality is in the forefront between the similar products in domestic market. Also enjoy good reputation in the global market.
MR LED' products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.
In past 8 years, MRLED service team almost traveled in all over the world, always uphold the core values of "Professional, Team, Integrity, Effectiveness, Communication", provide professional, caring, attentive after-sales service for global customers. Nowadays, MRLED's products selling to over 400 cities in autonomous regions and 34 provinces in China by virtue of high reliability and cost performance, earned thousands of customers, and also had built long term business relationship with the more than 90 countries' customers, like in USA, Germany, Spain, Portugal, Thailand, Korea, Poland, Italy etc. MRLED with its reliable quality, excellent service and good faith strives for realism style, won the user's high praise from all walks of life. No matter what's the major events & Competition venues in domestic and overseas, which like in the Guangzhou Asian games, the Shanghai world expo, each big TV station in domestic, railway stations, world beach volleyball tour, and Sydney autodrome, etc. All of them have a figure of MRLED.
