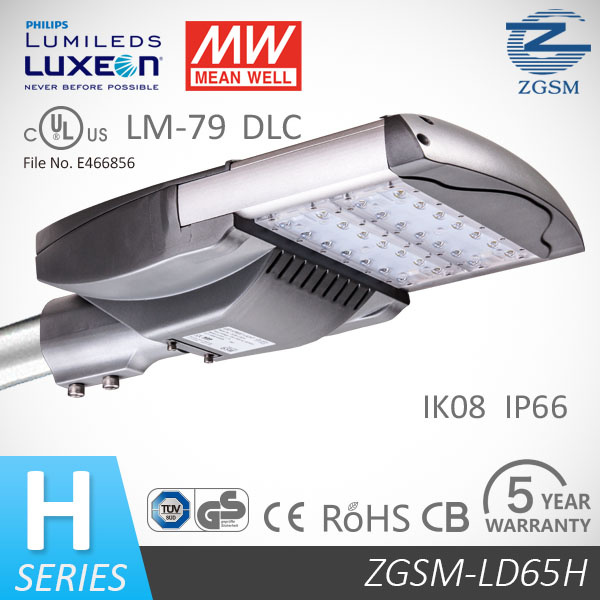

ZGSM H series high power LED street lights are designed for use in city streets, municipal roadways, bridges, housing projects, public parks, parking lots, yards and gardens, and other settings with needs for high-brightness general illumination during the night time.
All of ZGSM's long life LED luminaires are designed to meet the most demanding specification criteria while offering maximum energy savings, reduced maintenance costs, and a superior quality of light.
Features:
1. LED's maintain flux is up to 110 lm/w
2. Significant energy savings
3. Instant on/off
4. Maintenance free
5. Mercury free
6. Superior light quality
7. No UV
8. Simple installation
9. Wide input: 90 - 264V AC
10. Resistant to shock and vibration
11. Temperature compensation technology for long life
12. Copper free aluminum
13. Superior Vision-Care
Electrical Specifications:
Lamp's Power: 65W
Operating Voltage: 100-240V AC, 50/60Hz or 24V DC
Optimal Operating Temp: -30 C to +50 C
Power Fact(PF): > 0.9
Power Supply Efficiency: > 90%
Operating Humidity: 10% to 90%
Photometric Specifications:
LED Luminous Flux: 5850 lm(3800-4100K); 6175 lm(5000-6300K);
LED Luminous Efficiency: Up to 110 lm/w
CRI: Ra >= 75
Mechanical Specifications:
IP Rating: IP65
Heat Radiator: Anodized Aluminum
Fixture Weight: 6.1 kg
Fixture Dimensions: 504 x316 x136 mm
Face: Optical Glass
Packing Information:
Packing Type: 1unit /CTN.
Packing Dimension: 555 x370 x200 mm
Packing Weight: 7.3 kg
[Warranty]
5 years Since the date of purchase.
[Warranty Terms]
1. Under the terms of this warranty, if the product have a failure occurs under normal usage within warranty period, ZGSM will provide free maintenance service based on the proof-documents and invoice(copy) of failure product.
2. ZGSM will provide paid maintenance service by under coditions within warranty.
(1). Failure or damage due to force majeure.
(2). Failure or damage due to transport or unloading.
(3). Failure or damage due to incorrectly usage or fail to comply with the User's Guide and Caution.
(4). Failure or damage due to demolition, repair, alteration without Manufacturer's authorization.
3. Please deliver the failure product by original packing for maintenance service, ZGSM will not responsible for any failure or damage in transportation if customer use non-original packing or improper packing.
4. ZGSM reserves the right for final explanation of aforesaid terms.
[Caution]
ZGSM will not responsible for any other failure or damage by incorrectly usage.
