P6 SMD 3535 outdoor die-cast rental LED display screen

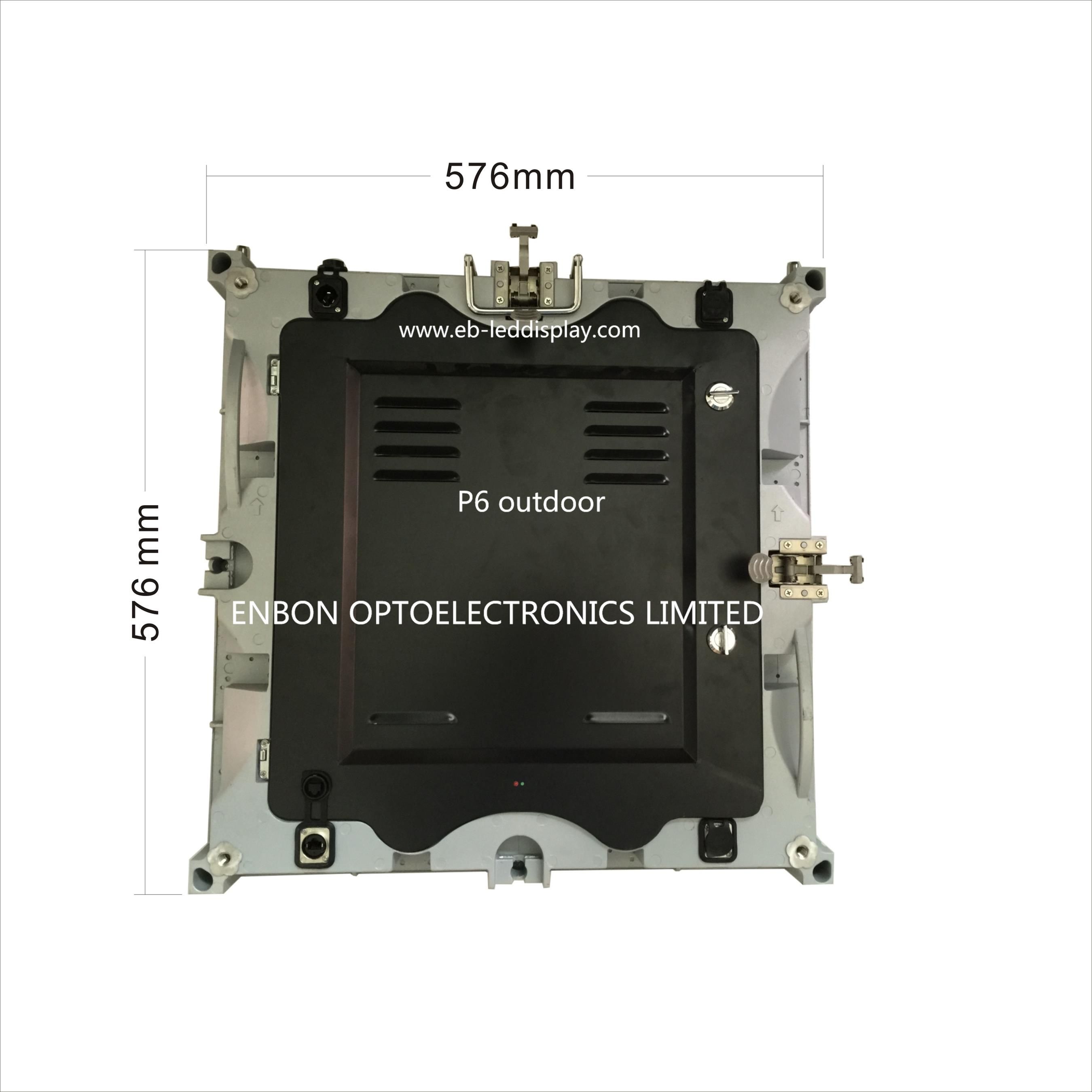

Light: Cabinet size 576mmX576mm, Weight 10 kg/pcs;
Thin: Die-cast aluminum design, high precision;
Fast: Fast locks, Easy to assemble and disassemble.
Easy: Modular design, easy assembly and maintenance.
Low: Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.
Applications: Indoor enviroments, High definition, High refresh rate, high stability, no noise, light weight and easy to assemble and dismantle.
Specifications:
High definition with an outstanding image and video quality
High refresh rate , with software adjustable, suitable for filming.
High grayscale (16 bits) with perfect visual performance.
High Contras ratio (5000: 1) with black mask and black coating technique.
Wide viewing angle (greater than 140 ° In horizontal).
Lightweight with high strengthen cabinet.
Low power consumption , more energy saving.
Fast and easy to assemble and dismantle.
High reliability and long lifespan (MTBF ≥ 5000 hours).
| Model | P6 LED display for rental outdoor |
| Pixel pitch | 6mm |
| Pixel density | 27,777 dots /sqm |
| Module size(W*H) | 288 mm(width)*288 mm(height) |
| Module pixels(W*H) | 48 dots *48 dots |
| Pixel configuration | 1Red 1Green 1Blue |
| Drive mode | constant current driving 1/8 scan |
| LED lamp type | SMD3535 |
| Cabinet size(W*H) | 576mm*576mm |
| Color scale | 65,536 degree |
| View angle(H/V) | 140/120 degree |
| Brightness (White balance) | about 5,500cd/sqm. |
| Power consumption(one cabinet) | Max:300W / cabinet , Average: 100W / cabinet |
| Operating Voltage | 90-264VAC; 47---63HZ |
| Net weight | 10Kg / cabinet |
| Operating temperature | -30°C----+60°C |
| Operating humidity | 10%-95%RH |
| Life time | ≥100,000hours |
| MTBF | 5,000 hours |
| Whole Display Flatness | ≤0.5mm Juncture |
| Frame frequency | 25-60 Hz/s |
| Refresh rate | ≥2000Hz /s |
| Control distance | 100m (without repeater), single mode fiber:20km, multi mode fiber: 500m |
| LED control system | LINSN,Nova-star,Colorlight is selectable |
| Operating system | Windows Xp / Windows 7 / windows 8 /8.1 / windows 10 |
| Protections for outdoor display | IP65 |
| Maintenance way | Rear Access |
| Accepting signal with video processor | PAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI |
ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.
All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.
Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.
Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
