Home LED Light Products 61W LED Street Light (AG-L036A)

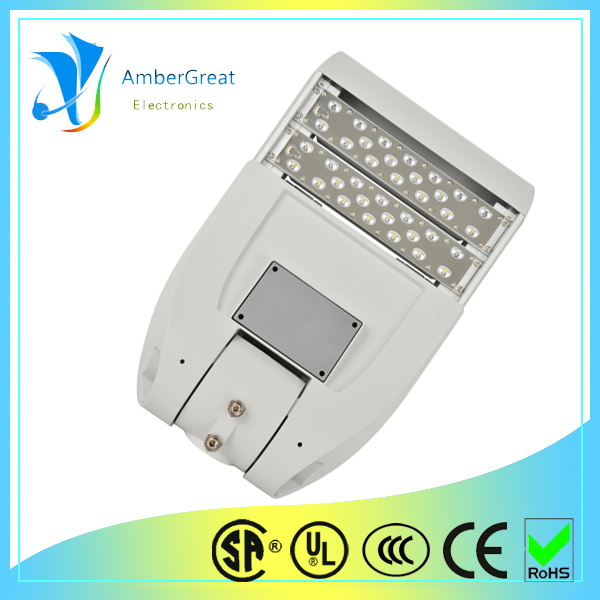

61W LED Street Light (AG-L036A)

61W LED Street Light (AG-L036A)
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T
Product Name: Aries Series LED Street Lights / Light / Lamp 60W with Radar sensor / CREE Chip / Wago Connector / Philips Driver, IP66, RoHS / CE Mark AG-L036A

Replacements available for existing 200W bulbs

Technical parameters:
Wattage: 61W
Input voltage: 120 to 277V AC (277 to 480V)
LED quantity: 36 pieces
Fixture light effect: 122lm/W
CRI: >75Ra
SPD: 10kV
IP rate: IP66
CCT: 5, 028 ± 283K
Delivered flux: 6, 400lm
LED drive current: 0.53A
Chip: CREE XT-E
Control system: DALI/0 to 10V/motion sensor/photocell
Installation way: Pole, arm branch
Connector: WAGO
Casing material: Die-cast aluminum casing
Size: 505 X 340 X 142mm
Lifetime: >50, 000 hours

Smart Technology Features:

Top of the line, American Made, CREE LED Chips
Programmed lenses for type I-V light distribution
UL rated Philips driver(s) in IP66 separate compartment to isolate heat (No Ballasts Required)
UL rated programmable dimmer to reduce brightness and conserve power
Radar motion sensor to increase brightness when dimming is active
Side view photocell sheltered from direct sun for on/off
Die cast waterproof IP-66 aluminum alloy casing
130 degree adjustable arm to throw horizontal light
Passive heat dissipation system. No fans to malfunction
Power factor of 0.95
Five year warranty standard
Compatible with RF lighting control systems
60, 000 hour life equals over 13 years at 12 hours per day without dimming
120-277V or 277-480V
German WEGO wire connectors
Color Rendering Index >75 (older, "traditional" style lot lights are <60)
Environmentally friendly Dark Sky Compliant
Replacements available for existing 200W bulbs
Prod Model: AG-L036A
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Wattage: 61W
Life: 50, 000h
Power Source: AC
Electric Current Type: AC
Emitting Color: White
Usage: Street
Base Material: Aluminium Alloy
Input Voltage: 120-277V
Diffuser: Don't Need
LED Chips: CREE
Certification: CE
IP Rating: IP66
Ambergreat Electronics Pte Ltd is a major LED street lamp, LED tunnel lamp, LED Flood Light and LED gas station lamps manufacturer. We have a highly professional R&D team and professional sales and services in Singapore and our manufacturing factories in Xiamen, Fujian, China. During the past ten years, Ambergreat has been keeping providing high quality and effective services for all valued customers. We keep pace with the up-to-date technology in the illumination industry, and in recent years, Ambergreat has been specializing in the LED project market especially in LED street lamp, LED tunnel light, LED gas station light and LED Flood Light.
